Description

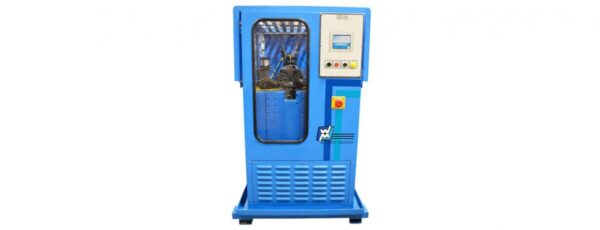

1300 Series Hydraulic Five or Six Stroke End Former Machine for up to 1.5” (38.1mm) diameter tube

Wauseon’s unique Hydraulic 1300 Series End Forming Machine has the ability to mechanically lock components and thicken the tube wall forming an integral assembly, which eliminates the need for braze or weld joints.

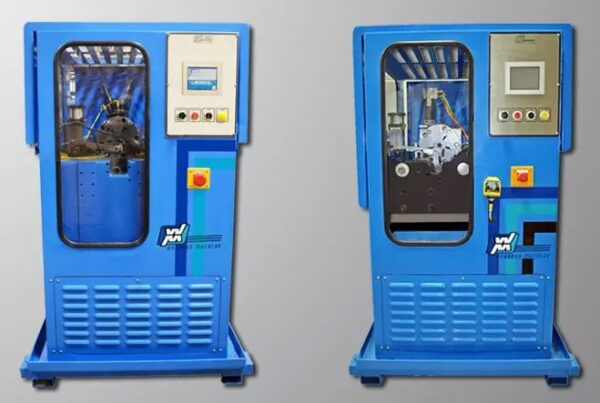

The 1385HY and 1386HY can form all types of ferrous and non-ferrous tubing and are rated up to 1.5” (38.1mm) diameter, 0.049” (1.24mm) wall.

The 1385EL and 1386EL can form all types of ferrous and non-ferrous tubing and are rated up to 1.5” diameter, 0.049” wall. Our electric machines offer benefits like shorter cycles, a better CPK, and can be equipped with a servo flag stop for quicker, more precise setups.

Standard Features:
ALL ELECTRIC servo driven ram, Multi-language graphical user interface (GUI), Precision tube stop locator, Low pressure lock-up, Auto way lubrication system

Options:
Coupling and Cage chutes, Auto load/unload systems, Light curtains, Part lubrication system, Opti-touch cycle start (shown in photo), Footswitch cycle start, Custom specified paint color, Special voltages available
