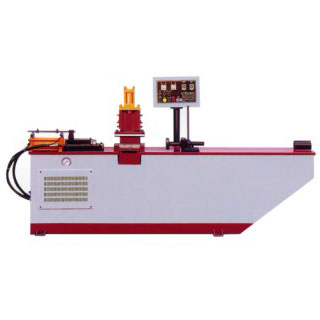

YLM Tube End Forming Machine – CR-C38

YLM Tube End Forming Machine - CR-C38YLM Tube End Forming Machine - CR-C38
YLM Tube End Forming Machine - CR-C38YLM Tube End Forming Machine - CR-C38

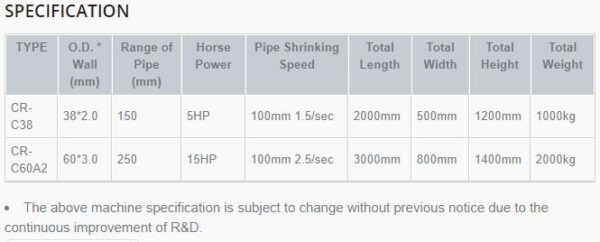

Specifications

Make

YLM

Description

Suitable for the shrinking of various metal pipes with different material and different shape. Forming shapes can be convex, concave, sectional, long & flat, square, V-shape, open elbow, flat elbow etc. The design of the tooling varies with work-piece & customers’ requirements.

Conventional models – tube end-forming machine, pipe end forming machine

  • Suitable for the shrinking for various metal pipes with (1) different material. (2) different shape.
  • All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.
  • Equipped with emergency stop device. Both manual & automatic operations are available.
  • Shrinking stroke 150 m/m. The length of working piece is 4,500 m/m Max. (but no limit on the minimum length).
  • An additional feeding system can be added to the machine. The operating security is greatly increased because the operators just do the unloading & collecting job of finished pipes.
  • Forming shapes can be convex, concave, sectional, long & flat, square, V-shape, open elbow, flat elbow…etc. The design of the tooling varies with work-piece & customers requirements.
