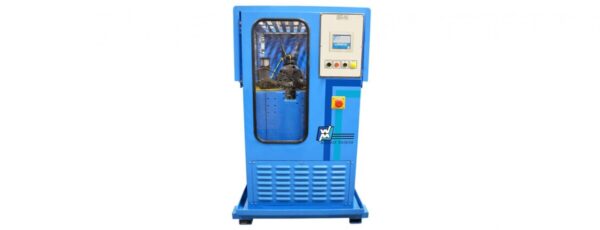

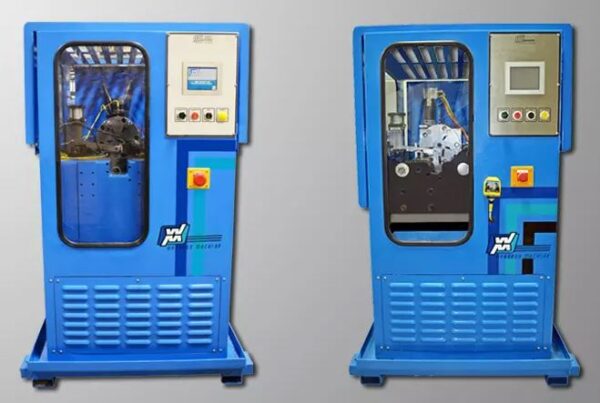

WAUSEON – 1300 Series Electric Five or Six Stroke End Former Machine
Specifications
| Make | WAUSEON |
|---|---|
| Series | 1300 |
Description
WAUSEON – 1300 Series Electric Five or Six Stroke End Former Machine
1300 Series Electric Five or Six Stroke End Former Machine for up to 1.5” (38.1mm) diameter tube
Standard Features:
- Multi-language graphical user interface (GUI),
- Precision tube stop locator,
- Low pressure lock-up,
- Self-contained hydraulic unit,
- Auto way lubrication system
Options:
5” and 6” bore hydraulic package, Coupling and cage chutes, Auxiliary lockup/Secondary Clamp, Auto load/unload systems, Light curtains, Part lubrication system, Opti-touch cycle start, Footswitch cycle start, Custom specified paint color, Special voltages available.
Specification:
- Ram Force: 12.5 tons
- # of Ram Strokes: 5, 6
- Cycle Rate: 3.7 to 16 seconds
- Max. Clamp Opening: 2″
- Tube Clamp Force: 25 tons
- Air Requirements: 80 psi, 1 cfm
- Electrical Requirements: 230/460 VAC, 3 Phase, 60 hz FLA 58/29
- Weight: 6500 lbs
- Ram Cylinder (bore): 4”
- Working Pressure / Max. Pressure: 1200 / 2000 psi
