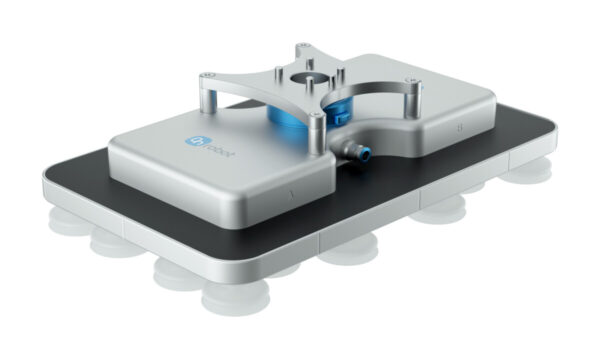

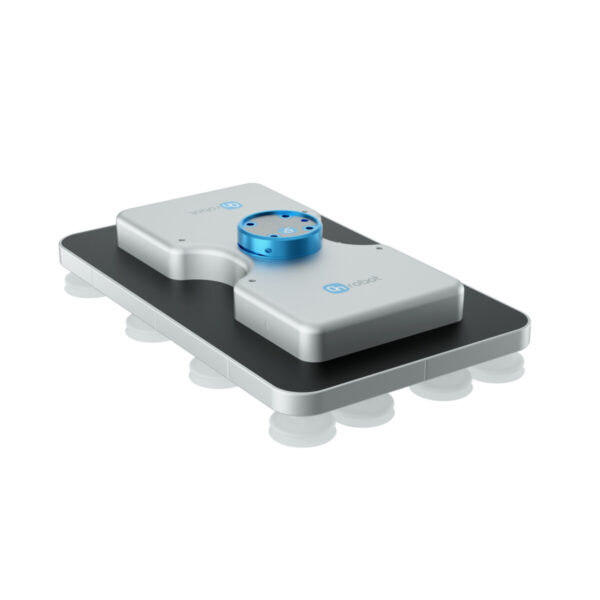

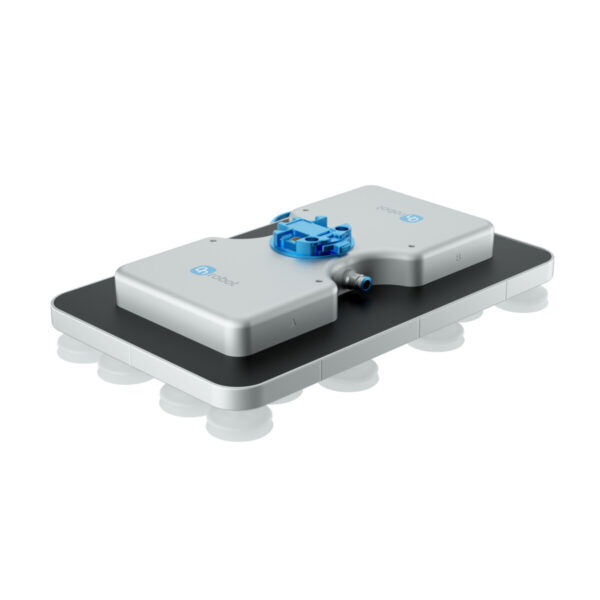

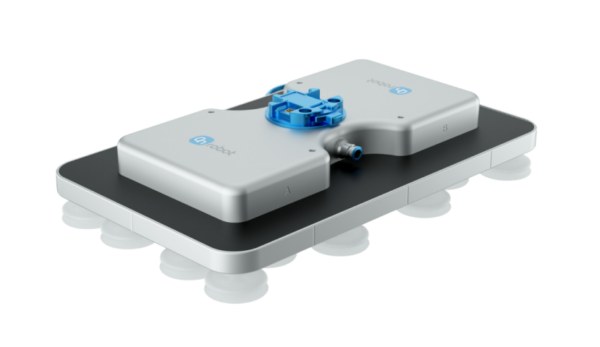

OnRobot – VGP30 High-payload pneumatic vacuum gripper
Description
OnRobot – VGP30 High-payload pneumatic vacuum gripper
- Powerful and robust vacuum gripper for palletising boxes—including cost-saving, thinner cardboard and handling irregular shapes and porous surfaces
- Ready for immediate deployment out of the box, including all needed hardware and software for all leading robot brands
- Intelligent vacuum control automatically adjusts to any box or interlayer, minimising air usage and energy costs, ideal for high-mix palletising applications
- Multichannel capability to provide failsafe and flexible operations
Why VGP30 Vacuum Gripper?
- Robust Performance: Designed specifically for heavier payload palletising applications, it ensures durability and efficiency even with heavy loads and diverse materials
- Cost-Efficient Versatility: Intelligent vacuum control adjusts automatically to different box sizes and interlayers, optimising air usage and reducing energy costs for high-mix production environments.
- Enhanced Customisation Options: With two independent vacuum channels in one gripper, it offers greater adaptability and throughput, making it ideal for operations that require swift, flexible handling of various items.
The VGP30 advantages and features
OnRobot VGP30 is a high-performance, pneumatic vacuum gripper specifically designed to automate demanding palletising and material handling applications with payloads up to 30 kg (66.1 lbs).
Utilising external air supply, the VGP30 delivers a powerful air flow capacity of 440 L/min. With an intelligent vacuum control system that makes it ideal for high-mix, demanding applications. With all necessary hardware and software included, the VGP30 offers true plug-and-play deployment for rapid integration with major robot brands, enabling manufacturers to start operations right out of the box.
The gripper’s dual-channel system allows independent control of its two vacuum channels, so users can tailor its powerful suction to suit diverse tasks, ensuring both precise and efficient handling.
The VGP30’s intelligent vacuum control system automatically adjusts the vacuum flow based on the required levels defined for each application, delivering consistent performance across multiple items in a single operation.
This adaptability eliminates the need for multiple gripper setups and minimises setup time. With its high-powered vacuum flow, the VGP30 can easily handle porous and irregularly shaped objects, making it a versatile choice for various packaging materials and further streamlining material handling operations.
Additionally, the VGP30 offers an optional continuous monitoring feature that provides real-time feedback on air flow.
In the event of an interruption, the system alerts users with an instant pop-up notification in the gripper software, allowing for a quick response and minimising downtime.
Despite its power, the VGP30 has a lightweight, efficient design, weighing only 3.1 kg.
This combination of strength, flexibility, and optimal design makes the VGP30 a robust and adaptable solution for manufacturers looking to optimise their palletising and material handling workflows.
- HIGH PAYLOAD: The gripper can lift up to 30 kg, handling a variety of materials.
- Ideal for palletising: Thanks to its intelligent vacuum control that adjusts to various box sizes and layers.

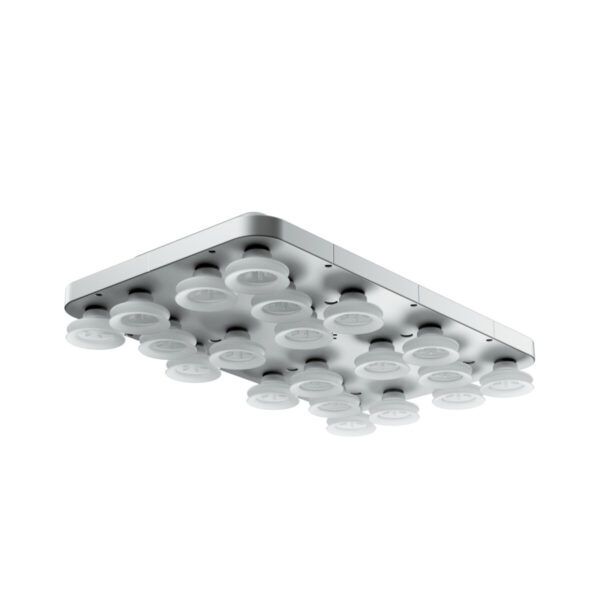

- FLEXIBLE AND CUSTOMIZABLE: The suction cup options can be easily swapped, and arms can be added or replaced to meet application requirements.
- AFFORDABLE AND VERSATILE FOR MULTIPLE APPLICATIONS AND MATERIALS: With its high-powered vacuum flow, the VGP30 can easily handle porous and irregularly shaped objects
