Description

For applications where mechanical and pneumatically connection is needed, the manual tool changer is a good option.

It is possible to upgrade to automatic tool changing in the future.

Product Features and Specifications

  • Fast – Works at high speed and precision
  • Accurate – With the range of five hundredth of a millimeter in all directions and angles
  • Ease of use – Easy to deploy and redeploy with smart mechanical design
  • UR cap available – Easy installation and hereby high security
  • Handling payload – 50 kg
  • Connection
    • Pneumatic 2xG 1/8″
    • Electric M8 8 pin 24 V 1 AMP
  • Weight total  –180 g

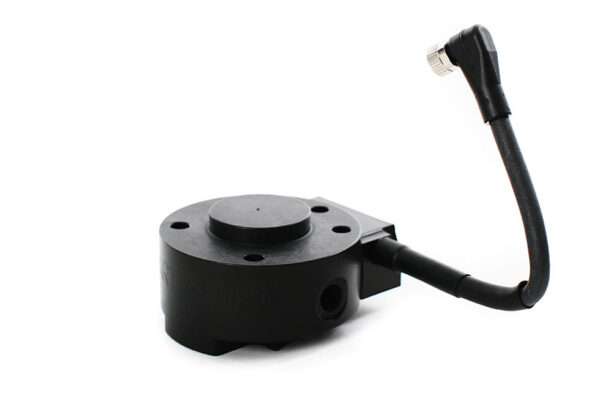

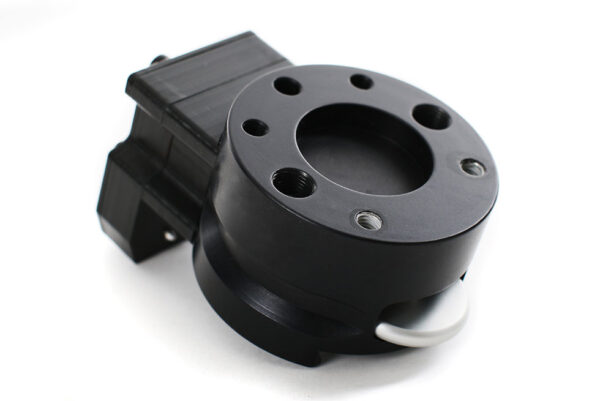

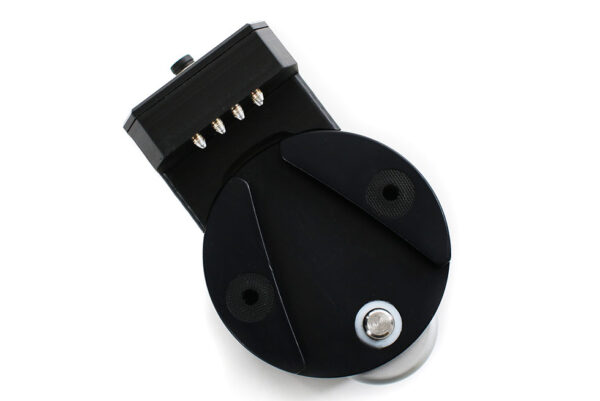

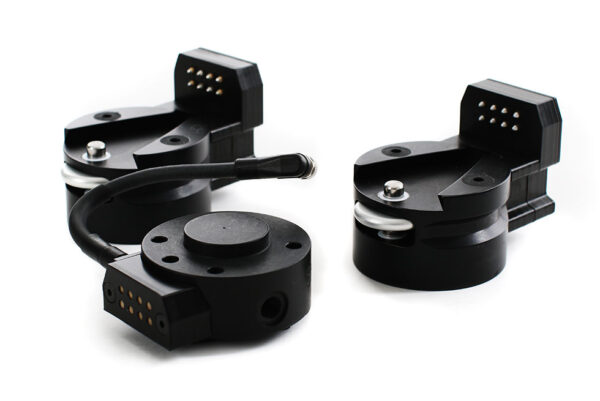

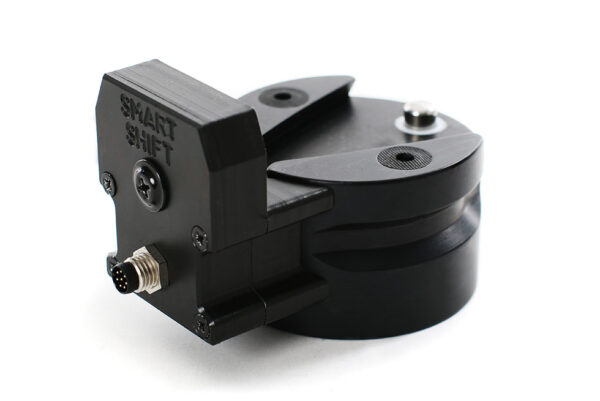

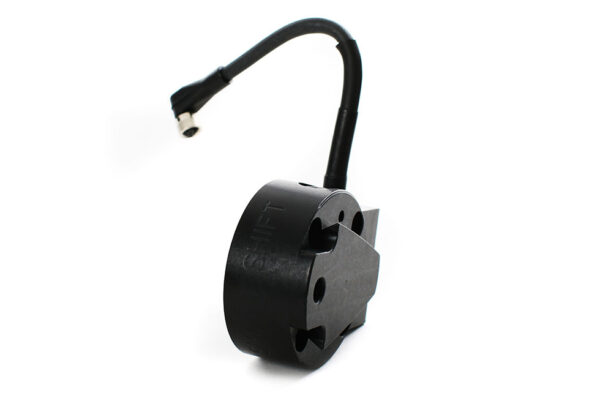

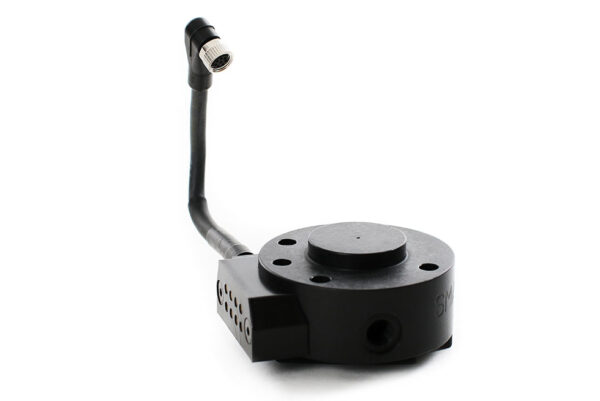

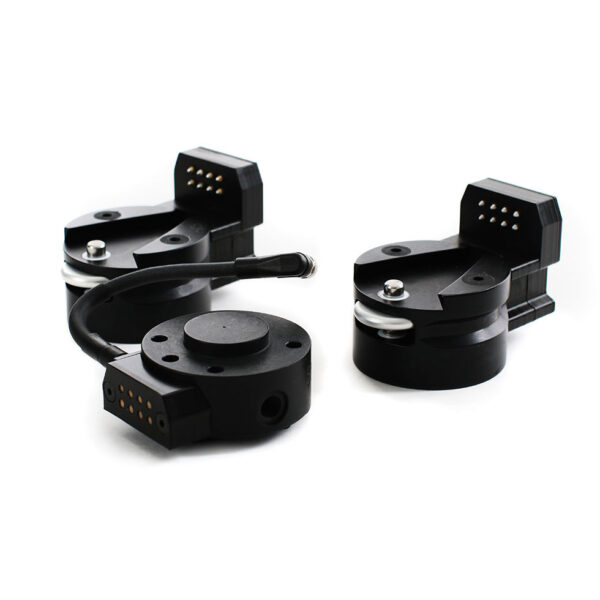

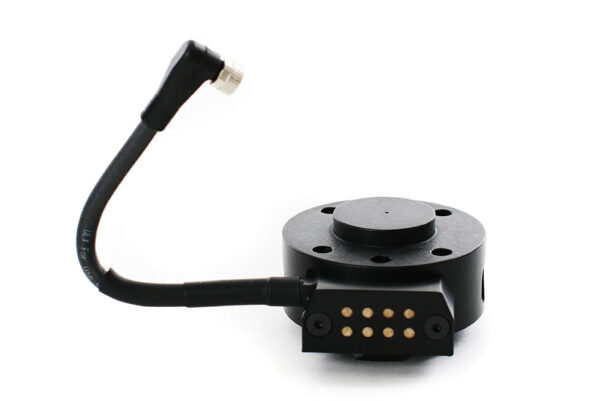

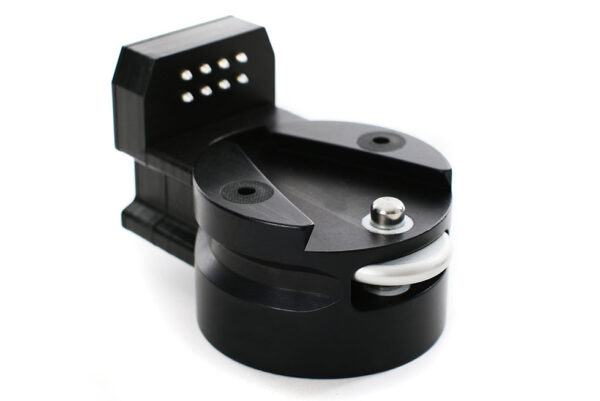

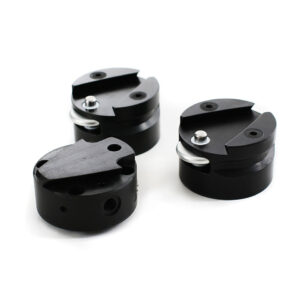

The pneumatic and electric clutch is a good option for tool changing in all applications where you need electric and pneumatic connection. To achieve the full autonomous tool changing system, you can upgrade by adding tool pockets. The pneumatic and electric clutch consists of one robot master electric and two tool holders electric.
