Smartshift Robotics – Automatic pneumatic clutch set

Smartshift Robotics - Automatic pneumatic clutch setSmartshift Robotics - Automatic pneumatic clutch set
Smartshift Robotics - Automatic pneumatic clutch setSmartshift Robotics - Automatic pneumatic clutch set

View Brochure

Description

For applications where tool changing is a necessary for changing applications, the automatic tool changer is a good option. This clutch enables mechanical, pneumatic and optionally also electric connection. It includes tool pockets with the possibility to exchange tools seamlessly and work on multiple tasks without stopping.

Product Features and Specifications

  • Fast – Works at high speed with high stiffness
  • Accurate – With the range of five hundredth of a millimeter in all directions and angles
  • Flexible – Possible to work on multiple tasks in same production line
  • Ease of use – Easy to deploy and redeploy with smart mechanical design
  • UR cap available – Easy installation and hereby high security
  • Handling payload – 20 kg
  • Connection – Pneumatic 2xG 1/8″
  • Weight total –2050g

AUTOMATIC PNEUMATIC CLUTCH

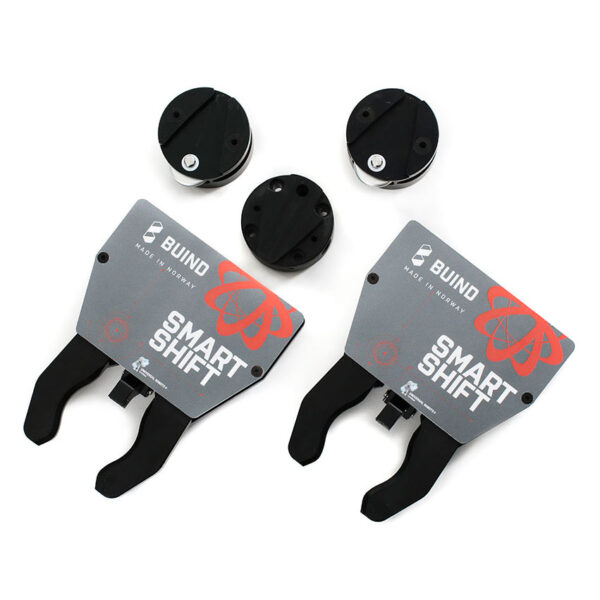

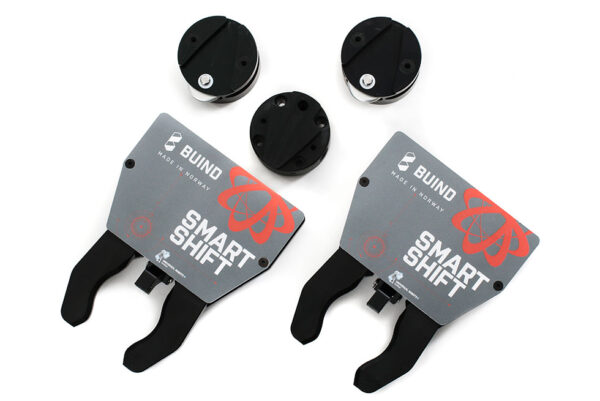

The automatic pneumatic clutch is the most popular SMARTSHIFT set. The clutch provides automatic mechanical and pneumatic connection. With the automatic pneumatic clutch, it is easy to change tools autonomous and you have the option to upgrade to electrical connection. To upgrade for an electric solution, you have to purchase SMARTSHIFT cable electric connector M8. The automatic pneumatic clutch consists of one robot master, two tool holders and two tool pockets.
