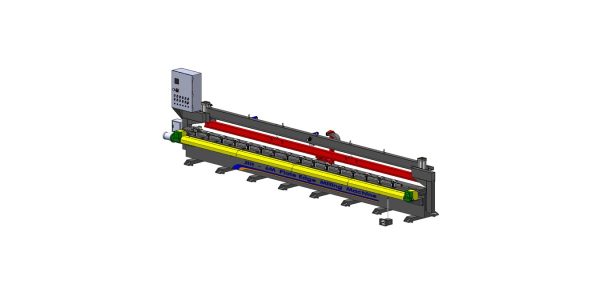

JIH-6M – Milling Machine
Specifications
| Make | JIH |
|---|---|
| Model | 6M |
Description
JIH-6M – Milling Machine

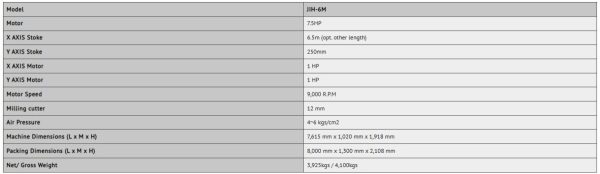

Product Specification
| Model | JIH-6M |
|---|---|
| Motor | 7.5HP |
| X AXIS Stoke | 6.5m (opt. other length) |
| Y AXIS Stoke | 250mm |
| X AXIS Motor | 1 HP |
| Y AXIS Motor | 1 HP |
| Motor Speed | 9,000 R.P.M |
| Milling cutter | 12 mm |
| Air Pressure | 4~6 kgs/cm2 |
| Machine Dimensions (L x M x H) | 7,615 mm x 1,020 mm x 1,918 mm |
| Packing Dimensions (L x M x H) | 8,000 mm x 1,300 mm x 2,108 mm |
| Net/ Gross Weight | 3,925kgs / 4,100kgs |
