Description

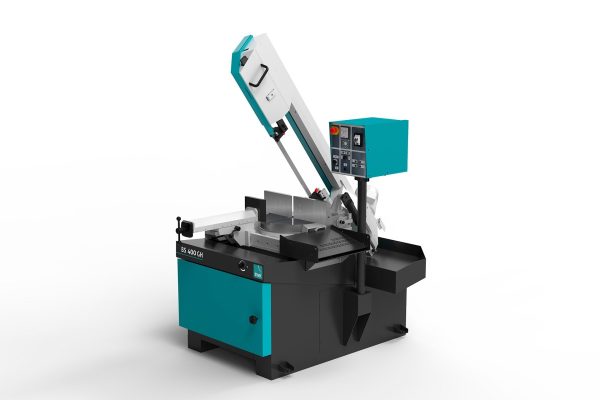

BS 400 GH is a versatile gravity saw , easy to use. Equipped with autonomous descent system (GH)the machine is an ideal tool for maintenance cutting and for small and medium series production both in the world of mechanics and carpentry. BS 400 GH can cut up to 45 ° on the right and up to 60 ° on the left.

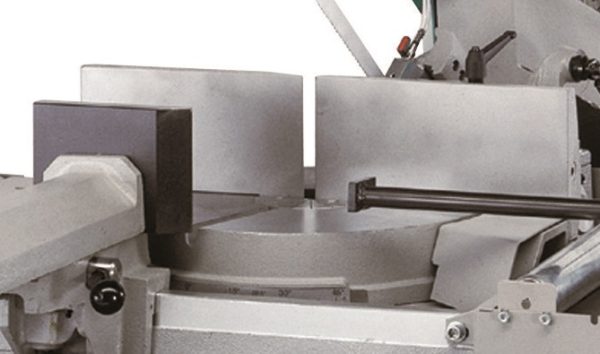

Wide working area: BS 400 GH is an easy-to-use professional tool: the wide working area (with rotating surface integral with the arch to avoid incisions) is mounted on a 460mm diameter roller bearing and preloaded thrust bearing.

Vice: BS 400 GH is equipped with a vice on adjustable guides, sliding transversally to the work surface with quick approach..

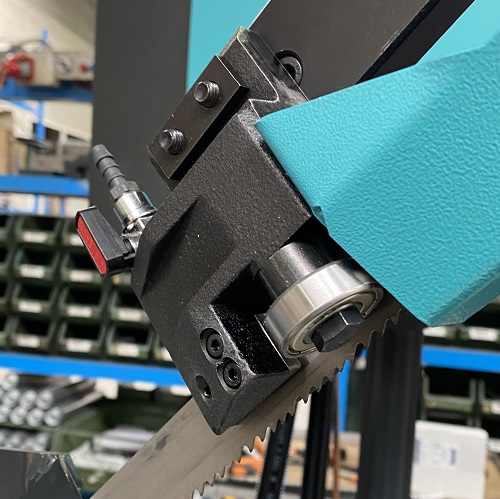

Blade guides: Blade guide pads with hard metal inserts and additional bearings for better blade alignment.

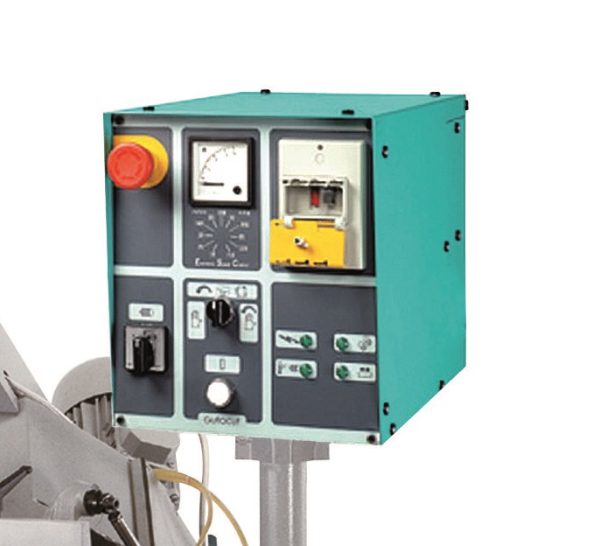

Selector: BS 400 GH is an autonomous descent machine and has a selector for manual approach (fast or adjustable braked) or autonomous cutting with adjustable descent and stop by means of a microswitch at the end of the cut..

Cleaning of the blade: BS 400 GH comes standard with a blade cleaning system by means of a motorized brush with nylon inserts; it is moved by the rotation of the driving pulley.



TECHNICAL INFORMATION

Cutting capacity at 0 °Round: 310mm
Square: 280mm
Rectangular 400x250mm
Cutting capacity at 45 ° leftRound: 280mm
Square: 270mm
Rectangular 300x220mm
Cutting capacity at 45 ° rightRound: 280mm
Square: 270mm
Rectangular 300x220mm
Cutting capacity at 60 ° leftRound: 215mm
Square: 200mm
Rectangular 200x200mm
Cutting capacity at 0 ° for full (C45))250mm
Blade motor1.5/2.2 KW
Blade motor with ESC speed variator ESC2.2 KW
Blade speed37-74 m/min
Blade speed with ESC speed variator ESC18-110 m/min
Blade size4020x34x1.1mm
Height of the work surface940mm
Weight637kg
Dimensions1530x1787x2240mm
