Description

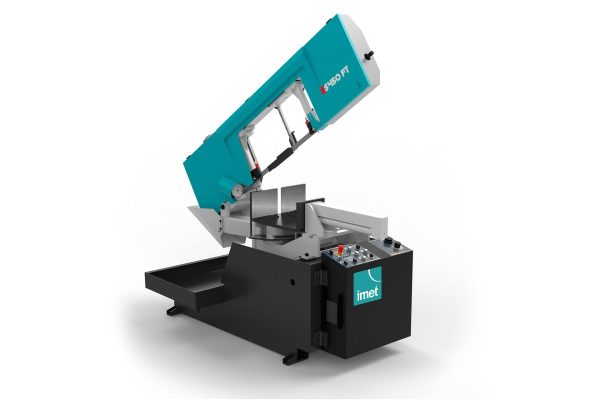

KS 450 FT is the compact version of KS 450, IMET semi-automatic sawing machine for cutting pipes, beams, profiles and for steel constructions. The machine cuts at angle from 0 ° to 60 ° right and left.

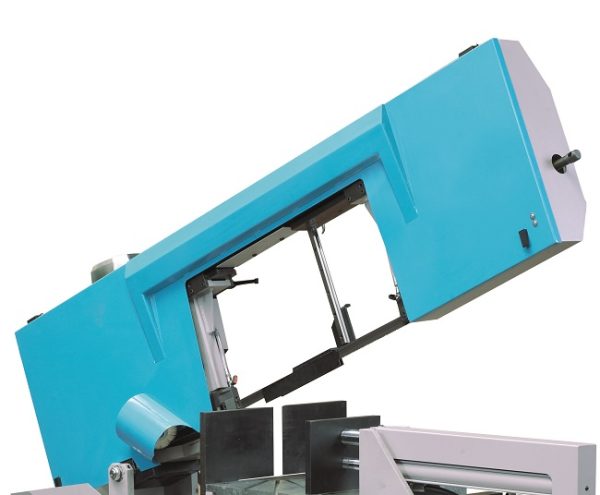

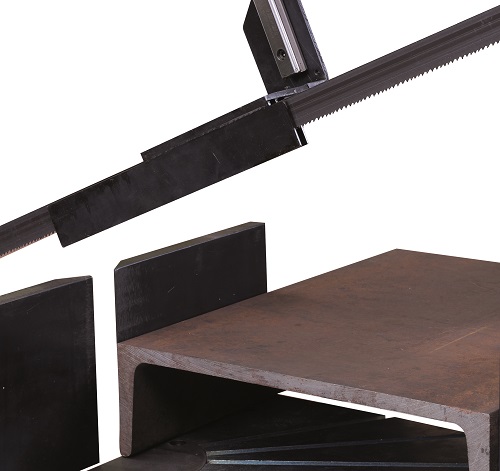

Steel sawframe: Ks 450FT is equipped with rigid welded steel tubular section arc and 360mm pulleys. Rotation of the arc is done on prealoaded bearing to ensure arc rotation without friction and easier. The optimal alignment of the blade is guaranteed by the blade guide with inserts in carbide and additional bearings.

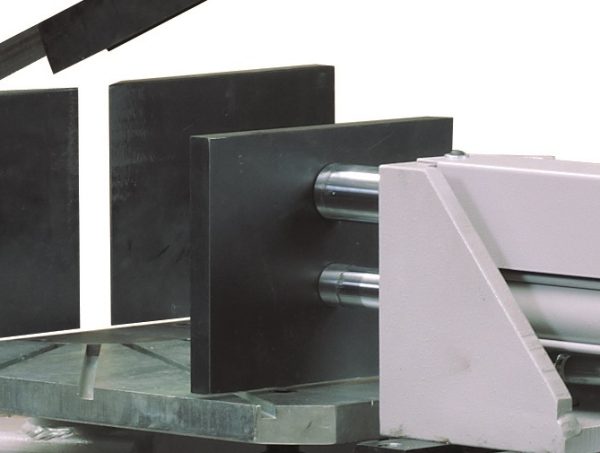

Vice: Sliding transversely on the work surface with locking and hydraulic approach, complete with reducer of pressure. Total stroke: 460mm.

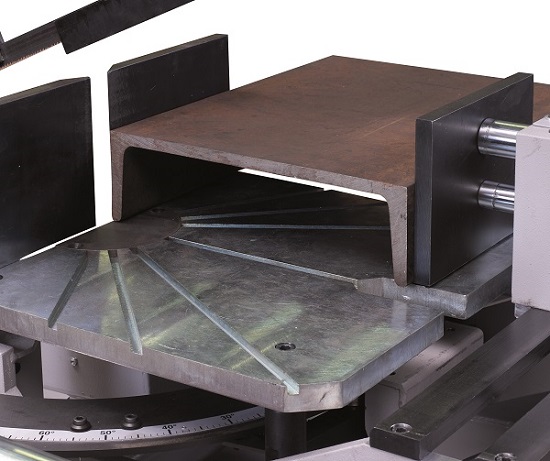

Working table: The work surface of the KS 450 FT is wide to be able to support all the material; the table is equipped with a system automatic stops at 45 ° left, 0 ° and 45 ° right. All other inclinations are viewable through the graduated scale on the cutting table.

Material detection device: To facilitate the approach of the blade to the material KS450FT mounts a device for detection automatic cutting start and end point.

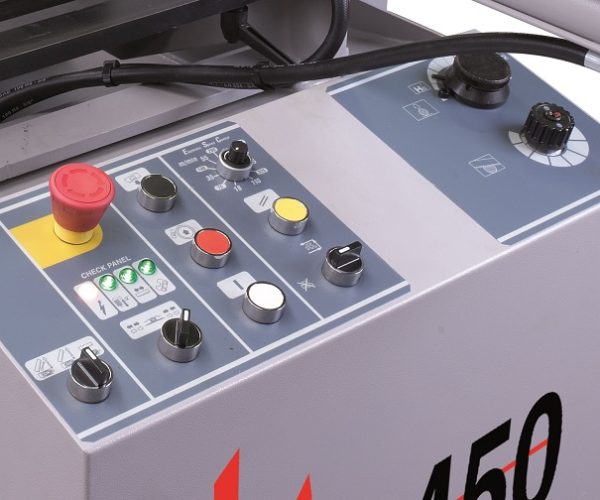

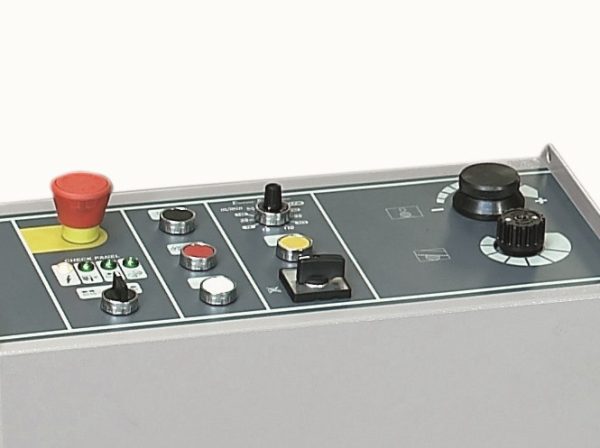

Control panel: KS 450 FT s equipped with a control console attached to the column with a control LED for checking blade tensioning, blade guard, motor thermal block and electric voltage.

Cut end: It is possible to choose the cutting end mode: ascent of arch with stopped blade; arch ascent with moving blade; end of cycle without ascent of the arch;

Blade cleaning: Motorized nylon cleaning brush for blade, driven by motor pulley to always keep in perfect condition the cutting blade.



TECHNICAL INFORMATION

Cutting capacity at 0°Round: 350mm
Square: 330mm
Rectangular: 450x320mm
Cutting capacity at 45° right/leftRound: 330mm
Square: 320mm
Rectangular: 320x300mm
Cutting capacity at 60° leftRound: 210mm
Square: 200mm
Rectangular: 180x270mm
Cutting capacity at 60° rightRound: 160mm
Square: 150mm
Rectangular: 150x270mm
Cutting capacity at 90° (solids)Round: 250mm
Cutting capacity (BUNDLE)Max. 400x250mm
Min. 160x40mm
Blade size4250x34x1.1mm
Blade speed40/80 m/min
Variable speed inverter (ESC)15/100 m/min
Blade motor1.7/2.2 KW
Blade motor with inverter (ESC)2.2 KW
Working table height850mm
Dimensions900x2500x2180mm
Weight865kg
