Description

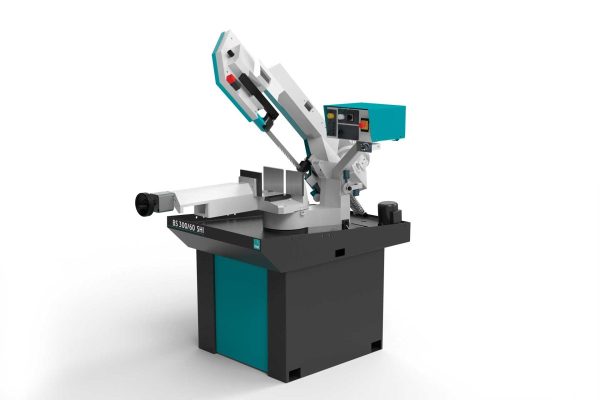

BS 300/60 SHI is the semiautomatic sawing machine for cutting tubes, profiles, bars of medium size. Due to its small size and ease of use, it can be used in any mechanical workshop and work environment. It is suitable for cutting high resistance materials.

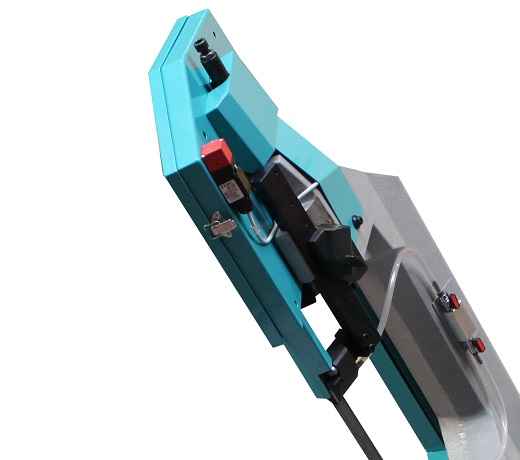

Cutting saw frame: The bow of the BS 300/60 SHI is in cast iron with tubular section, 320mm pulleys and hinged blade guard to facilitate the blade replacement.

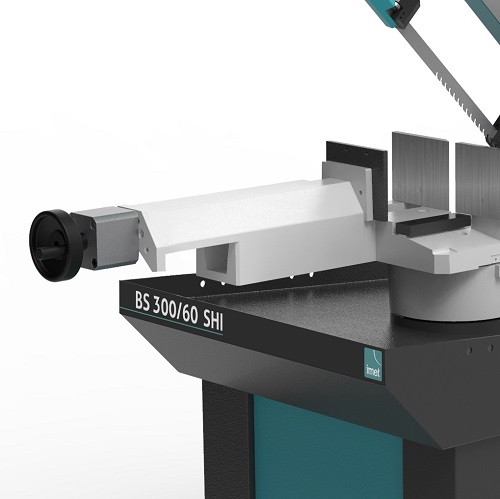

Hydraulic vice: BS 300/60 SHI is equipped as standard with an hydraulic vice sliding transversely on the working plate. The vice has a material fast approach system for perfect locking with adjustable guides.

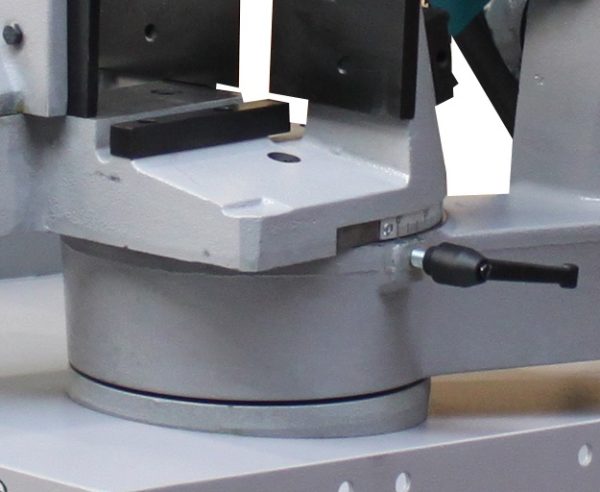

Automatic stop system: BS 300/60 SHI can cut up to 60 ° to the left and cutting operations are favoured by the presence of a system of automatic stops at 0 °, 45 ° and 60 ° during cutting and a graduated scale on the work surface.

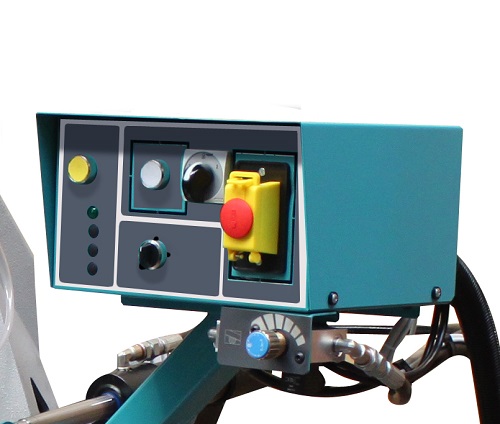

Control panel: Fully electronic, the control panel of the BS 300/60 SHI allows you to interrupt the process of cutting at any time, in case of need, with operation control leads.

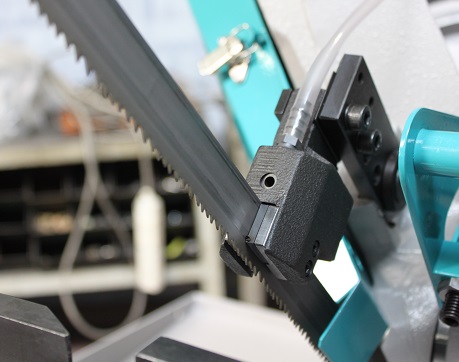

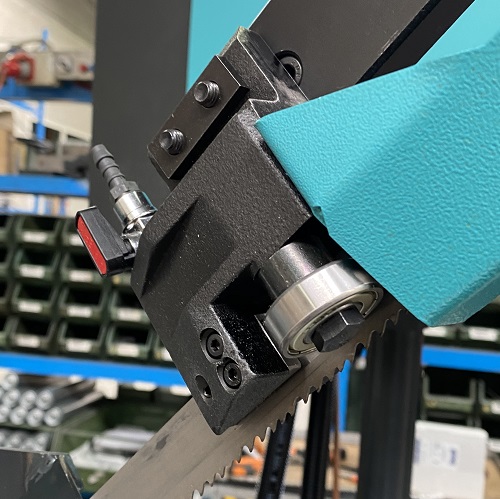

Blade alignment: BS 300/60 SHI is equipped with blade guide with hard metal pads and additional front bearings to optimise the blade alignment when cutting.

Blade: BS 300/60 SHI bimetal band saw blade has dimensions of 2765x27x0.9mm, very high tension at 1700kg/cm2 with easy front adjustment, 1.5KW motor with a speed of 35/70 m / min.



TECHNICAL INFORMATION

Cutting capacity at 0°Round: 255mm

Square: 240mm

Rectangular: 300x180mm

Cutting capacity at 45°Round: 210mm

Square :190mm

Rectangular: 200x160mm

Cuttning capacity at 60°Round: 135mm

Square:110mm

Rectangular: 130x100mm

Cutting capacity at 0° for solids (C45)200mm
Motor power1.5KW
Blade speed35/70 m/min
Height of the work surface940mm
Bimetal band saw blade2765x27x0.9mm
Weight320kg
Dimensions1050x1700x1860mm
