IMET – XS 900 – Industrial Semiautomatic Bandsaw

IMET - XS 900 - Industrial Semiautomatic Bandsaw
IMET - XS 900 - Industrial Semiautomatic Bandsaw
IMET - XS 900 - Industrial Semiautomatic Bandsaw
IMET - XS 900 - Industrial Semiautomatic Bandsaw
IMET - XS 900 - Industrial Semiautomatic Bandsaw
IMET - XS 900 - Industrial Semiautomatic Bandsaw

View Brochure

Description

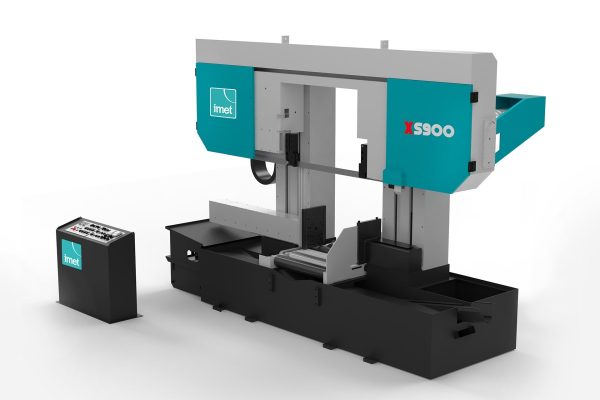

XS 900 is the big size, industrial application semiautomatic bandsaw suitable to cut big dimension profiles and solids of special steels with vertical descent and straight cut. The machine is the perfect industrial tool, able to support big format pieces thanks to wide working area and 7 motorized integrated rollers.

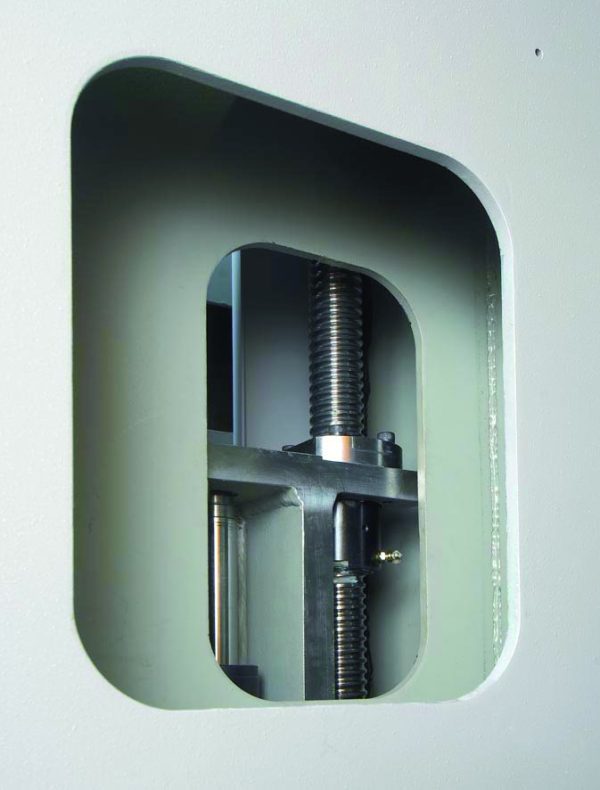

Steel sawframe: The machine has a big size, strong, rigid and imposing electrowelded sawframe structure, sliding on linear guides which movement is provided by recirculating ballscrews. Big size structure increase machine stability, efficiency and performances while cutting even the biggest pieces.

Rigid structure: To further increase machine stability and have better performances while cutting, the machine basement is electrowelded with big thickness sections to avoid vibration, binding and sawframe slowdown and eliminate noises.

Bow movement and blade: Blade and bow movement and feeding are managed by electric vectorial motors with control display able to e detect and report immediately any error, stop or anomalies.

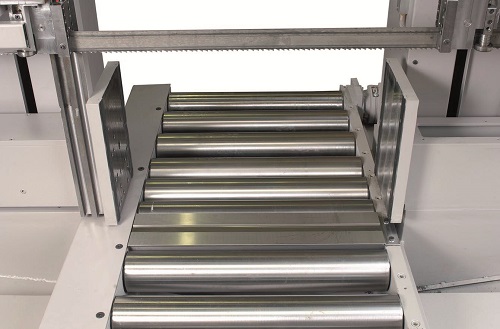

Wide working area: The machine has a wide working area where 7 motorized (hydraulically) rolls provide for a high loading capacity on every material size with elevate material positioning and accuracy. The piece is bock by an horizontal hydraulic vice.

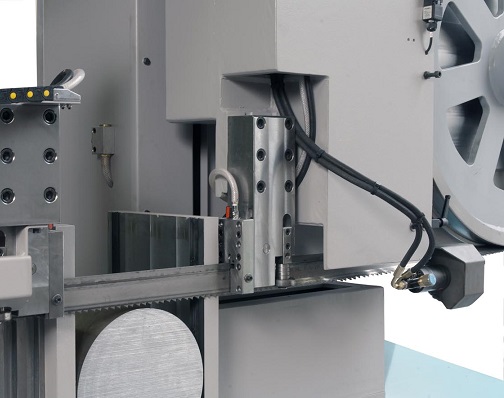

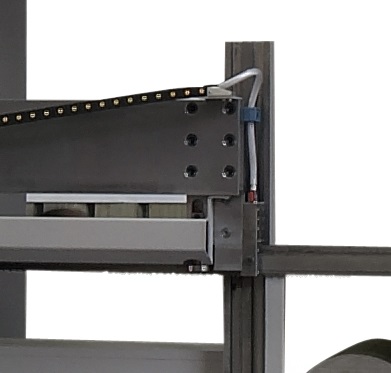

Blade guides: XS 900 blade guides has hard metal pads and include cemented, hardened, rectified lateral rolls with easy regulation. The blade guide is kept next automatically close to the cutting area.

Blade tension: Blade tensioning is provided by hydraulic cylinder, managed by the machine software. When the machine is pause paused and doesn’t need to be used, the system automatically releases the blade, reducing the tension to extend blade life. In case of blade breakage, the XS automatically stops.

Chip conveyor: XS is equipped with a chip conveyor that ease the expulsion of remaining and residuals so that the working area is always clean and nothing could affect the cutting process.

TECHNICAL INFORMATION

Cutting capacity at 0°Round: 900mm
Square: 900mm
Rectangular: 900x900mm
Blade motor11KW
Blade speedDa 14 a 60 m/min
Blade size9300x67mm
Blade tension3000kg/cm2
Canted blade
Hydraulic unit motor power3KW
Hydraulic unit tank capacity80l
Coolant tank capacity220l
Weight8450kg
Size4485x1680x3150mm
Working table height790mm
