Specifications

Make

IMET

Model

GBS 218 GH

Description

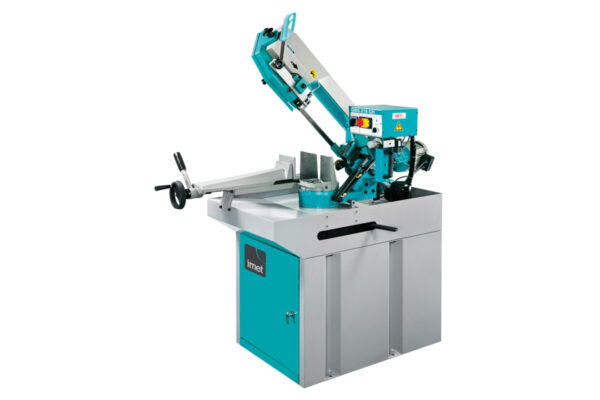

Gravity band saw for tubes and profiles.

GBS 218 GH is the IMET controlled descent sawing machine. Versatile and easy to use, GBS 218 GH is ideal for small and medium series mechanical productions and for small and medium carpentry. The machine makes angled cuts up to 60 ° to the left.

  • Manual bandsaw suitable for the maintenance and for small productions of section bars, tubes, and solids up to 60° left.
  • Easy stops at 0°, 45°, 60° and graduated plate to identify different angles.

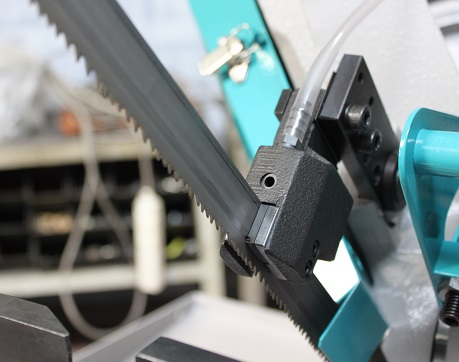

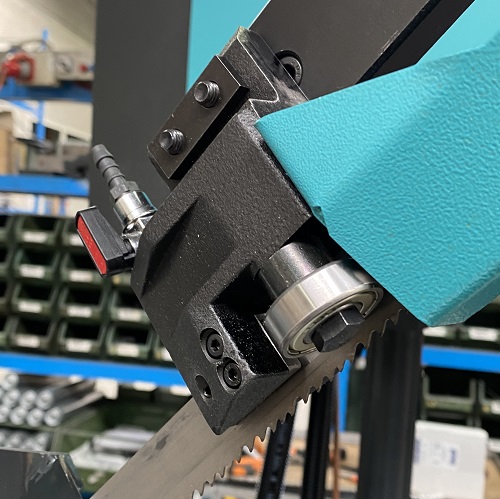

  • Blade guides with hard metal pads.
  • Floor stand with opening in the back containing removable coolant-tank and electro-pump.
  • Cast iron sawframe inclined to 42°, in order not to strain excessively the blade. High tension blade 1500 kg/ cm², which allows a greater cutting accuracy and a bigger execution speed.
  • Cutting capacity at 90 °, round 220 mm , square till 210, rectangular till 250 x 110.

OPTIONAL

Minimal lubrication system: avoids the dispersion of refrigerant liquid typical in the use of emulsifiable oil, the life of the blade is not in any way affected.
