Description

The versatile saw with controlled descent.

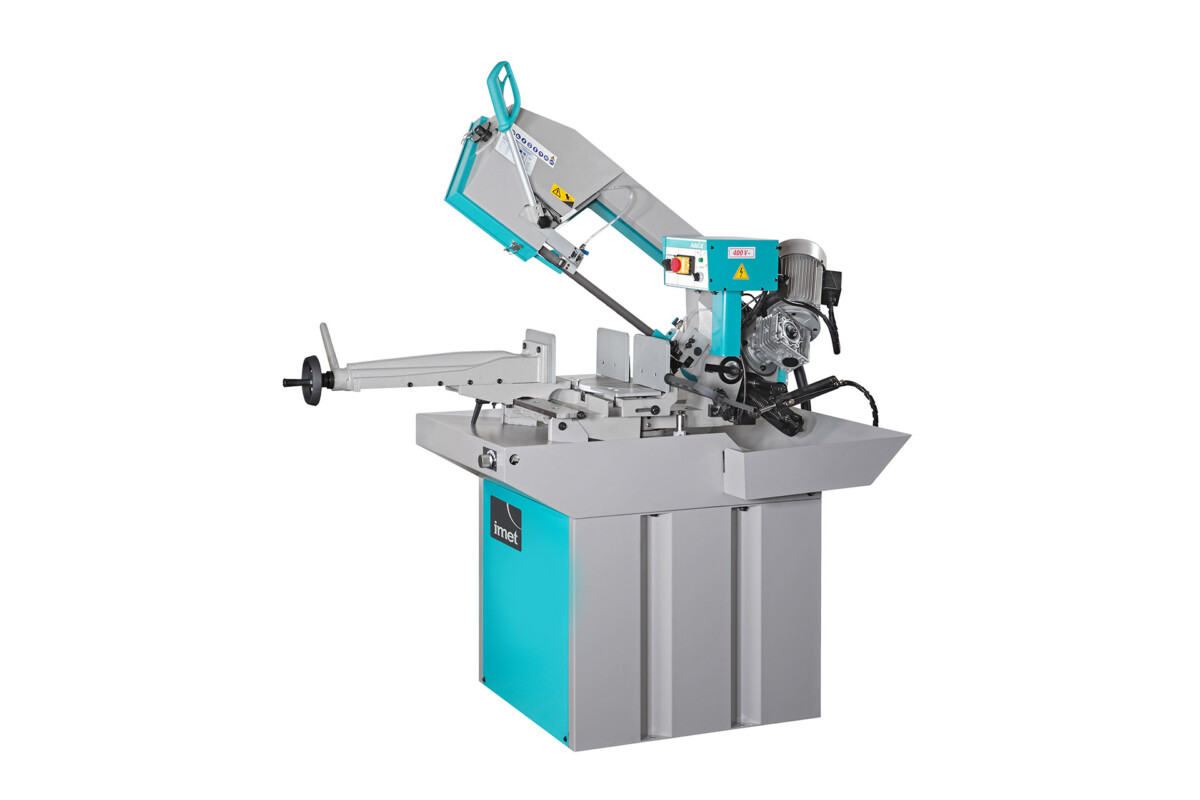

GBS 242 GH is the IMET controlled descent sawing machine. Versatile and easy to use, GBS 242 GH is ideal for maintenance and for small and medium-sized carpentry. The machine performs angled cuts up to 45 ° to the right and 60 ° to the left.

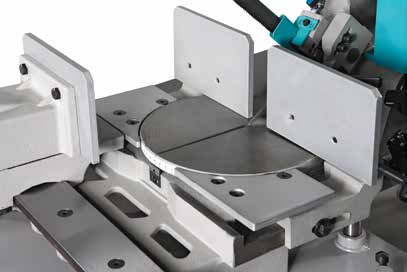

Working Surface – GBS 242 GH has a large worktop with rotation integral with the bow designed to avoid incisions on the same on a ball bearing for easy rotation.

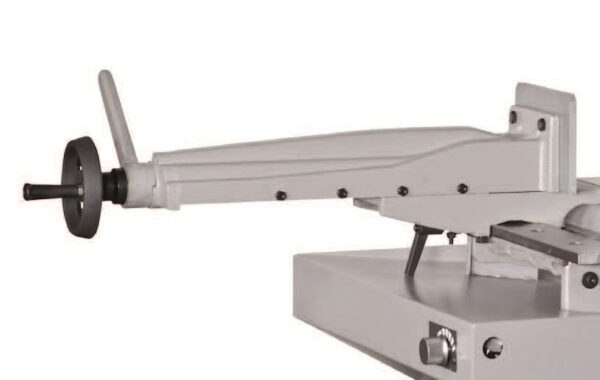

Vice – The vice with adjustable guides, sliding transversally on the work surface and quick approach to the cutting material.

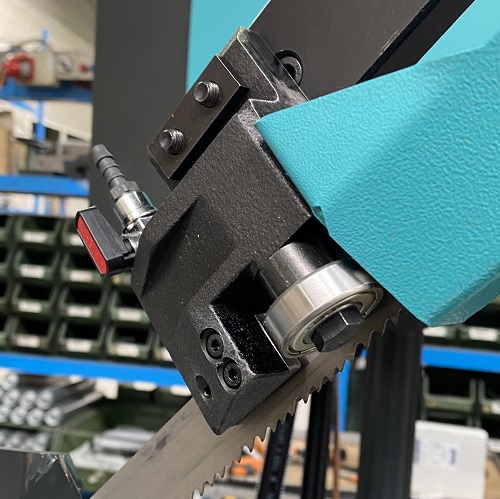

Blade guides – The blade guide of the GBS 242 GH are equipped with carbide inserts and additional front bearings for optimal blade alignment.

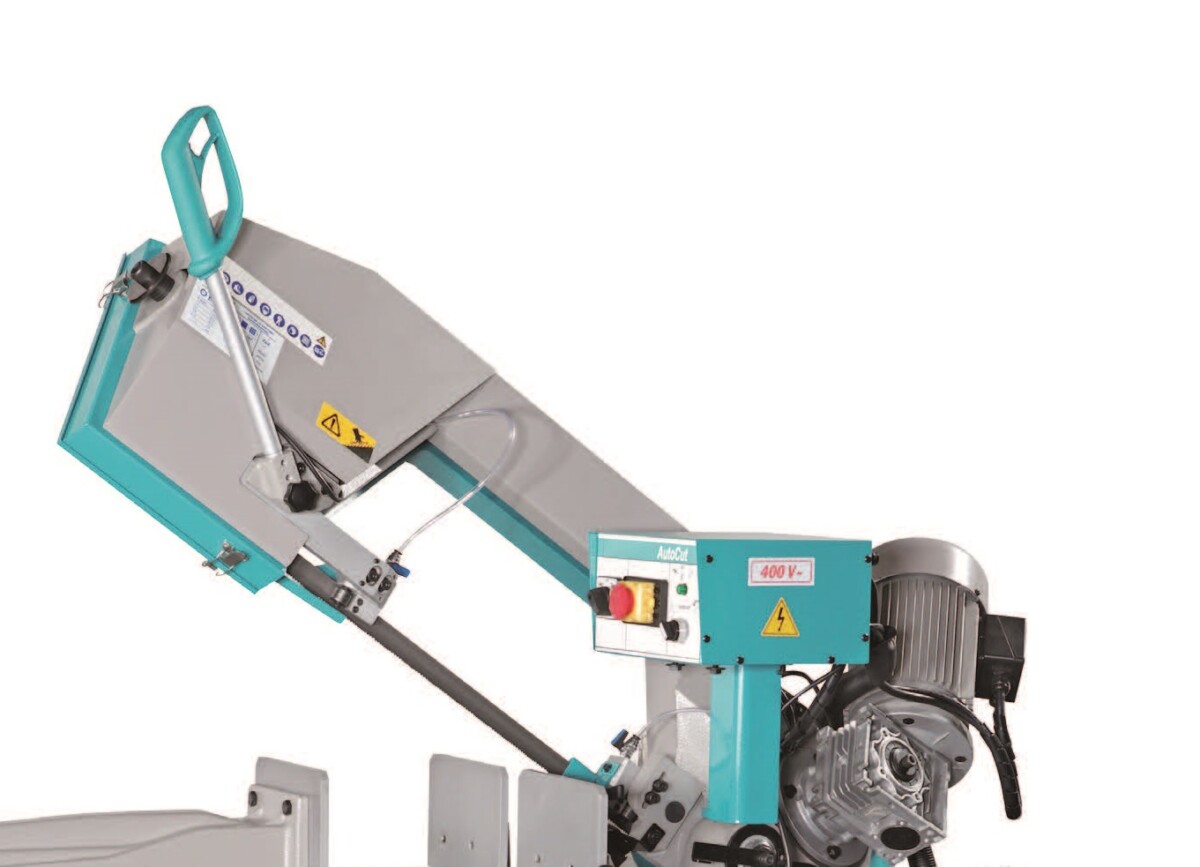

Bimetal blade – The bimetal blade has a size of 2965x27x0.9mm with a speed of use between 35 and 70 meters per minute making it the ideal tool for processing steel and cast iron.

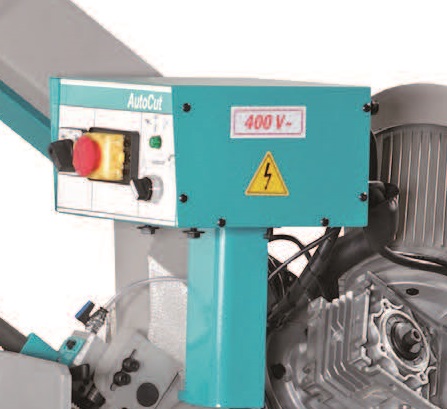

Autonomous cut – The controlled descent system is equipped with an automatic operation with a 3-position selector for: Manual cutting Quick approach to the material, Automatic cut with autonomous descent, adjustable stop and end cut microswitch

TECHNICAL INFORMATION

Cutting capacity at 0 °Round: 250mm
Square: 210mm
Rectangle: 290x210mm0mm
Cutting capacity at 45 ° leftRound: 220mm
Square: 200mm
Rectangle: 210x200mmm
Cutting capacity at 60 ° leftRound: 140mm
Square: 130mm
Rectangle: 140x130mmm
Cutting capacity at 45 ° rightRound: 170mm
Square: 170mm
Rectangle: 170x170mmm
Cutting capacity at 0 ° (solid – C45))150mm
Blade size2965x27x0,9mm
Blade motor1.1/1.3 KW
Blade speed35/70 m/min
Height of the work surface940mm
Weight290kg
Dimensions1500x1250x1700mm
