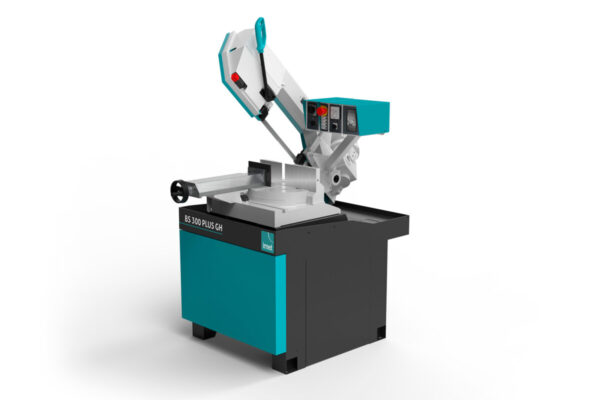

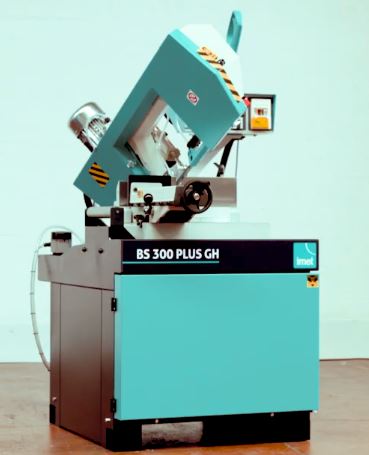

IMET PREMIUM – BS 300 PLUS – GH – manual and gravity cut bandsaw
Description
IMET PREMIUM – BS 300 PLUS – GH – manual and gravity cut bandsaw
BS 300 PLUS GH is the BS version with gravity autocut. The machine is suitable to cut both left and right (up to 60° on the left and 45° right).
The machine is a versatile working tool able to realise small and medium batch production, and an easy-to-use working tool that can be used in either mechanics or steelwork.
BS 300 PLUS and BS 300 PLUS GH are two manual and gravity cut bandsaws intended to be used by every kind of workshops, steel work factory and metal workers; easy to use and with compact dimensions, this sawing machines are suitable for cuts from 0° to 60° on left and 45° right with easy rotation and angle setting system (that includes the graded scale on the working area).
Technical information
| Cutting capacity at 90° | Round 255 mm. Square 230 mm. Rectangular 300x180mm |
| Cutting capacity at 45° right | Round 210 mm. Square 190 mm. Rectangular 200x180mm |
| Cutting capacity at 45° left | Round 180 mm. Square 160 mm. Rectangular 180x100mm |
| Cutting capacity at 60° left | Round 135 mm. Square 110 mm. Rectangular 130x100mm |
| Maximum capacity for full materials | 180mm |
| Blade size. | 2765x27x0,9 |
| End-cutting bandsaw inclination | 3° |
| Blade motor | 1,5/1,8 kw |
| Blade speed | 35/70 15÷110 m/min |
| Hydraulic unit motor power | kw 0,37 |
| Hydraulic united tank | Lt 12 |
| Coolant tank | Lt 20 |
| Size | 1230x1700x1750 mm |
| Working table height | 940 mm |
| Weight | 412kg |
The line of bandsaws BS is our range of sawing machines dedicated to all kinds of users and applications; these bandsaws have a cutting capacity from 300mm to 400mm and are availablein both manual, gravity cut and semiautomatic.
