View Brochure

Specifications

Make

Hornet

Model

LTX CNC

Description

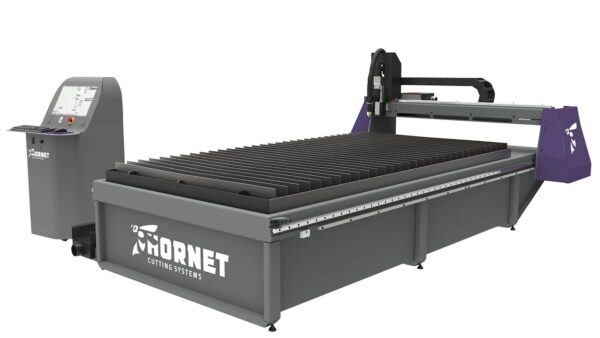

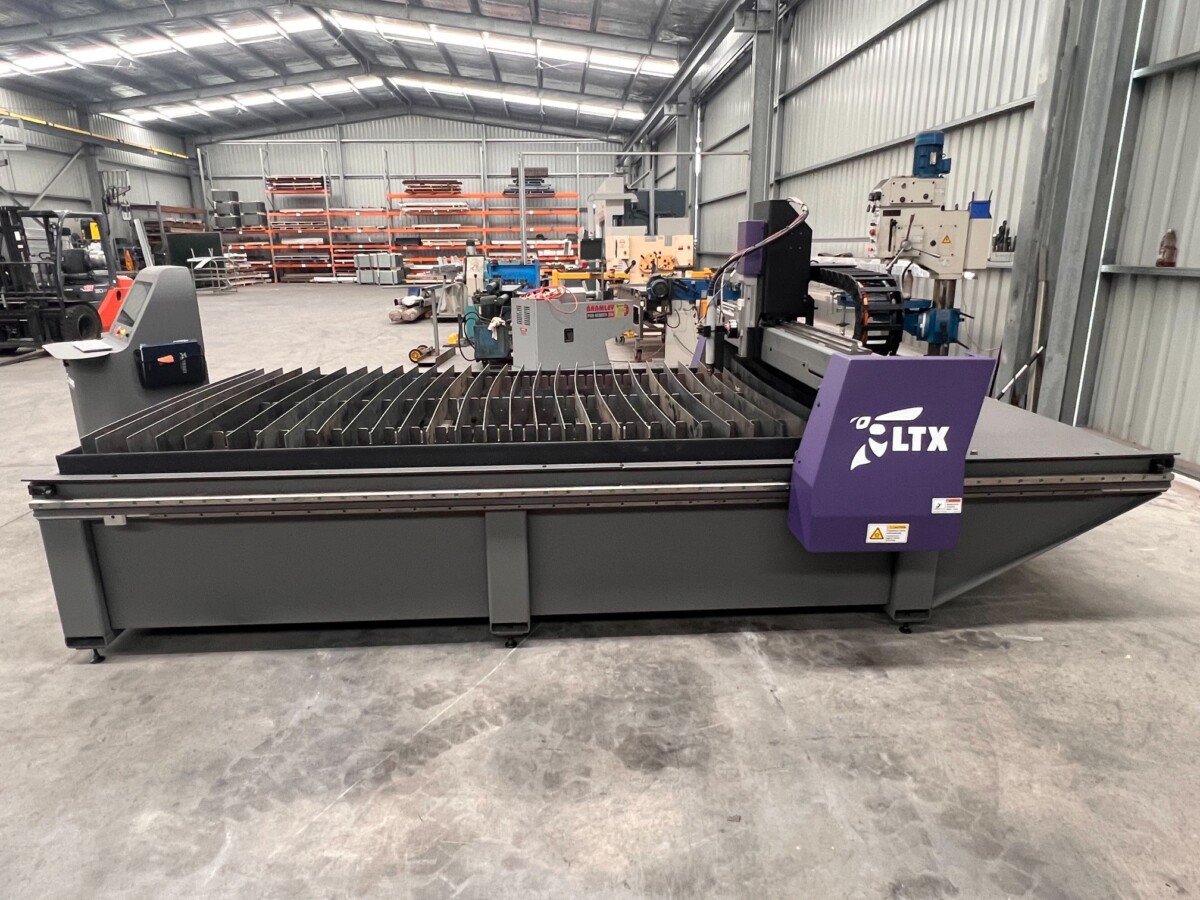

Hornet LTX CNC Plasma Cutter

Reliable. Precise. Economical. Profitable.
The all-new Hornet LTX brings unmatched performance, heavy-duty steel construction and an economical footprint to fabricators across all industries. High-quality motion inputs and zoned downdraft or adjustable level water table features come standard to get you up-and-running in a matter of hours! Increase your shop’s capabilities and boost your bottom line fast. Check out the Hornet LTX today!

Hornet LTX Features:

Exceptional Motion Control: Increased quality and part production, less waste, and more uptime from high-performance components.

Durable Steel Construction: Strong, long-lasting, heavy-duty steel construction means years of unmatched productivity.

Hypertherm Technology: Fully-integrated CNC Control Software is intuitive and operator-friendly for less training, more uptime and increased operating efficiency.

  • Ships Ready To Install
  • Economical footprint
  • High-definition cutting
  • XPR capable

Tech Specs

HORNET LTX™ 5 ft x 10 ft (1.5 m x 3 m) Dual-Side Drive

Dimensions

  • Overall – 8.33 ft x 13.75 ft (2.54 m x 4.19 m)  (Excluding Remote Pedestal Station)
  • Overall Machine Weight – 7,500 lbs. (3,401 kg)
  • Cutting Envelope – 5 ft x 10 ft (1.52 m x 3.04 m)
  • Maximum table Load Weight – 3,500 lbs. (1,587 kg)
  • Table Slat Height – 32 in (812 mm)
  • Clearance Under Gantry Beam – 5 in (127 mm)

Heavy Duty Unitized Machined Steel Gantry and Rail System

  • Full Heat Shield Under Machine Beam
  • 30 mm (1.18 in) Linear Guides on Cross Axis Gantry Bridge
  • 30 mm (1.18 in) Linear Guides on both Rail Axes

Four Axis Drive System

  • Requires 200-240VAC 1 PH 50/60 Hz Power to Cutting Machine
  • Digital AC Servo Motors & Drive Amplifiers
  • 1,200 IPM (30,480 mmpm) Rapid Traverse Speed
  • 600 Watt (0.8 HP) Digital AC Servo Motors & Drive Amplifiers
  • EDGE® Connect CNC controller with Phoenix motion control software
  • EtherCAT Communication Interface

Moving Cables on Main and Cross Axes are Inside Flexible Cable Carriers

  • Over-Travel Limits and Homing Switches
  • One-Button Machine Squaring

Low Backlash Planetary Gear Heads

  • 3/4 in (19mm) Wide Gear Rack
  • 2.5 in (63.5 mm) Diameter Spur Pinion Gears

Misc.

  • Max Transverse Speed: 1200 IPM

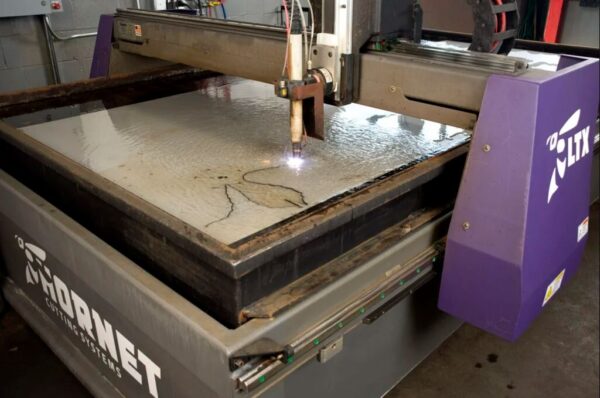

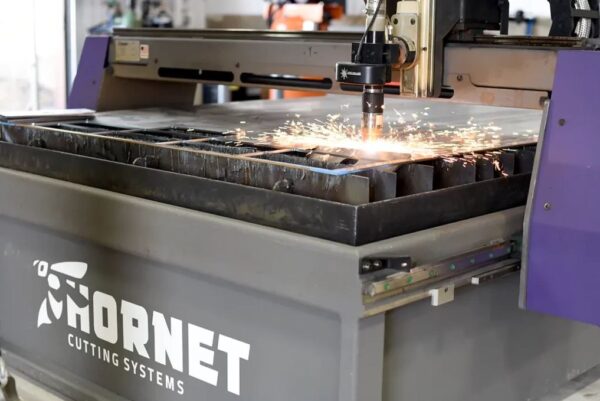

  • Cutting Table Options: Zoned downdraft air or adjustable level water table.

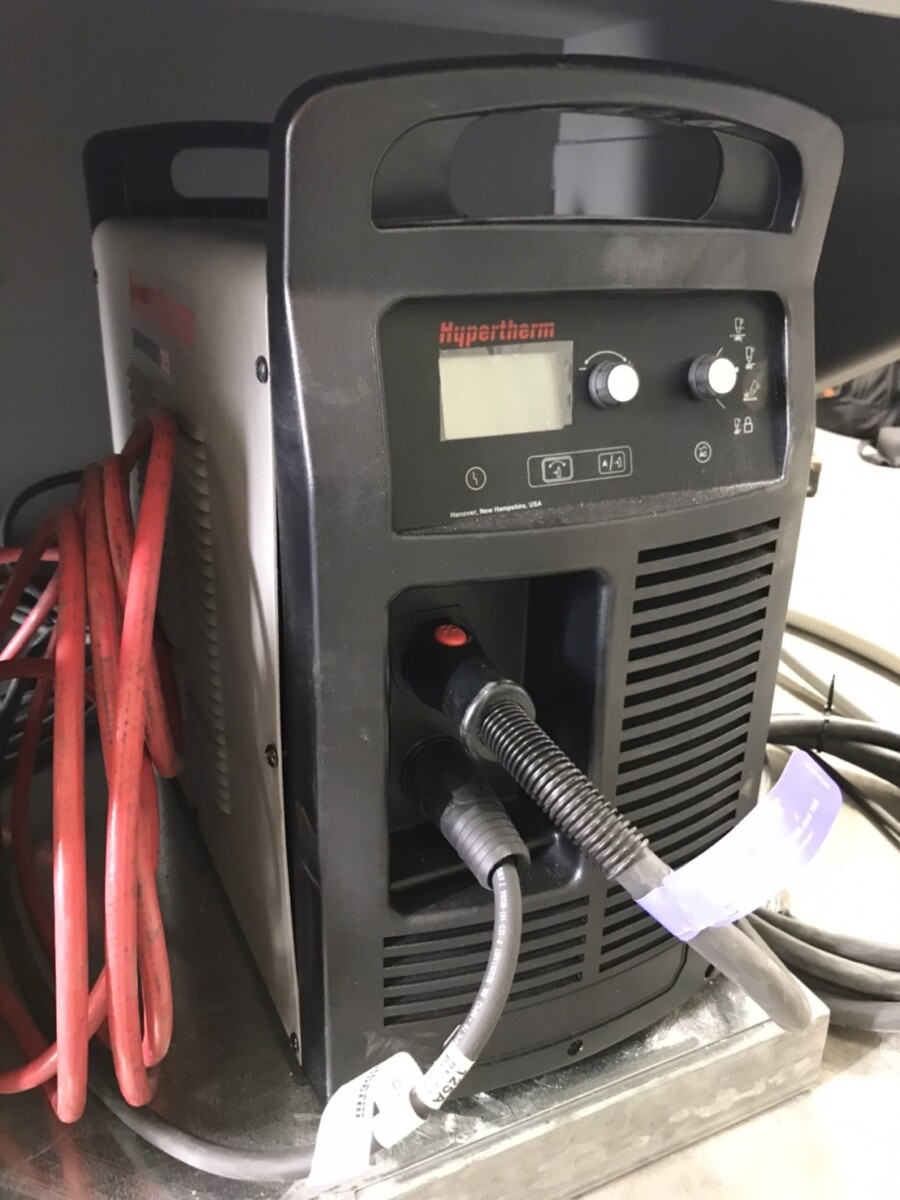

  • Recommended Plasma Systems: Powermax Series, MAXPRO200, XPR170, XPR170
  • Hypertherm CAM nesting software and productivity modules
