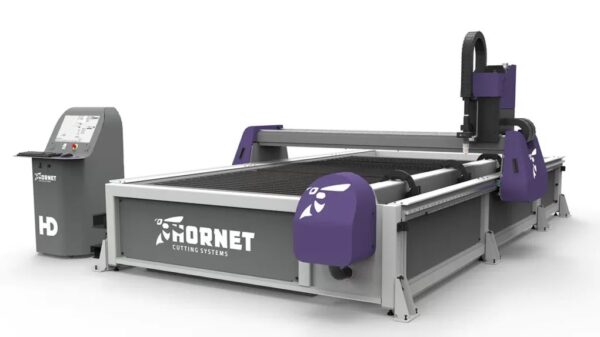

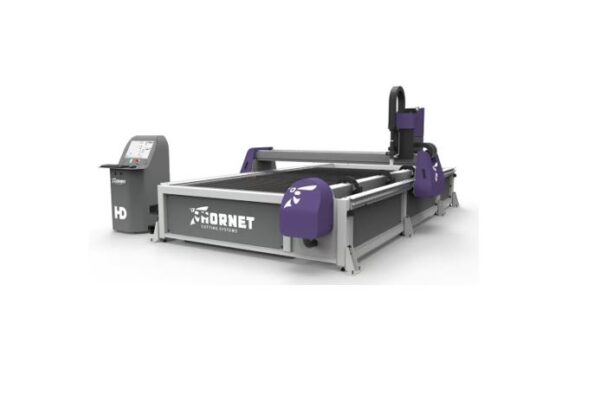

Hornet HD Combo CNC Plasma Cutter

Hornet HD Combo CNC Plasma Cutter
Hornet HD Combo CNC Plasma Cutter
Hornet Mega 2000 CNC Plasma Cutting Machine

Specifications

Make

Hornet

Model

HD Combo CNC

Description

Hornet HD Combo CNC Plasma Cutter

Features of the Hornet HD COMBO CNC Plasma Cutter

  • Allows you to cut both plate and pipe with only one machine and one power unit saving time and money.
  • Combines HornetHD and Roto series machine into one machine.
  • Machine is available in 5.0′ (1.5 m) , 6.6′ (2.0 m), 8.2′ (2.5 m) and 10.0′ (3.0 m) effective cutting widths.
  • Available with 12′ (3.7 m), 20′ (6.1 m) or 24′ (7.3 m) effective cutting lengths.

Details/Specs

  • Rotary Combo Unit | 20ft (6.1 m)
  • Machined Pipe Support Beam with repositionable turn rolls.
  • 4‐Jaw 12″ (304.8 mm) Combination Scroll and Independent Chuck
  • Maximum 6″ (152.4 mm) Square/Rectangle and 8″ (203.2 mm) Round Tubing
  • 2″, 4″ and 6″ Independent adaptor plate kit
  • Quick Release Turn Roll assemblies for material loading/unloading

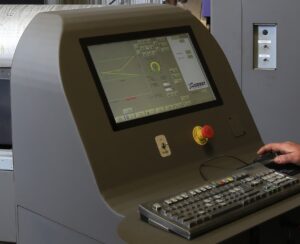

Rotary Tube Pro Software

Hornet Cutting Systems Rotary Tube Pro software enables users to cut a variety of cut parts including straight, miter, cope, slotted and branch cuts.
