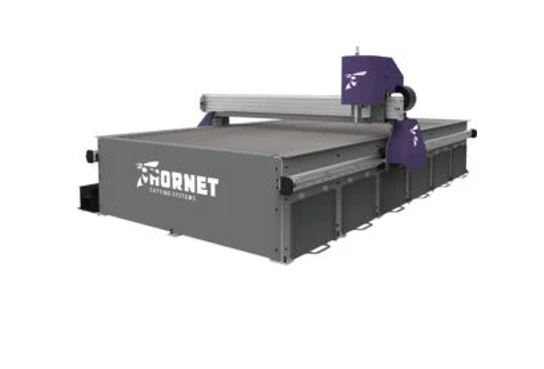

Hornet LT CNC Plasma Cutting Table

Hornet LT CNC Plasma Cutting Table

View Brochure

Specifications

Make

Hornet

Model

LT CNC

Description

Hornet LT CNC Plasma Cutting Table. Big Productivity. Bigger Value.

The HORNET LT industrial-quality plasma cutting machine provides superior performance at an entry-level price. Through its best-in-class motion, unitised design, and compact footprint the LT brings speed and productivity to shops of all sizes.

Hornet LT Features

Industrial Cutting

Modular design for quick installation to get you cutting faster.

  • Full factory assembly
  • Standard open bottom table; water tray and zoned duct optional
  • Plug and cut controls

Durable Performance

Heavy duty components will deliver years of dependable service.

  • Robust-tube frame construction with 12mm hardened bearing shafts
  • Fully enclosed cable power track
  • Powder coated metal surfaces

High Powered Flexibility

Small operations can harness the power of high-grade industry functionality.

  • Standard high-reliability motion package
  • Easy-to-operate software control interface and intuitive CAD/CAM drawing/nesting tools

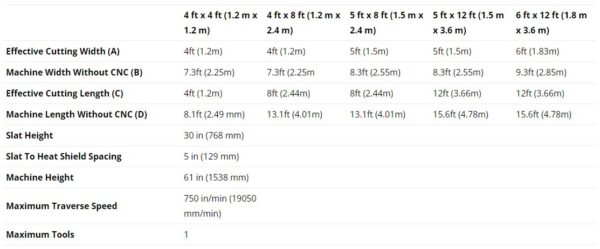

Machine Specifications

  •  Slat Height: 30 in (768 mm)
  • Slat To Heat Shield Spacing: 5 in (129 mm)
  • Machine Height: 61 in (1,538 mm)
  • Maximum Traverse Speed: 750 IPM (19,050 mm/min)
  • Maximum Tools: 1
  • Plasma Power Supplies: Hypertherm® Powermax45XP®, Powermax65®, Powermax85®, Powermax105®, Powermax125®
  • Maximum Cutting Capacity: 1 in (25 mm) Mild Steel – Power Supply Dependent
  • Input Power – CNC & Drives: 115/230 VAC | 1-Phase | 50/60 Hz | 10-amp Dedicated Circuit

Options:

  • Optional zoned down draft table side duct
  • Optional water tray
  • Optional installation and training by HCS factory persona
