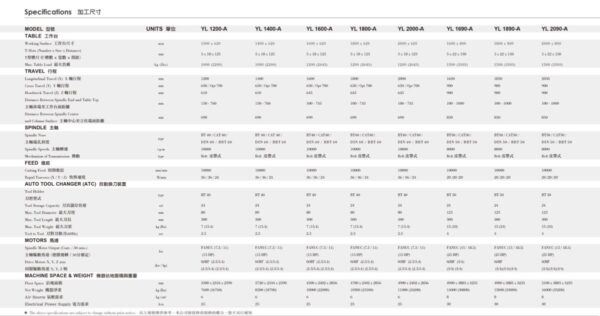

Specifications

Make

HANNSA

Description

HANNSA – Vertical Machining Centre / Linear Way Series

Delahenty Machinery offers the full range of HANNSA Vertical Machining Centre / Linear Way machines.

SMALL HIGH-SPEED PRECISION MACHINING SERIES

Special Designed for High Speed Machining Parts

YL 850-B
X, Y, Z-AXIS TRAVEL:
850 x 510 x 530 mm

  • Linear ways on three axes.
  • 10000 rpm belt-drive spindle.
  • BT40 spindle taper.
  • 24 arm type.
  • Fully enclosed splash guard.

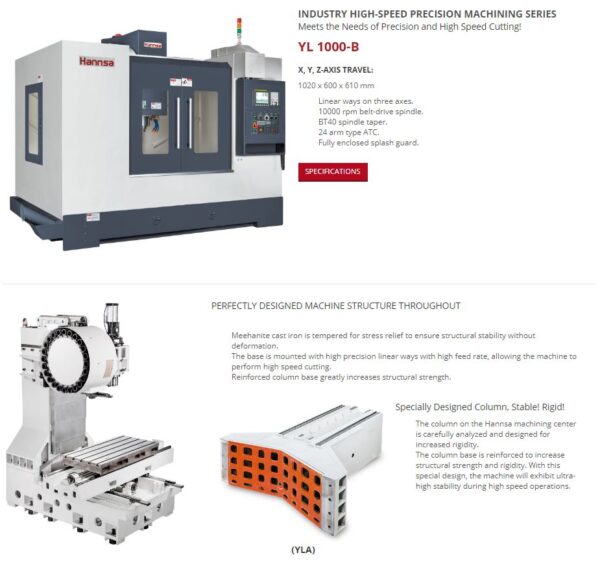

YL 1000-B
X, Y, Z-AXIS TRAVEL:
1020 x 600 x 610 mm

  • Linear ways on three axes.
  • 10000 rpm belt-drive spindle.
  • BT40 spindle taper.
  • 24 arm type ATC.
  • Fully enclosed splash guard.

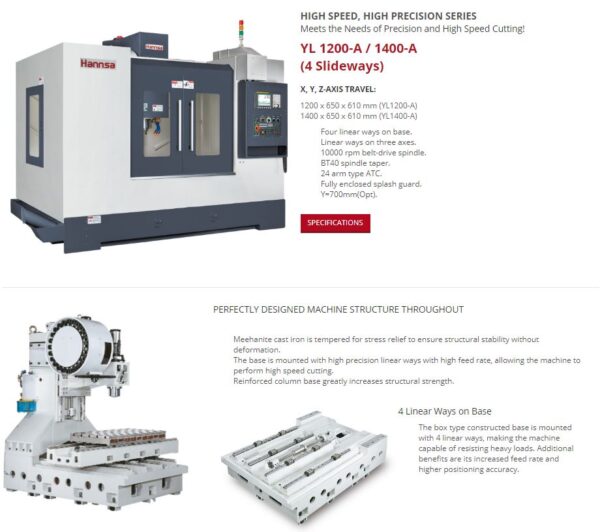

YL 1200-A / 1400-A – (4 Slideways)
X, Y, Z-AXIS TRAVEL:
1200 x 650 x 610 mm (YL1200-A)
1400 x 650 x 610 mm (YL1400-A)

  • Four linear ways on base.
  • Linear ways on three axes.
  • 10000 rpm belt-drive spindle.
  • BT40 spindle taper.
  • 24 arm type ATC.
  • Fully enclosed splash guard.
  • Y=700mm (Opt).

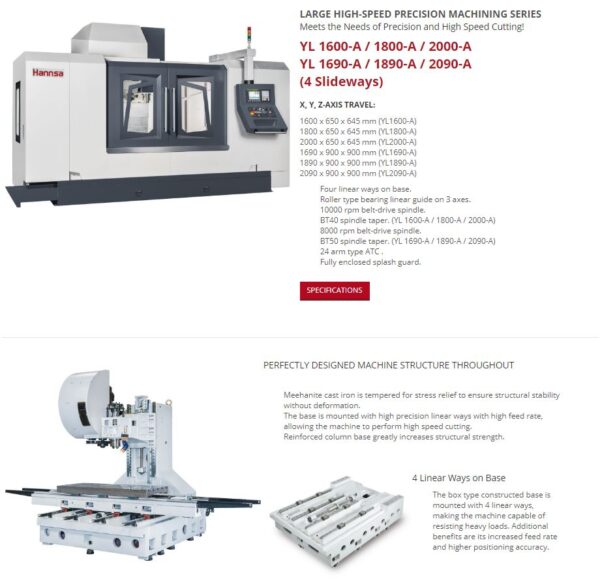

YL 1600-A / 1800-A / 2000-A – (4 Slideways)
YL 1690-A / 1890-A / 2090-A – (4 Slideways)
X, Y, Z-AXIS TRAVEL:
1600 x 650 x 645 mm (YL1600-A)
1800 x 650 x 645 mm (YL1800-A)
2000 x 650 x 645 mm (YL2000-A)
1690 x 900 x 900 mm (YL1690-A)
1890 x 900 x 900 mm (YL1890-A)
2090 x 900 x 900 mm (YL2090-A)

  • Four linear ways on base.
  • Roller type bearing linear guide on 3 axes.
  • 10000 rpm belt-drive spindle.
  • BT40 spindle taper. (YL 1600-A / 1800-A / 2000-A)
  • 8000 rpm belt-drive spindle.
  • BT50 spindle taper. (YL 1690-A / 1890-A / 2090-A)
  • 24 arm type ATC.
  • Fully enclosed splash guard.

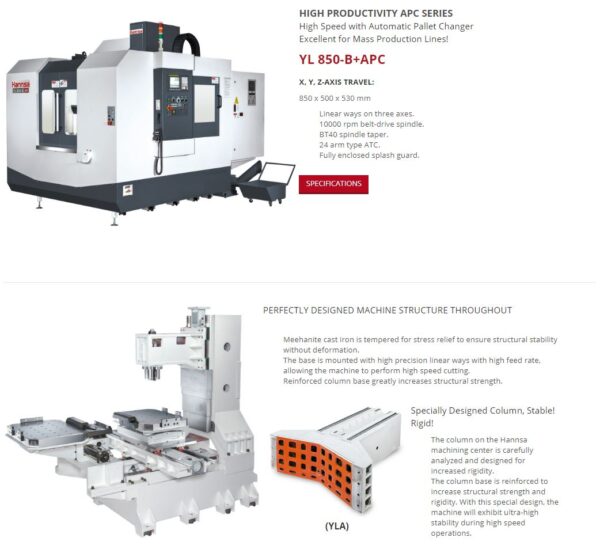

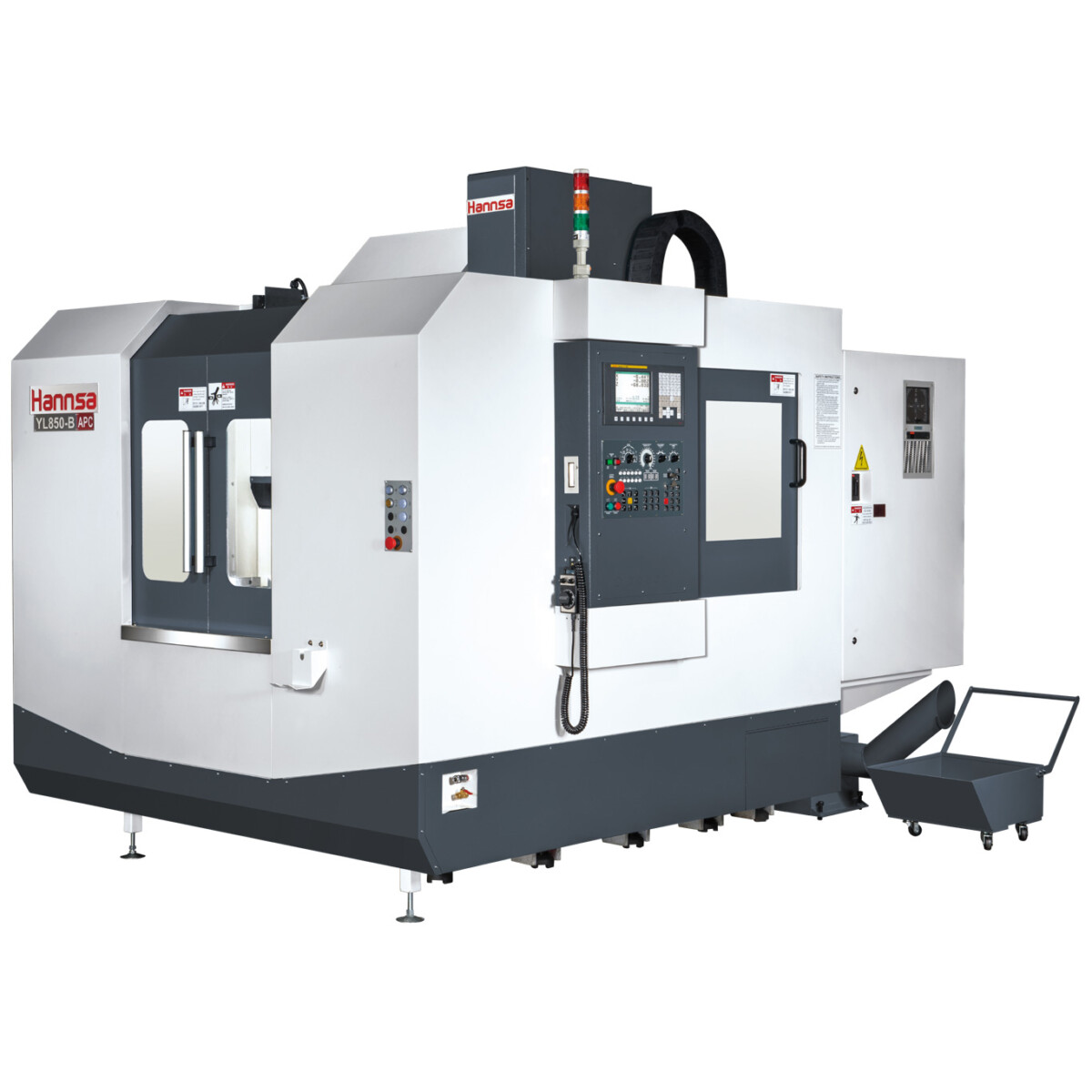

YL 850-B+APC
X, Y, Z-AXIS TRAVEL:
850 x 500 x 530 mm

  • Linear ways on three axes.
  • 10000 rpm belt-drive spindle.
  • BT40 spindle taper.
  • 24 arm type ATC.
  • Fully enclosed splash guard.
