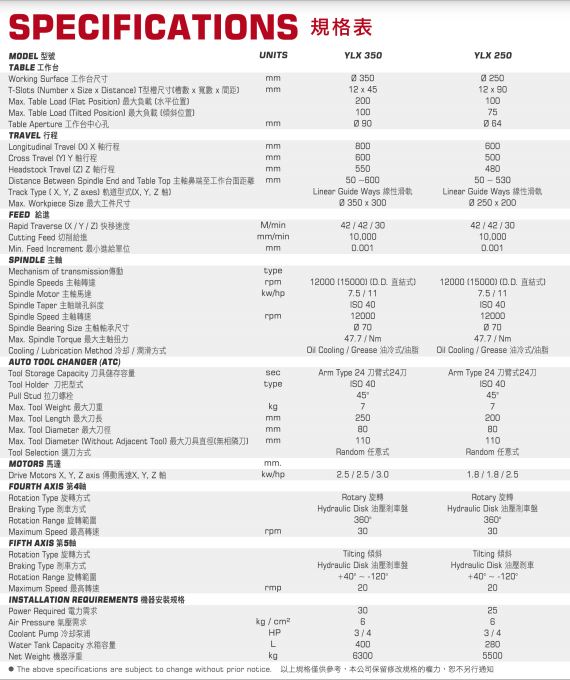

Specifications

Make

HANNSA

Model

YLX350

Description

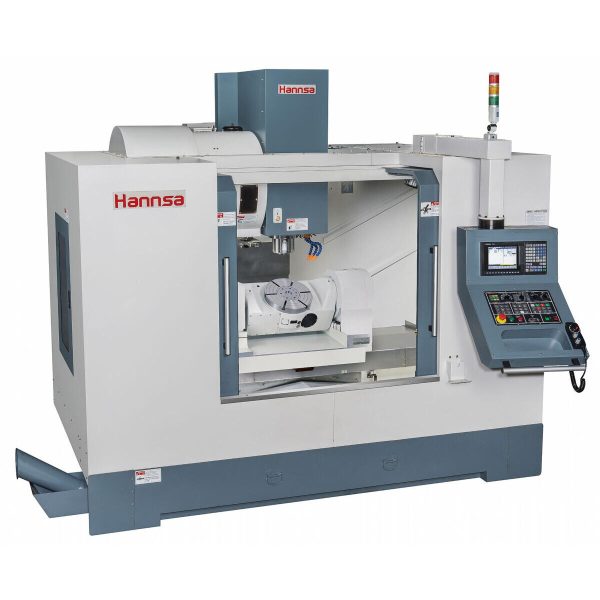

HANNSA – YLX 350 – 5 Axis – Vertical Machining Centre

Model YLX350

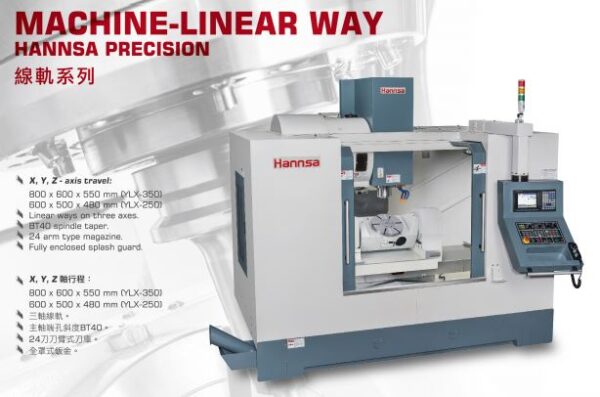

MACHINE LINEAR WAY X, Y, Z – axis travels:

  • 800 x 600 x 550
  • Linear ways on three axes
  • BT40 spindle taper
  • 24 arm type magazine
  • Fully enclosed splash guard

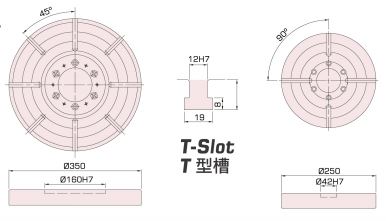

CNC TILTING ROTARY TABLE [4th / 5th Axis]

  • With the equipment of NC rotary table, the machine is able to perform 5-axis machining. It can machine complex, multi-sided parts in a single setup, thereby reducing setup time while increasing part accuracy.
  • The CNC rotary table allows for a maximum indexing unit of 0.001 degrees with high indexing accuracy and repeatability.

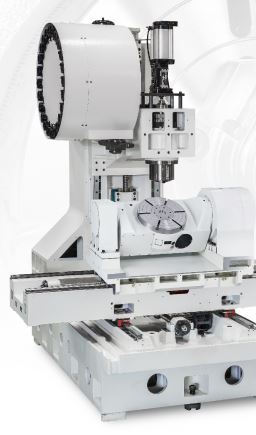

PERFECTLY DESIGNED MACHINE STRUCTURE THROUGHOUT

  • Meehanite cast iron is tempered for stress relief to ensure structural stability without deformation.
  • The base is mounted with high precision linear ways with high feed rate, allowing the machine to perform high-speed cutting.
  • A reinforced column base greatly increases structural strength.
  • The column base is reinforced to increase structural strength and rigidity.
  • The machine will; exhibit ultra-high stability during high-speed operations.
