YLM – CNC Hybrid Tube Bending Machine – CNC-220S1-RHT
Specifications
| Make | YLM |
|---|---|
| Model | CNC 220S1 RHT |
Description

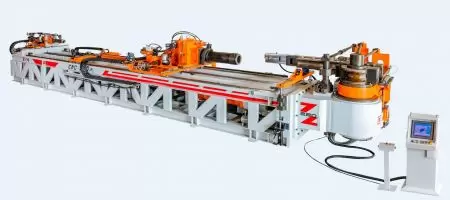

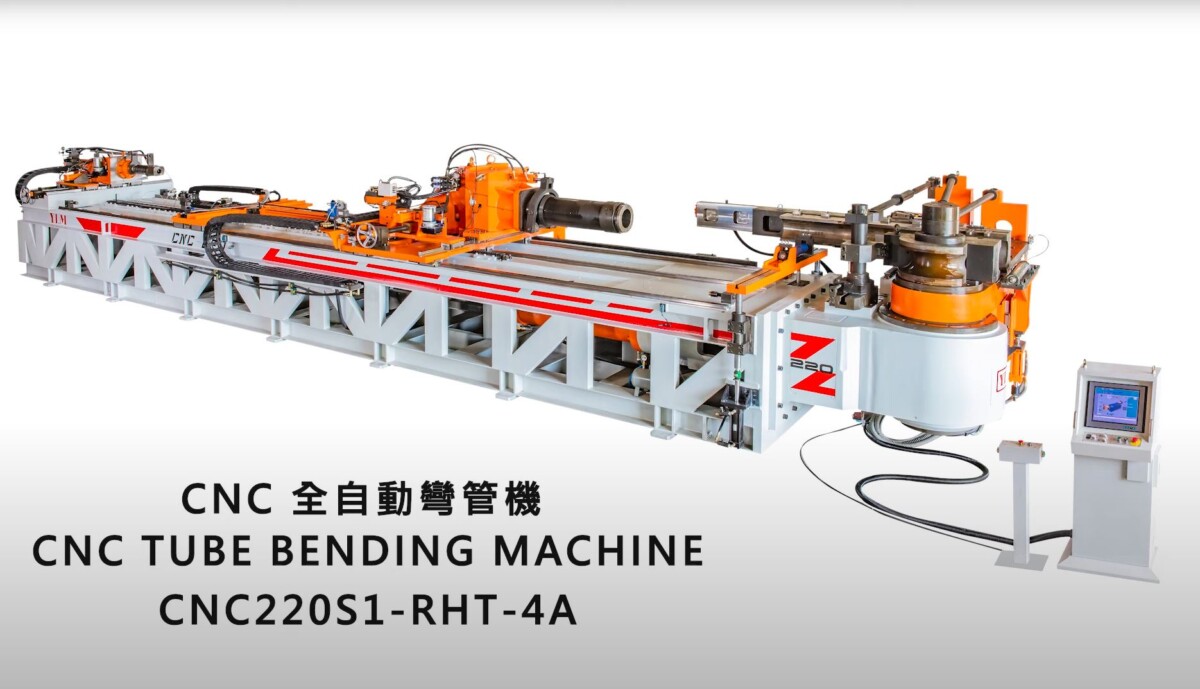

YLM – CNC Hybrid Tube Bending Machine – CNC-220S1-RHT
A new large-capacity CNC tube bender has been recently released by Ying Han Technology of YLM Group for bending up to 220mm diameter tube.
CNC, NC & Conventional Type Tube & Pipe Bending Machinery.
YLM is one of the leaders in the supply of advanced solutions for companies in metal tube forming industries, especially automotive, furniture, heating, shipbuilding, and many others.
We provide you with the best cold-bending technology and equipment of tube od range from 4 to 220 mm, tube w.t from 0.4 mm to 10 mm, and CLR from 0.6 to unlimited.
Suitable industries: Boiler, Heavy transportation vehicle, Chemical engineering, Power plant, Marine industry.
Specification
| Machine Name | CNC-220S1 | |
|---|---|---|
| Max. tube o.d. bending capacity(Mild steel CLR1.5D)(mm) | 220×6 | |
| Range of CLR (mm) | 100-800 | |
| Max. bending radius difference (mm) | — | |
| Max. bending angle (°) | 190 | |
| Mandrel working distance (mm) | 6000 | |
| Manufacture speed | Max. Tube feeding speed (mm/sec) | 450 |
| Max. Tube rotation speed (mm/sec) | 71.2 | |
| Max. Tube bending speed (mm/sec) | 8 | |
| Repeatability | Tube feeding Precision (mm) | ± 0.05 |
| Tube rotation Precision (mm) | ± 0.05 | |
| Tube bending Precision (mm) | ± 0.1 | |
| Overall weight (Kgs) | 35000 | |
| Machine length (mm) | 13350 | |
| Machine width (mm) | 3620 | |
| Machine height (mm) | 2500 | |
| Operating height (mm) | 1810 | |
