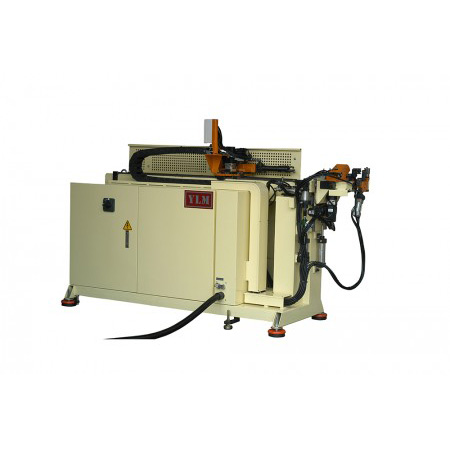

YLM – CNC Hybrid Tube Bending Machine – CNC-08S2

YLM produces a line of CNC hydraulic tube benders designed for the companies looking for an economical way to enter into CNC benders.
The machines are available in capacity sizes from 1-1/2” to 5”. Utilizing the proven software technology these heavy duty benders will meet the needs of furniture manufacturers, automotive production, ship builders, or job shop applications.

Features of Hybrid Tube Bender

  1. The series of machine employs hydraulic valves and integrated circuits ti control bending motion individually, which will extend the service life of the hydraulic parts.
  2. Large bending machine is equipped with a manually adjusted digital flow regulation valve to control the speed of bending motion.
  3. Servo drive provides high accuracy in bending positioning, that ensures high quality bending.
  4. 3 Axes Servo-Motor controlled
  5. 3D Simulation of Bending Process and application
  6. Zero hydraulic [Air]

Standard machine design features on CNC benders include:

  • Air-conditioned electrical enclosure to maintain temperature and prolong system components
  • Electrical power filtering to stabilize incoming power supplies for an efficient consistent operation
  • Control electrical cabinet isolation to minimize vibration transfer to electronics
  • Oil filtering system with condition indicator to protect oil supply
  • Radiator type oil cooler standard on most models, available on others to maintain oil temperature
  • Vibration control machine mounting pads to reduce machine movement during operation
  • Spacious well labelled / layout of electrical system for ease of maintenance and efficient operation
  • Remote control console for placement in operational location based on application to reduce operator interface time to increase production
  • Foot pedal cycle start operation for quick safe loading increasing production
  • Safety mat and safety plates with multiple emergency stop placement for operational safety
  • Integrated gearbox reducer with multi-layer drive chain assembly for smooth controlled operational start / stop movement of bend arm extending the chain life many years beyond traditional hydraulic benders.
  • Low profile bend head design uniquely offset from centre of machine frame providing clearance for complicated parts that can not be obtained on other brands of equipment.
  • Full capacity feed through collect for working with long material that requires additional length beyond the front collect stop system reducing the need for extended models in most applications.
  •  Low decibel level production noise to reduce operator fatigue and general improvement of shop conditions
  • Low working heights for ease of operation increasing production and improved safety of material handling
  • Multiple axis operation reducing cycle time and interference for optimum production

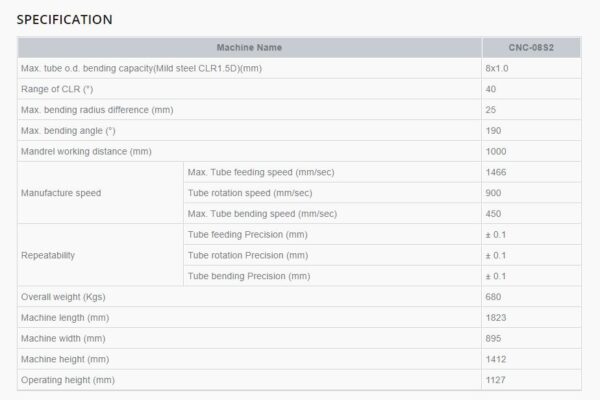

SPECIFICATION

  • Machine Name CNC-08S2
  • Max. tube o.d. bending capacity (Mild steel CLR1.5D)(mm) 8×1.0
  • Range of CLR (mm) 40
  • Max. bending radius difference (mm) 25
  • Max. bending angle (°) 190
  • Mandrel working distance (mm) 1000
  • Manufacture speed Max. Tube feeding speed (mm/sec) 1466
  • Tube rotation speed (mm/sec) 900
  • Max. Tube bending speed (mm/sec) 450
  • Repeatability Tube feeding Precision (mm) ± 0.1
  • Tube rotation Precision (mm) ± 0.1
  • Tube bending Precision (mm) ± 0.1
  • Overall weight (Kgs) 680
  • Machine length (mm) 1823
  • Machine width (mm) 895
  • Machine height (mm) 1412
  • Operating height (mm) 1127
