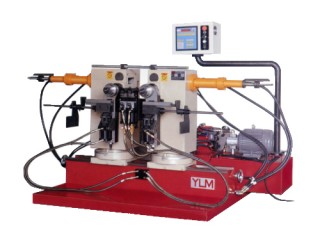

YLM – CR-F38D – Double finishing & Double-bend tube bender

YLM – CR-F38D – Double finishing & Double-bend tube benderYLM – CR-F38D – Double finishing & Double-bend tube bender

Description

It is capable of providing more than 3 different processing methods and is called “universal machine” in the field of double bend processing. This machine comes with 2 rotary.

Conventional models tube bender – double finishing & double-bend tube bender

  • This machine (CR-F38) is an improvement of CR-T38. It is capable of providing more then 3 different processing methods and is called “universal machine” in the field of double bend processing. This machine comes with 2 rotary tables.
  • The rotary angles can be set up according to the shapes of work-pieces.
  • This machine is flexible. It can do both front side bending (same as CR-T38) & inside bending. Besides, this machine can be simply used as single-bend pipe bender.
  • The feature of the pipes made by this machine:
    (1) Excellent surface flatness and angle.
    (2) Quality stable.
    (3) Beautiful appearance without wrinkles.
  • Two shafts can do different angles bending. Both of these 2 angles can be adjusted freely from 0° to 180°.
  • Production capacity: produce 720 pcs (Max.) of pipes with two-end bending.
  • The distance between the center line of 2 main shafts:
    (1) Front-side bending: 140 m/m (Min,) ~ 1,100 m/m (Max.).
    (2)Inside bending: 150 m/m (Min.) ~ 900 m/m (Max.).
  • Production capability:
  • Front-side bending: (Same as CR-T38)
    (1) Produce 1 pipe each time for O.D 38m/m pipe.
    (2) Produce 3 pipes at the same time for O.D. 19 m/m pipe.
  • Inside bending: Produce 1 pc each time for the O.D. 38 m/m & smaller pipes.

SPECIFICATION

TYPE O.D. * Wall
(mm)
Range of Radius
(mm)
Range of Bending Horse Power Total Length Total Width Total Height Total Weight Range of Bending Speed
CR-F38D Right side 38*2.0 25~170 110° 7.5HP 2500mm 1800mm 2000mm 1800kg 90°3~4/sec
In side 180°
