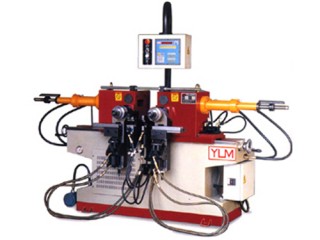

YLM – CR-T38D – Twin-head Double-bend tube bender

YLM – CR-T38D – Twin-head Double-bend tube benderYLM – CR-T38D – Twin-head Double-bend tube bender
YLM – CR-T38D – Twin-head Double-bend tube benderYLM – CR-T38D – Twin-head Double-bend tube bender

View Brochure

Description

High production capacity: Max.720 pcs of two-end bending pipes in one hour.
Bending angles are adjustable from 0°~180°.

Conventional models tube bender – twin-head double-bend tube bender

  • With the proportional pressure control, you can hand 2 pipes synchronously & rapidly and get the final production with precise angles & beautiful surface without wrinkles. The 2 angles can be different & adjustable. So this machine is the most proper machine for general two-end bending.
  • Both manual and automatic operations are available.
  • The machines is equipped with emergency stop device.
  • Bending angles are adjustable from 0˚ ~ 180˚.
  • High production capacity: Max.720 pcs of two-end bending pipes in one hour.
  • The distance between the center line of 2 main shafts are 180 m/m (Min.) & 930 m/m (Max.) for CR-T38 type.

Production capacity for CR-T38:
(1) produce 1 pipe each time for O.D. 38 m/m pipe.
(2) Produce 2 pipes at the same time for O.D. 25 m/m pipe.
(3) Produce 3 pipes (Max.) at the same time for O.D. 19 m/m & smaller pipes. (Tube w.t ≤ 1.5 m/m)

SPECIFICATION

TYPE O.D. * Wall
(mm)
Range of Radius
(mm)
Range of Bending Horse Power Total Length Total Width Total Height Total Weight Range of Bending Speed
CR-T38D 38*2.0 25~170 0°~180° 7.5HP 2500mm 950mm 2000mm 1400kg 90°3~4/sec
