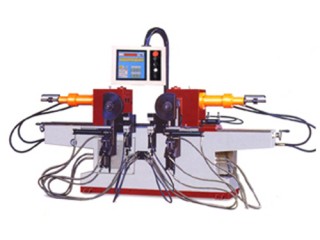

YLM – CR-T50D – Twin-head Double-Bend Tube Bender

YLM - CR-T50D - Twin-head Double-Bend Tube Bender

View Brochure

Specifications

Make

YLM

Model

303HV, CR-T50D

Description

YLM – CR-T50D – Twin-Head Double-Bend Tube Bender

High production capacity: Max.720 pcs of two-end bending pipes in one hour.
Bending angles are adjustable from 0°~180°.

Conventional models tube bender

  • With the proportional pressure control, you can handle 2 pipes synchronously & rapidly and get the final production with precise angles & perfect surface without wrinkles. The 2 angles can be different & adjustable. So this machine is the most proper machine for general two-end bending.
  • Both manual and automatic operation are available.
  • The machine is equipped with emergency stop device.
  • Bending angles are adjustable from 0° ~ 180°.
  • High production capacity: Max.720 pcs of two-end bending pipes in one hour.
  • The distance between the center line of 2 main shafts are 180 m/m (Min.) & 930 m/m (Max.) for CR-T38 type.

Production capacity for CR-T50:

  1. Produce 1 pipe each time for O.D. 51 ~ O.D. 38 m/m .
  2. Produce 3 pipes (Max.) at the same time for O.D. 22 m/m & smaller pipes. (Tube w.t ≤ 1.5 m/m)
