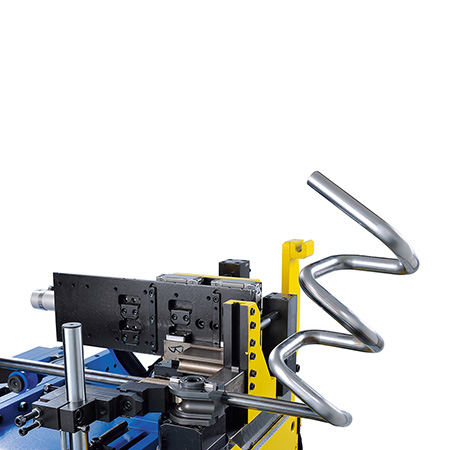

YLM – CNC Hybrid Tube Bending Machine – CNC-25MS-5A
Specifications
| Make | YLM |
|---|---|
| Model | CNC-25MS-5A |
Description
YLM – CNC Hybrid Tube Bending Machine – CNC-25MS-5A
Standard machine design features on CNC benders include:
- Air conditioned electrical enclosure to maintain temperature and prolong system components
- Electrical power filtering to stabilise incoming power supplies for an efficient, consistent operation
- Control electrical cabinet isolation to minimise vibration transfer to electronics
- Oil filtering system with condition indicator to protect oil supply
- Radiator type oil cooler standard on most models, available on others to maintain oil temperature
- Vibration control machine mounting pads to reduce machine movement during operation
- Spacious well-labelled / layout of electrical system for ease of maintenance and efficient operation
- Remote control console for placement in operational location based on application to reduce operator interface time to increase production
- Foot pedal cycle start operation for quick, safe loading, increasing production
- Safety mat and safety plates with multiple emergency stop placement for operational safety
- Integrated gearbox reducer with multi layer drive chain assembly for smooth, controlled operational start / stop movement of bend arm, extending the chain life many years beyond traditional hydraulic benders.

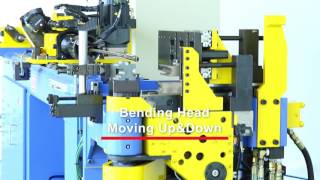

- Low profile bend head design uniquely offset from center of machine frame, providing clearance for complicated parts that can not be obtained on other brands of equipment.
- Full capacity feed through collect for working with long material that requires additional length beyond the front collect stop system, reducing the need for extended models in most applications.
- Low decibel level production noise to reduce operator fatigue and general improvement of shop conditions
- Low working heights for ease of operatio,n increasing production, and improved safety of material handling
- Multiple axis operation reducing cycle time and interference for optimum production
Features of Hybrid Tube Bender:
- The series of machine employs hydraulic valves and integrated circuits to control bending motion individually, which will extend the service life of he hydraulic parts.
- Large bending machine is equipped with a manually adjusted digital flow regulation valve to control the speed of bending motion.
- Servo drive provides high accuracy in bending positioning, that ensures high-quality bending.
CNC pipe bender, Hydraulic Pipe Bending Machine, tube bender with hydraulic tube bending machine, CNC Automatic Tube Bending Machine
Suitable industries: Automotive brake piping, Fuel piping, Air conditioner piping, Heater, Car frame, Handle bar, Car seat, Furniture

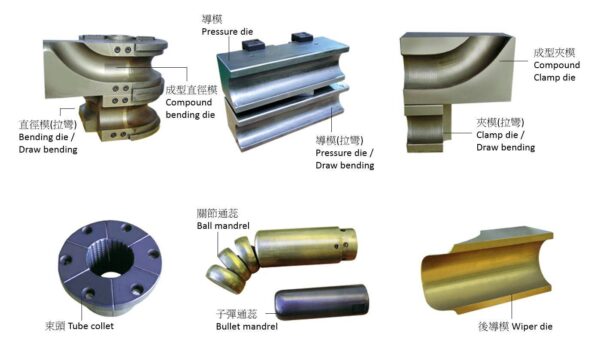

- Draw+Rollers-Bending
- Multi Axis Servo-Motor controlled
- 3D Simulation of Bending Process and Application
Specifications:
- Machine Name CNC-25MS-5A
- Max. tube o.d. bending capacity(Mild steel CLR1.5D)(mm) 25.4×1.6
- Range of CLR (°) 100
- Max. bending radius difference (mm) 40
- Max. bending angle (°) 190
- Mandrel working distance (mm) 1800
- Manufacture speed Max. Tube feeding speed (mm/sec) 1458
- Tube rotation speed (mm/sec) 562
- Max. Tube bending speed (mm/sec) 300
- Repeatability Tube feeding Precision (mm) ± 0.1
- Tube rotation Precision (mm) ± 0.1
- Tube bending Precision (mm) ± 0.1
- Overall weight (Kgs) 1800
- Machine length (mm) 3510
- Machine width (mm) 1200
- Machine height (mm) 1670
- Operating height (mm) 1085
