OSCAM – Portable Pneumatic Shears Range

Specifications

Description

OSCAM – Portable Pneumatic Shears Range

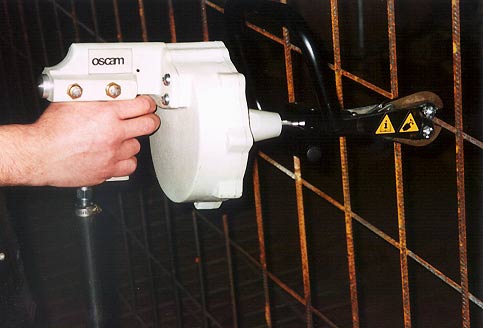

These machines are fast, light, easy to handle and to use, ideal for quickly cutting electro-welded wire mesh. Also very useful for cutting pre-compressed mesh and, in general, small-diameter lengths of iron, bundles, etc. With minimal maintenance, you obtain high yield.

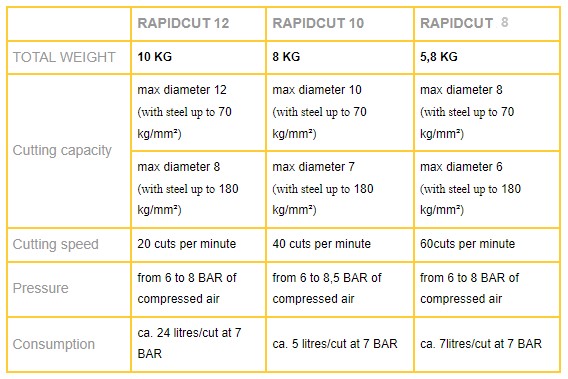

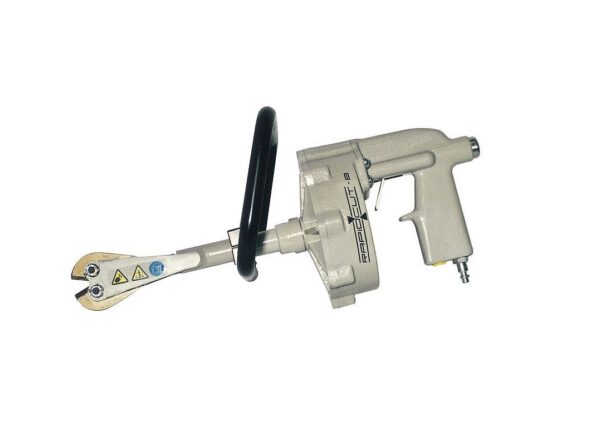

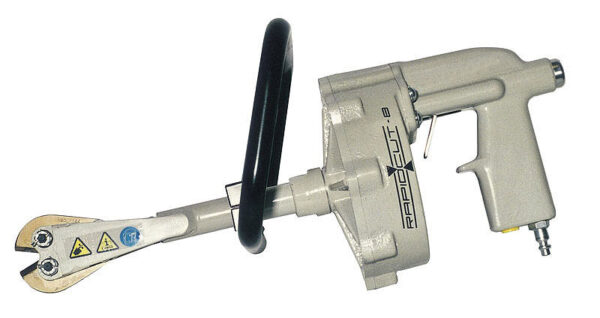

Model: Rapid Cut 8

• Weight 5.8 kg
• Max cutting capacity: diameter 8 (with steel up to 70 kg/mm²); max diameter 6 (with steel up to 180 kg/ mm²)
• Cutting speed: 60 cuts per minute
• Pressure: from 6 to 8 bar of compressed air
• Consumption: ca. 7 litres/cut at 7 bar

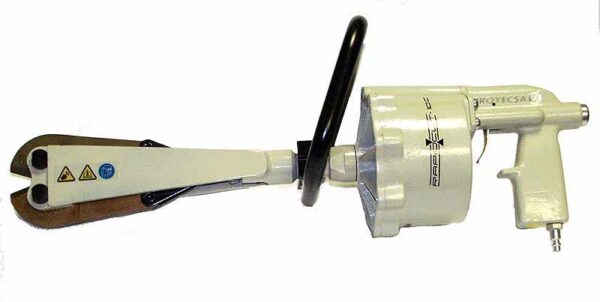

Model: Shear Rapid Cut 10

• Weight 8 kg
• Max cutting capacity: diameter 10 (with steel up to 70 kg/mm²); max diameter 7 (with steel up to 180 kg/ mm²)
• Cutting speed: 40 cuts per minute
• Pressure: from 6 to 8.5 bar of compressed air
• Consumption: ca. 15 litres/cut at 7 bar

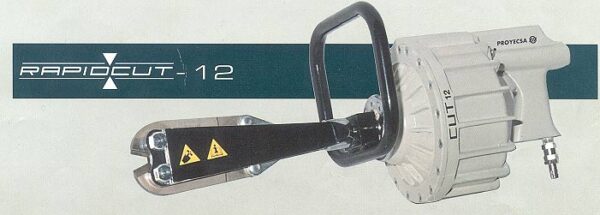

Model: Rapid Cut 12

• Weight 10 kg
• Max cutting capacity: diameter 12 (with steel up to 70 kg/mm²); max diameter 8 (with steel up to 180 kg/ mm²)
• Cutting speed: 20 cuts per minute
• Pressure: from 6 to 8 bar of compressed air
• Consumption: ca. 24 litres/cut at 7 bar
