OSCAM – Portable Electrically Operated Shears Range

Specifications

Description

OSCAM – Portable Electrically Operated Shears Range

The portable electrically operated shears for reinforced concrete rods combine power and speed with low weight and easy handling.
Their minimum overall dimensions make them particularly suitable for cutting electrowelded wire mesh, rods protruding from casting, bundles, renovation work, etc.
Great durability and minimal maintenance needed.

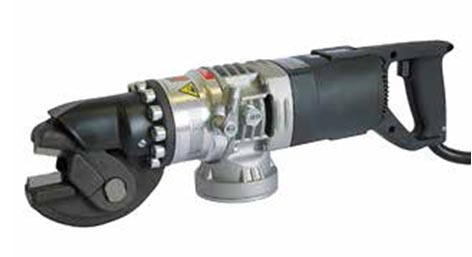

Model: Electric Portable Shear MU16

• Total weight: 9,1 kg
• Max cutting capacity diameter: 16 mm R=70 Kg/mm2
• Connection voltage: VOLT 230/50 Hz, single-phase
• Power consumption: 1100 W
• Cutting pressure: 14 ton./560bar
• Dimensions: 520 x 120 x 130 mm

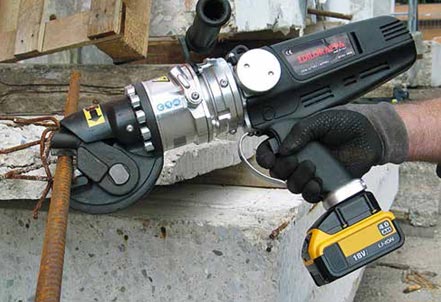

Model: Electric Portable Shear MU16 cordless

• Cutting capacity: Ø max 16 mm – R=70 Kg/mm2
• Voltage: 18V single phase
• Hydraulic Power: 14 ton/560 bar
• Weight: 8,6 kg
• Dimensions: 490 x 395 x 135 mm

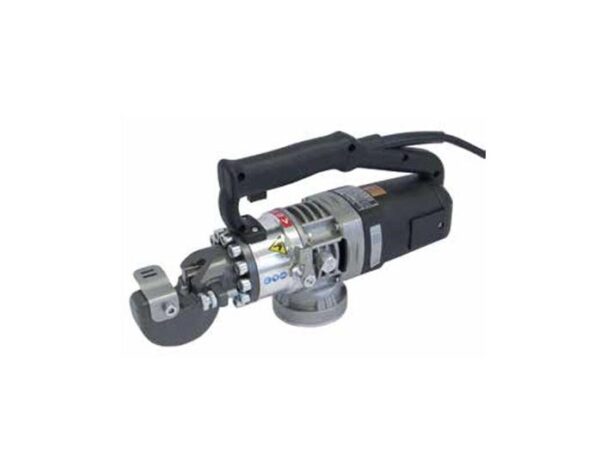

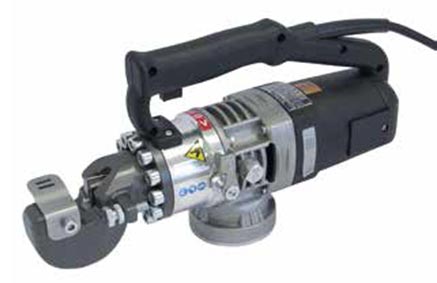

Model: Electric Portable Shear model MU18

• Cutting capacity: Ø max 18 mm – R=70 Kg/mm2
• Voltage: 230V/50Hz single phase
• Watt: 1100
• Hydraulic Power: 14 ton/560 bar
• Weight: 9 kg
• Dimensions: 400 x 120 x 240 mm

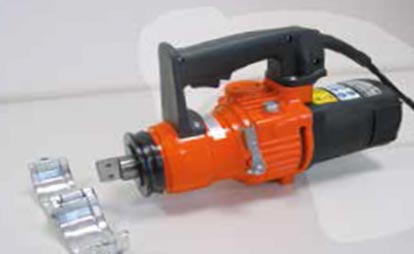

Model: Electric Portable Shear T22 equipped with:

TOOL BODY MU22N WITH ELECTRIC MOTOR
with the following characteristics:

• Cutting capacity: max Ø 22mm
• Voltage: 230V/50Hz single phase
• RPM: 14.000/min
• Motor: HP 1,78
• Hydraulic power: 25ton/570 bar
• Weight: 13,3kg
• Dimensions: 385 x 240 x 180 mm
• CUTTING INTERCHANGEABLE HEAD T22

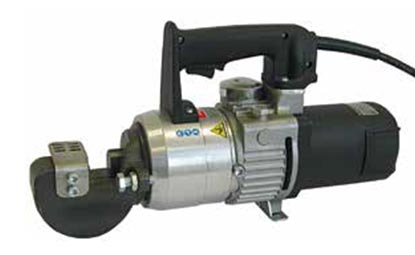

Model: Electric Portable Shear T26N

• Max cutting capacity diameter: 26 mm
• Voltage: VOLT 230/50 Hz, single-phase
• RPM: 14.000/min
• Watt 1150
• Hydraulic power: 32 ton/580 bar
• Weight: 11,5kg
• Dimensions: 466 x 270 x 160 mm

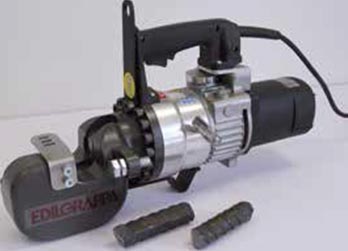

Model: Electric Portable Shear model T32N

• Cutting capacity: Ø max 32 mm – R=70 Kg/mm2
• Voltage: 230V/50Hz single phase
• Watt: 1150
• Hydraulic Power: 46 ton/650 bar
• Weight: 27 kg
• Dimensions: 560 x 335 x 180 mm
