View Brochure

Specifications

Make

JIH

Model

14 A/B Type – 45°

Description

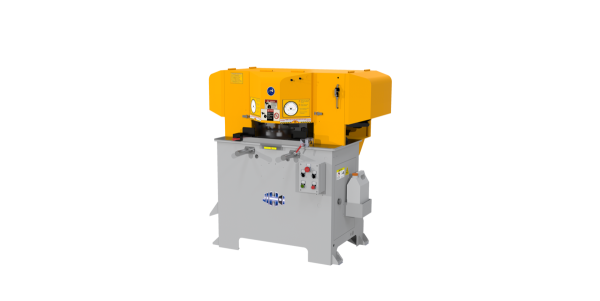

JIH -14 A/B Type – 45° Double Blade Angular Sawing Machine Series

Feature

  • To operate the machine, simply treadle on the foot switch the machine will automatically perform clamping and cutting for convenient operation.
  • Cutting feed is driven by a hydraulic pneumatic power for smooth feed speed.

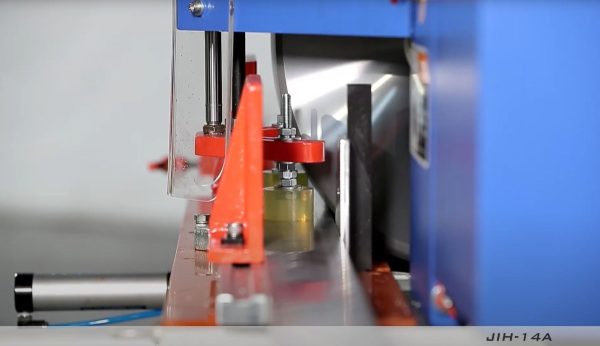

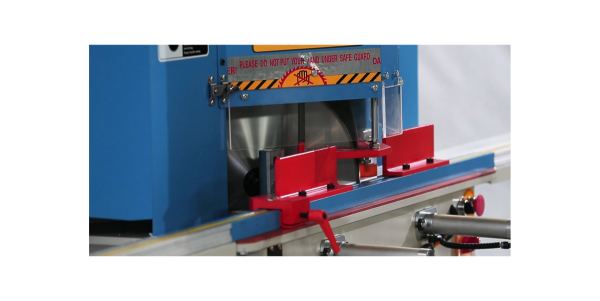

  • Vertical and horizontal work piece clamping design ensures extremely firm clamping for any type of aluminum work piece.
  • Work piece clamping pressure is adjustable to eliminate aluminum deformation problem.

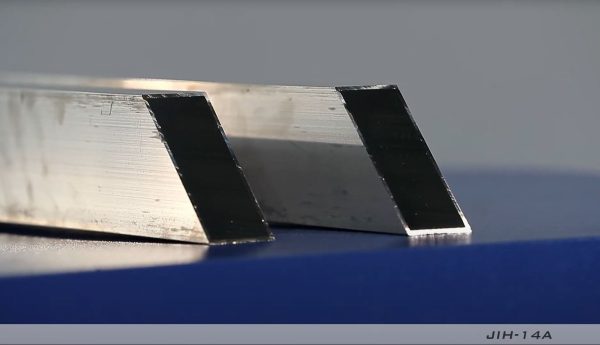

  • Automatic oil mist cooling for saw blades provides burr-free surface of cut while extending saw blade life.

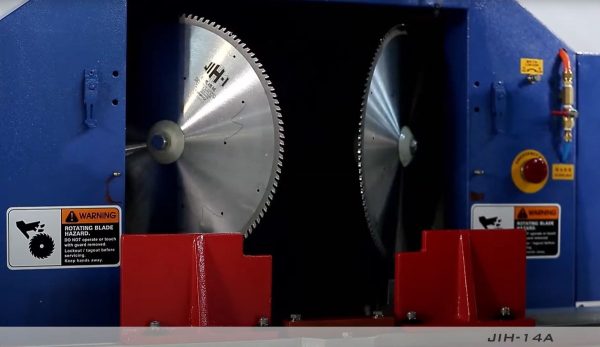

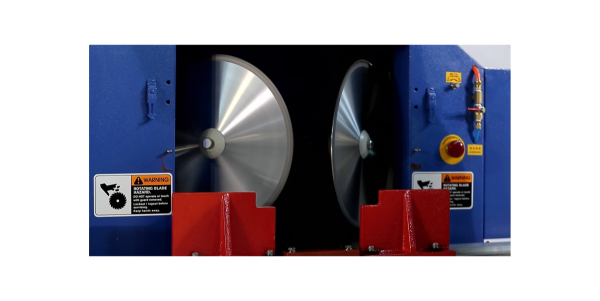

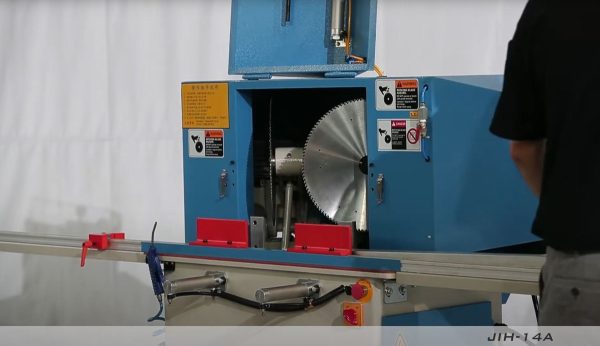

  • Double saw blades construction provides fast cutting time saving and greatly upgrades efficiency.
  • Foot switch control for automatic work piece clamping and cutting.
  • Designed for cutting long and short work pieces.

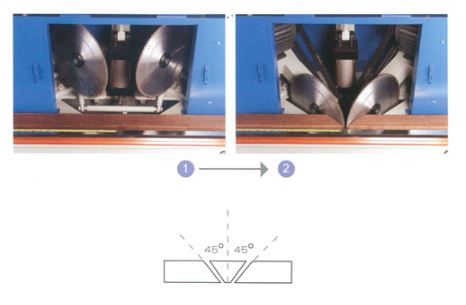

Cutting method: rocking arm drive

Optional cutting: choice of individual right or left cutting(To avoid material kicking)

Optional: Infeed, Outfeed Roller Table, With Auto3000 for Automatic Positioning, Automatic Feeding (Pushing), Automatic Cutting, Saw Blade



ModelJIH-14 A TypeJIH-14 B Type
Cutting Angle45°45°

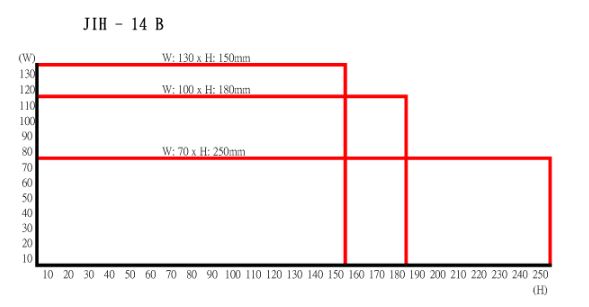

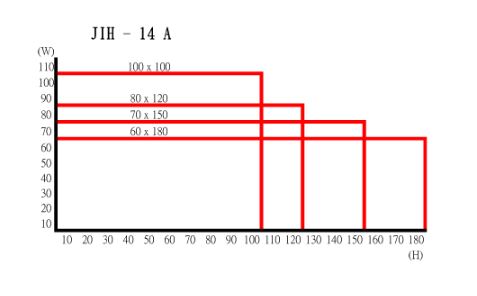

Capacity (H x W) mm100 x 100 or 140 x 90mm150 x 130,180 x 100,250 x 70 mm
Saw Blade Sizes14” x 1” x 2 pcs18” x 1” x 2 pcs
Spindle Speed3,400 R.P.M.3,000 R.P.M.
Motor2HP x 23HP x 2
Clamping Way3(Vertical clamping x Horizontal clamps)3(Vertical clamping x Horizontal clamps)
Table Area870 x 260 mm870 x 290 mm
Table Height From Floor830 mm800 mm
Infeed/Outfeed Conveyor Length2,500 mm2,500 mm
Air Pressure4-6 kg/cm24-6 kg/cm2
Machine Dimensions
( LxWxH )
1,370 x 820 x 1,310 mm1,520 x 930 x 1,440 mm
Packing Dimensions
( LxWxH )
1,490 x 950 x 1,510 mm1,640 x 1,050 x 1,640 mm
Net/Gross Weight310 / 410 kgs500 / 610 kgs
