View Brochure

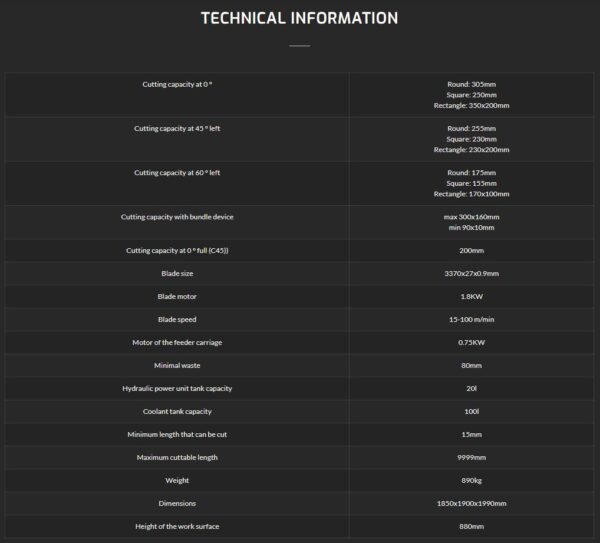

Specifications

Make

IMET

Model

CUBO 350 NC FLAT

Description

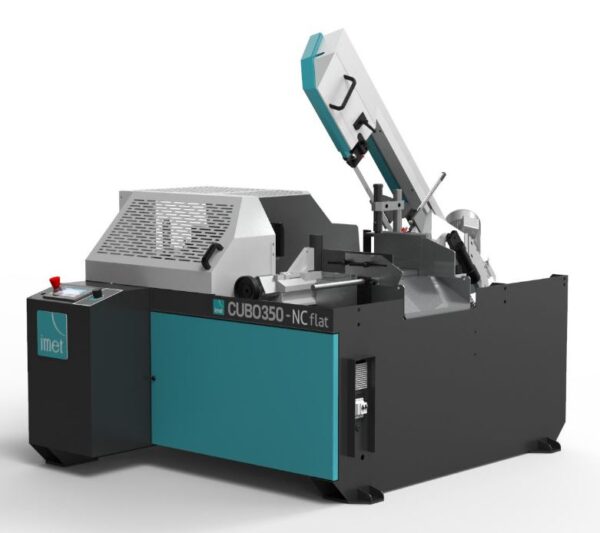

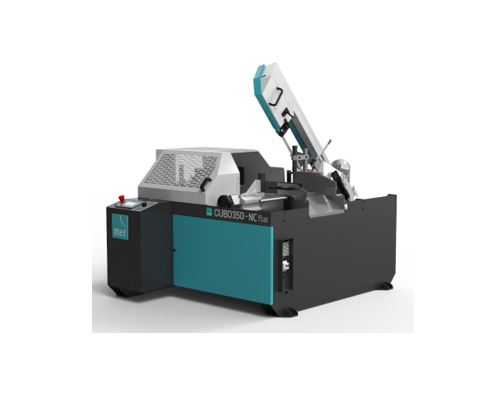

IMET – CUBO 350 NC FLAT Bandsaw

CUBO 350 NC FLAT is the numerically controlled automatic hydraulic sawing machine for the production of pipes in series, profiles, beams and medium-sized bars with the possibility of cutting up to 60 ° to the left in an automatic cycle. Through the Industry 4.0 Ready system, CUBO 350 NC FLAT can be controlled and programmed remotely.

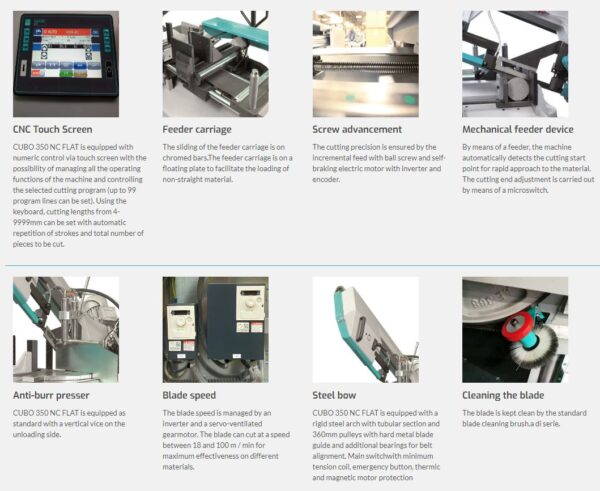

CNC Touch Screen

  • CUBO 350 NC FLAT is equipped with numeric control via touch screen with the possibility of managing all the operating functions of the machine and controlling the selected cutting program (up to 99 program lines can be set). Using the keyboard, cutting lengths from 4-9999mm can be set with automatic repetition of strokes and total number of pieces to be cut.

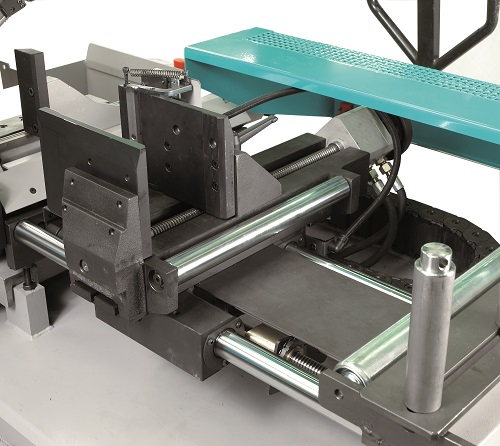

Feeder carriage

  • The sliding of the feeder carriage is on chromed bars. The feeder carriage is on a floating plate to facilitate the loading of non-straight material.

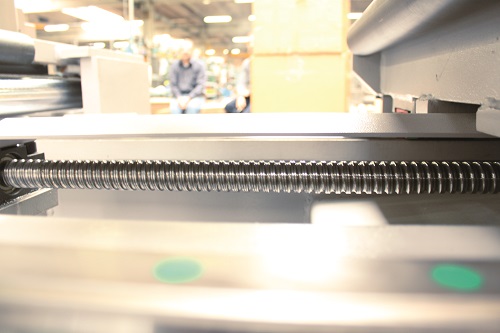

Screw advancement

  • The cutting precision is ensured by the incremental feed with ball screw and self-braking electric motor with inverter and encoder.

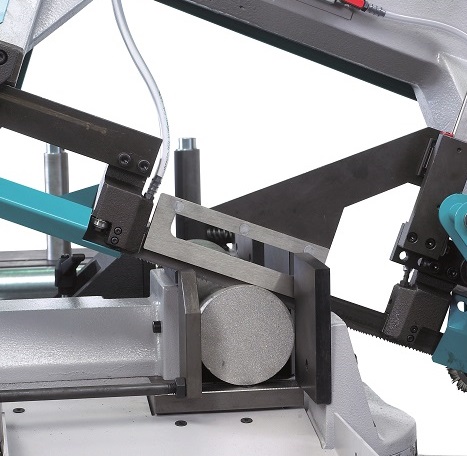

Mechanical feeder device

  • By means of a feeder, the machine automatically detects the cutting start point for rapid approach to the material. The cutting end adjustment is carried out by means of a microswitch.

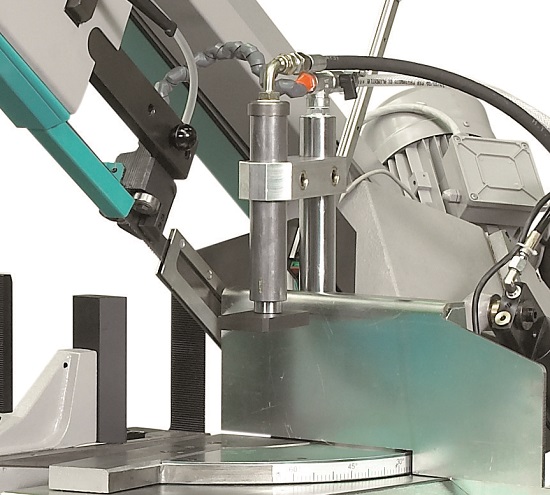

Anti-burr presser

  • CUBO 350 NC FLAT is equipped as standard with a vertical vice on the unloading side.

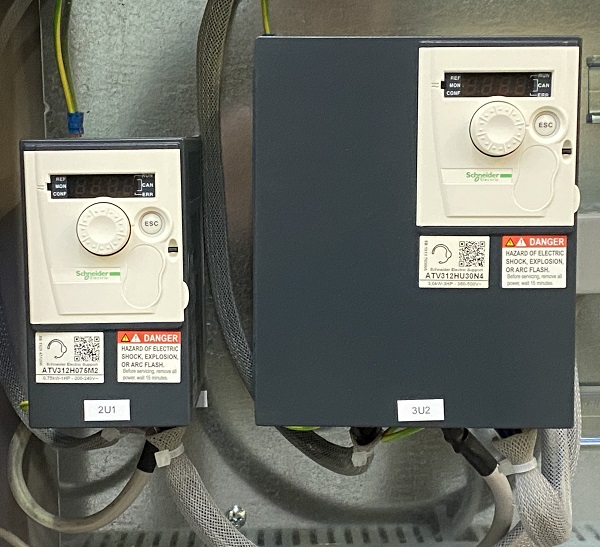

Blade speed

  • The blade speed is managed by an inverter and a servo-ventilated gearmotor. The blade can cut at a speed between 18 and 100 m / min for maximum effectiveness on different materials.

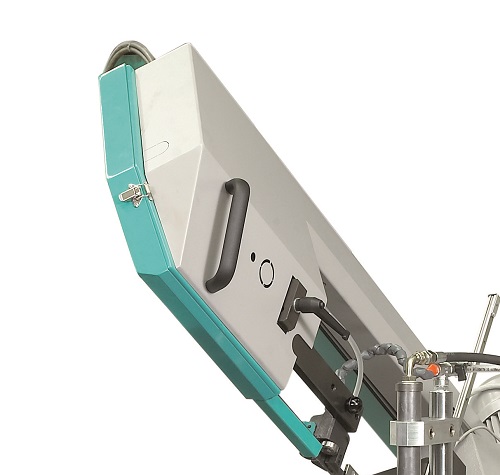

Steel bow

  • CUBO 350 NC FLAT is equipped with a rigid steel arch with tubular section and 360mm pulleys with hard metal blade guide and additional bearings for belt alignment. Main switch with minimum tension coil, emergency button, thermic and magnetic motor protection

Cleaning the blade

  • The blade is kept clean by the standard blade cleaning brush
