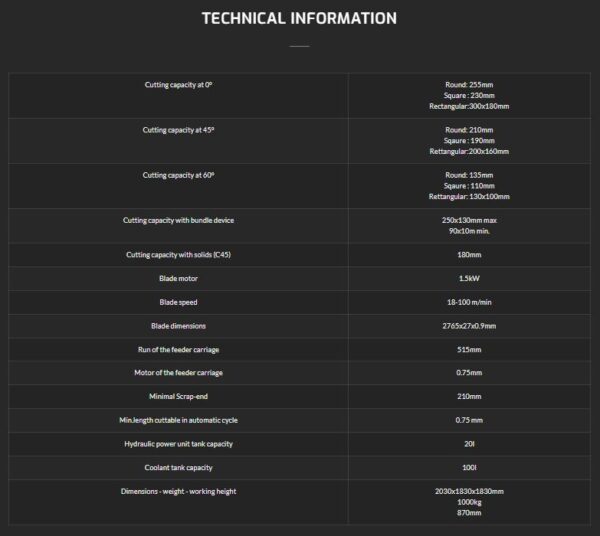

Specifications

Make

IMET

Model

CUBO 300 NC

Description

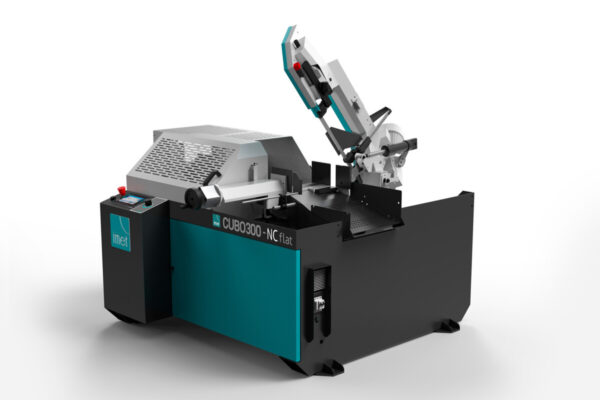

IMET – CUBO 300 NC FLAT CNC Automatic Bandsaw

IMET range of bandsaws, circular saws and sawing machines.
Products to meet the increasingly complex client needs, in compliance with the highest standards of safety and environment.

CUBO 300 NC FLAT is the new IMET automatic sawing machine, part of the innovative CUBO Series. Numerical control machine with touch screen display, it is a professional work tool with great ease of use, ideal fori utilizzo, ideal for the production of medium-sized pipes and bars, bow rotation is manual while it has automatic integrated material feeder.

CNC automatic bandsaw, hydraulically driven. Mitre cutting from 0° to 45° left in automatic cycle and from 0° to 60° left in semiautomatic cycle. CUBO 300-NC-FLAT is an Industry 4.0 tool and has the possibility to use it remotely.

  • Numerical control automatic sawing machine.
  • Easy stops at 0°, graduated plate to identify different angles.
  • High blade tensioning 1700 kg / cm² to increase cutting accuracy and reduce cutting time.
  • Up to 99 different cutting lengths and number of cuts can be memorized, with the possibility to repeat them more than once.
  • CNC with programming of all operations; automatic calculation of the blade thickness.
  • Machine status shown on display, including blade speed, piece counter, and working anomalies. setting of the cutting lengths, minimal scrap-end 210 mm. Connection for loading table with 2 vertical rollers, unloading slide, connection for unloading table for cutting pieces.
  • Main switch with minimum tension coil, emergency button, thermic and magnetic motor protection.
  • Cutting capacity: round till 255 mm., square till 240 mm. and rectangular till 300×180 mm.

*The modem for Industry 4.0, teleservice and remote control is supplied as an optional

Numerical control automatic sawing machine

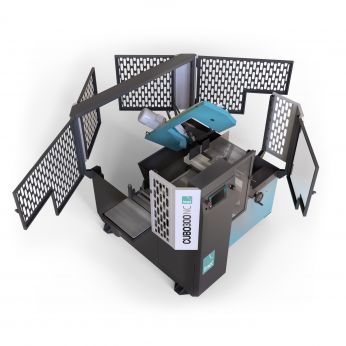

CUBO 300 NC FLAT is the new IMET automatic sawing machine, part of the innovative CUBO Series. Numerical control machine with touch screen display, it is a professional work tool with great ease of use, ideal for the production of medium-sized pipes and bars, bow rotation is manual while it has automatic integrated material feeder.

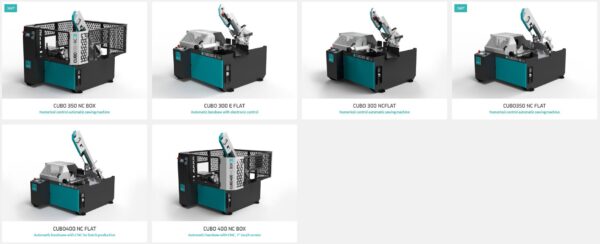

CUBO Series

CUBO Series is the IMET line of automatic sawing machines developed to optimize the user-experience thanks to the introduction of various stylistic and functional innovations. The ease of use and operator safety during the cutting process makes it the ideal professional tool in any environment.

Touch screen display

The touch screen display allows to set and manage all the machine settings like the total amount of pieces, the cutting lengths and error revelation during the cutting process.

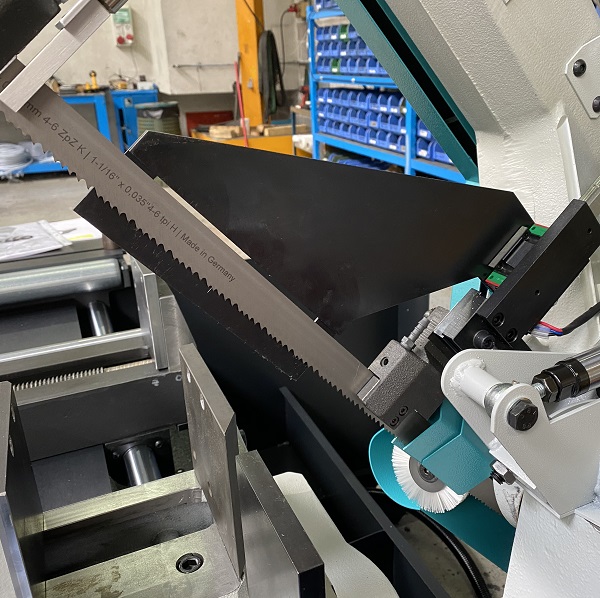

Automatic detection device

CUBO 300 NC-FLAT is equipped with an automatic detection device of the cutting material to optimise the cutting process: the device facilitates the approach to the material during the descent of the bow, also adjusting the end of the cut and the ascent of the blade.

Numerical control

It allows to store up to 99 cutting programs by automatically calculating the total thickness of the blade of the pieces to be cut, settings of the cutting lengths and running of the automatic cutting cycle.

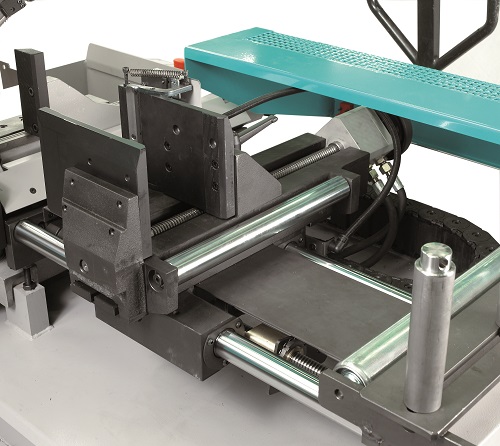

Feeder carriage

The feeder carriage has a maximum stroke of 515mm. The sliding takes place on chromed bars with high precision of the positioning due to the incremental feeding on recirculating ball screw by self-braking electric motor with inverter.

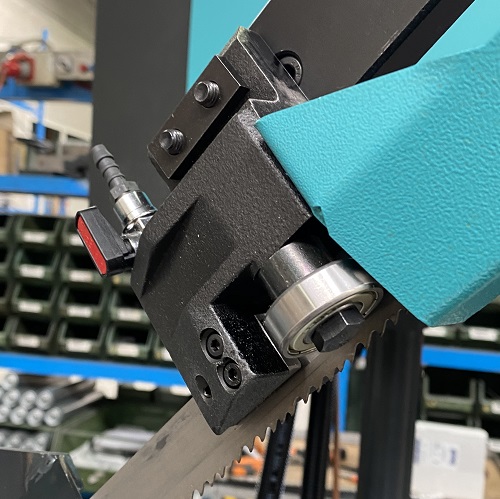

Blade guides

The blade guides have hard metal pads and additional front bearings for a better alignment of the blade during the cutting.

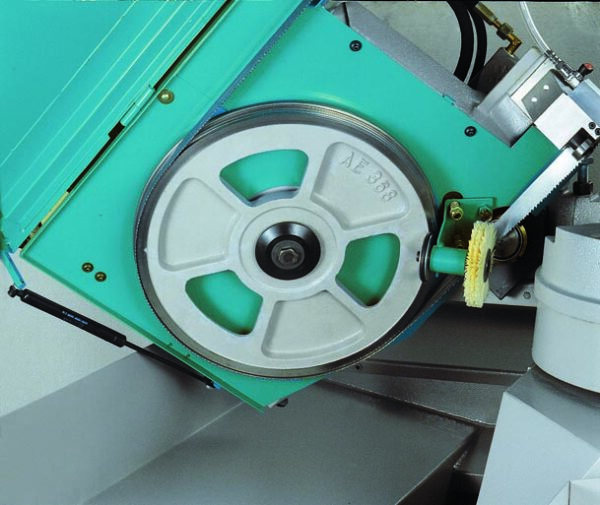

Cleaning of the blade

CUBO 300 NC FLAT mounts a motorized nylon blade cleaning brush to ensure maximum efficiency during the cutting process.
