IMET – Autocut Bandsaw: BS 350 GH [Made in Italy]

View Brochure

Specifications
Description

Specifications

Make	IMET
Model	BS 350 GH
Label	Made in Italy

Description

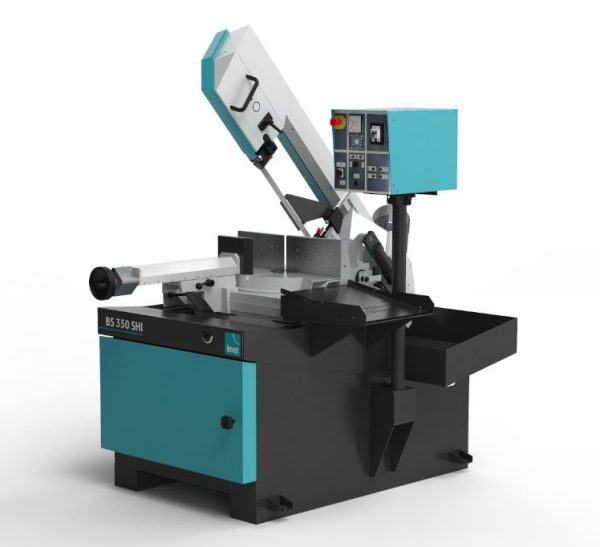

IMET – BS 350 GH – Autocut Bandsaw

Delahenty Machinery offers a range of bandsaws, circular saws and sawing machines.
Products to meet the increasingly complex client needs, in compliance with the highest standards of safety and environment.

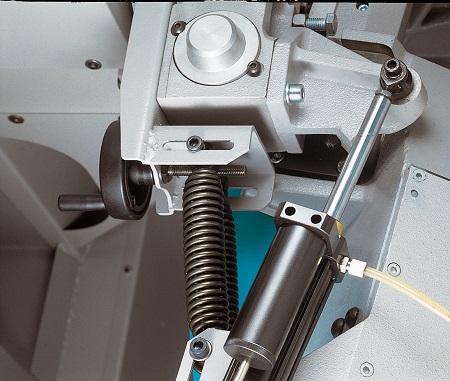

The BS 350 GH sawing machine is a highly versatile and reliable machine with autonomous descent for cutting small and medium series productions, both mechanical and carpentry, for angle cuts up to 45 ° right and up to 60 ° left.

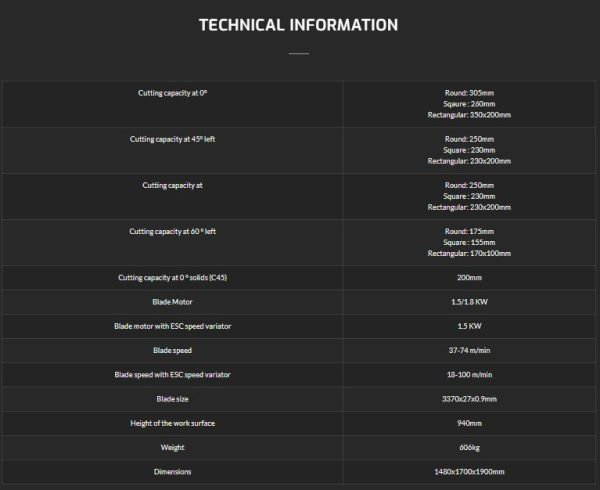

TECHNICAL INFORMATION

Cutting capacity at 0°	Round: 305mm Square: 260mm Rectangular: 350x200mm
Cutting capacity at 45° left	Round: 250mm Square: 230mm Rectangular: 230x200mm
Cutting capacity at 45° right	Round: 250mm Square: 230mm Rectangular: 230x200mm
Cutting capacity at 60° left	Round: 175mm Square: 155mm Rectangular: 170x100mm
Cutting capacity at 0° solids (C45)	200mm
Blade Motor	1.5/1.8 KW
Blade motor with ESC speed variator	1.5 KW
Blade speed	37-74 m/min
Blade speed with ESC speed variator	18-100 m/min
Blade size	3370x27x0.9mm

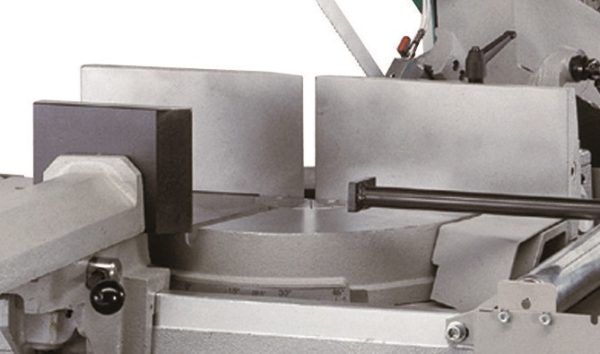

Height of the work surface	940mm
Weight	606kg
Dimensions	1480x1700x1900mm
