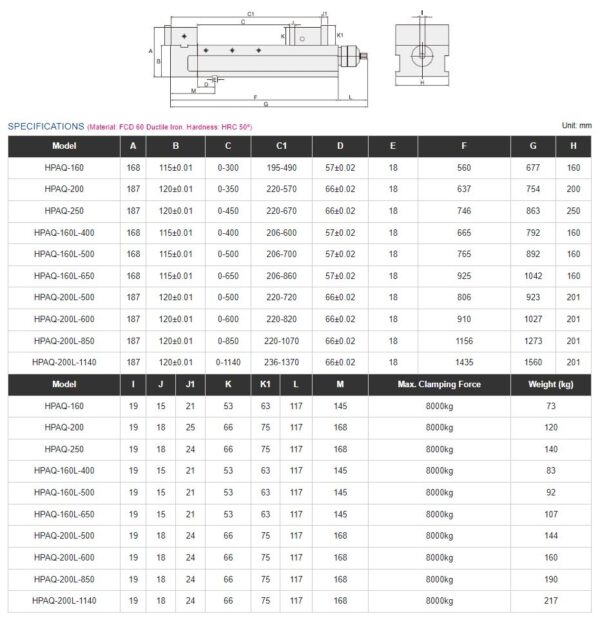

Specifications

Make

HOMGE

Description

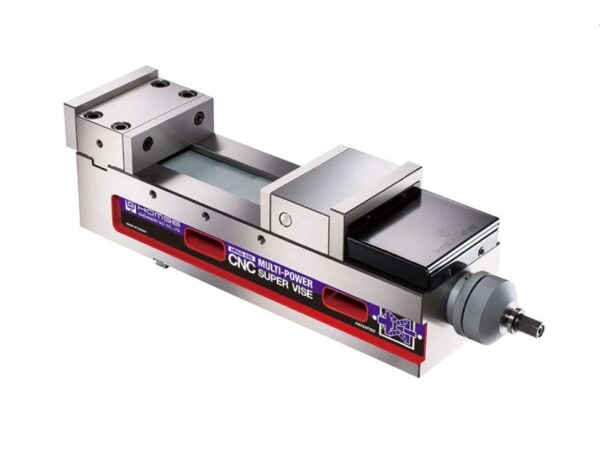

HOMGE – Multi-Power CNC Super Vice – HPAQ-160,200,250,160L,200L

Delahenty Machinery sell a wide range of HOMGE milling accessories.

HOMGE – Multi-Power CNC Super Vice  – HPAQ-160,200,250,160L,200L

Features

  • Mechanical, good as heavy-duty vice
  • Shortest Length with Big Jaw Opening
  • High Accuracy and Repeatability
  • Special MULTI-POWER design enhances clamping force of 0~8000KG
  • Suitable for Gantry-Type machining centres

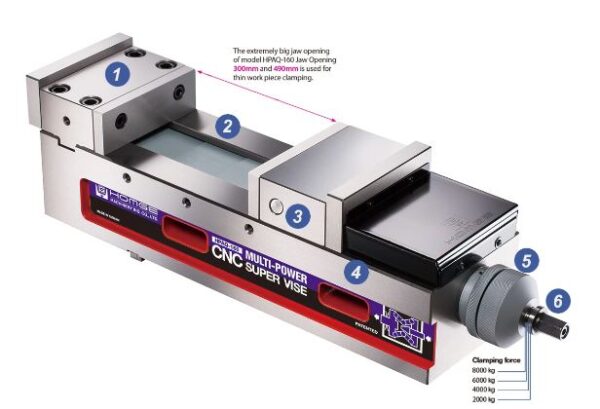

  1. Vise Fixed Jaw is made of high-quality steel and HARDENED to HRC 55º. Vice body is made of Ductile Iron above FCD 60 grade for high precision and durability. With a force of 4500kg, the shape will deflect less than 0.005mm.
  2. Slide ways are HARDENED to HRC 50º to further increase durability and maintain positioning height over long use.
  3. The Special ANGLE-LOCK SYSTEM with compact design and high-grade iron of over FCD 60 grade for high rigidity automatically pulls the workpiece down to the accurate position of within 0.005mm under 4500kg of pressure. This vice is most suitable for precision mould making on Machining Centres.

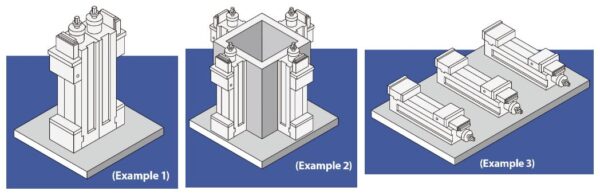

  4. Vise can be mounted horizontally or vertically.
  5. Adjusting stop ring: This simple and effective pre-setting device enables to pre-set each desired clamping force and it guarantees to repeat each clamping operation at the same clamping force.
  6. The patented MULTI-POWER SYSTEM built of HIGH-GRADE BEARING STEEL doubles the clamping force. The pressure is more consistent and eliminates all leakage and maintenance problems associated with Hydraulic Vices.
  • With the first half a turn the vice will clamp with 2500kg pressure.
  • With a second half turn it will apply 4500kg of clamping force.
  • This special patented system makes the clamping force constan

Standard Acessories

  • 2 pcs of Alignment Wedge
  • 4 pcs of Clamp
  • 1 pc of Handle
