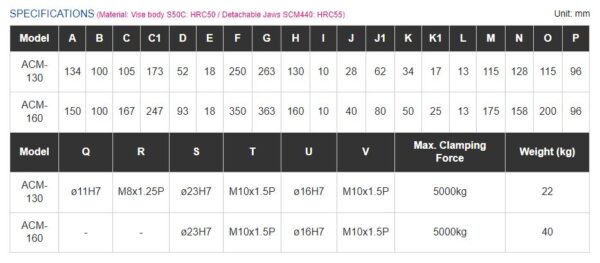

Specifications

Make

HOMGE

Description

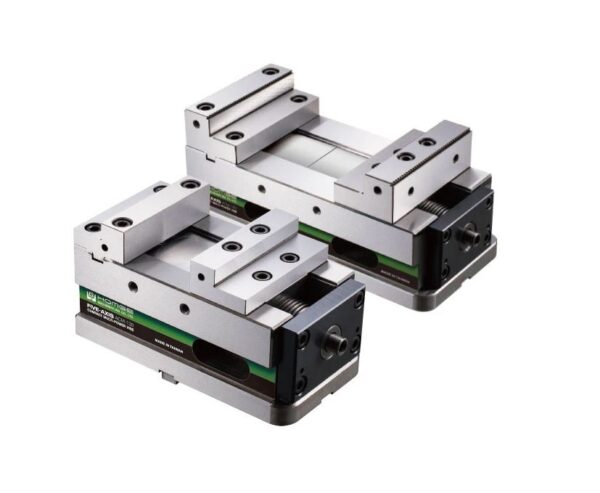

HOMGE – 5-Axis Compact Multi-Powered Vice ACM-160 and ACM-130

Delahenty Machinery sell a wide range of HOMGE milling accessories.

Five-axis compact multi-power vise – acm-160 and acm-130

Features

  • Compact design with big jaw opening, which enhances machine space utilization.
  • Vise jaws are made of High quality Tool Steel (SCM440) and Hardened to achieve HRC 55 , which makes vise clamp the workpieces easily and firmly.
  • Vise body is made of Ductile lron above FCD 60 grade and its slideways are hardened to HRC 52 , which makes the vise tensile strength with high precision accuracy.
  • The patented MULTI-POWER SYSTEM is built of high grade BEARING STEEL which doubles the clamping force. Adjustable clamping force 5000kg. With this special patented system the pressure is more consistent and eliminates oil leakage and maintenance problems associated with Hydraulic Vises.
  • Special Leadscrew Covers protect Leadscrew from swarf and avoid any possible damage to internal parts.

Standard Accessories:

  • 2 pcs of Alignment Wedge
  • 4 pcs of Clamp
  • 1 pc of Wrench

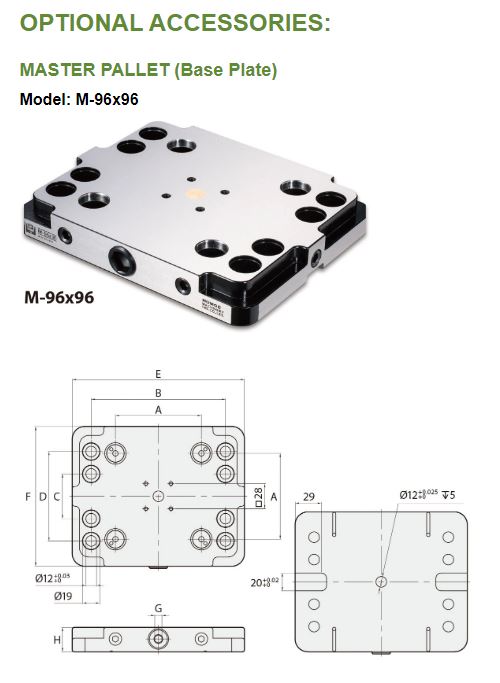

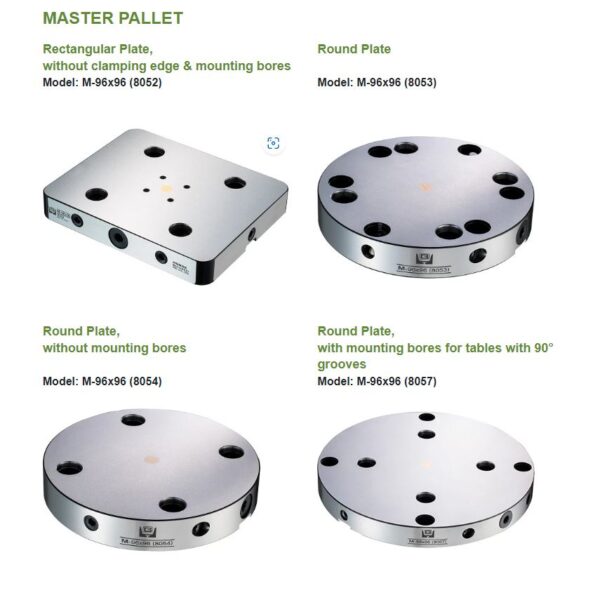

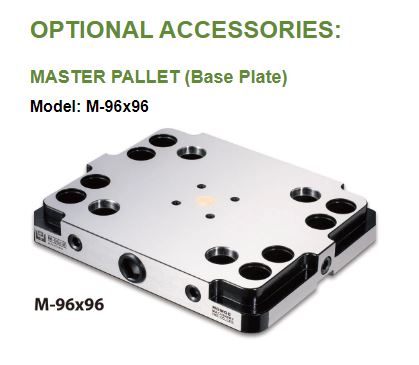

Optional Accessories:

  • Serrated Jaws
  • Soft Jaws
