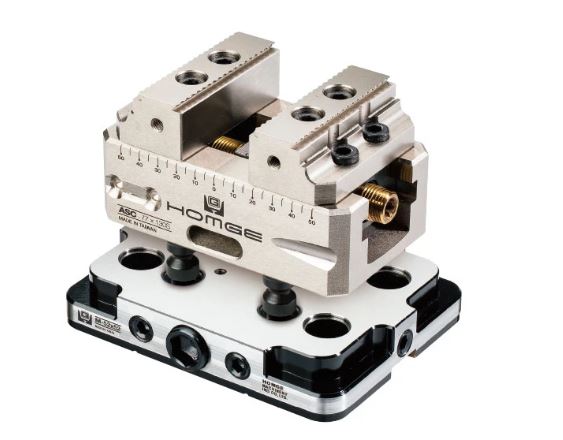

HOMGE – 5-Axis Adjustable Self-Centreing Vice (ASC-S)

Delahenty Machinery sell a wide range of HOMGE milling accessories.

Five-axis Adjustable Self-centering Vise (Asc-s)

Model:ASC-77X102S, 77X130S, 77X170S, 77X210S, 127X160S, 127X210S, 127X260S, 127X310S, 127X360S

  • Significantly upgrade CNC 5-Axis Machines
  • Special 45° dovetail structure with teeth
  • The patented calibration system can regulate clamping centre easily and rapidly

Features:

  1. Vice body is made of High quality Steel (S50C) and its slideways gone through high-frequency hardening to achieve HRC50, which makes the whole part durable.
  2. Detachable jaws are made of High quality Tool Steel (SCM440) and gone through carburizing to achieve HRC55. Since both sides are fixed size and able to be used as a datum, users can reverse them to increase clamping range.
  3. The vice’s clamping force can achieve 1300KG, the repeatability positioning precision of its clamping centre is within 0.015mm.
  4. Users can calibrate the clamping centre of vice by adjusting the screws on both ends.
  5. The 45° dovetail structure with teeth on the upper jaw ensures the bottom of the workpiece to be firmly clamped.
