FONG HO – FHC 485 SA – Circular Cold Saw

Specifications

Description

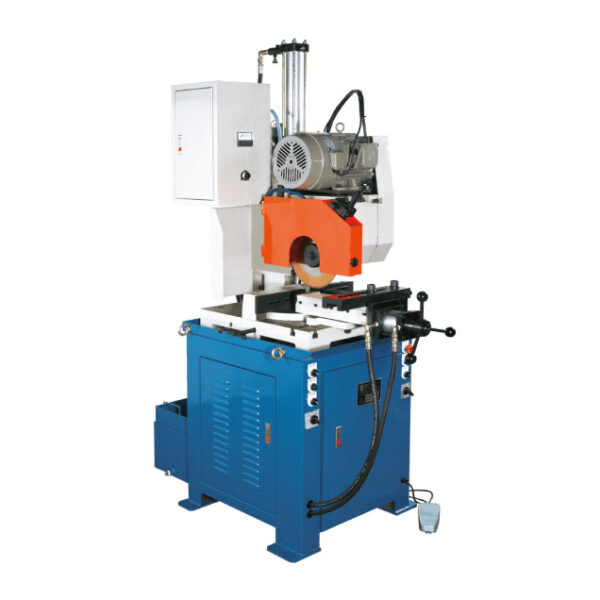

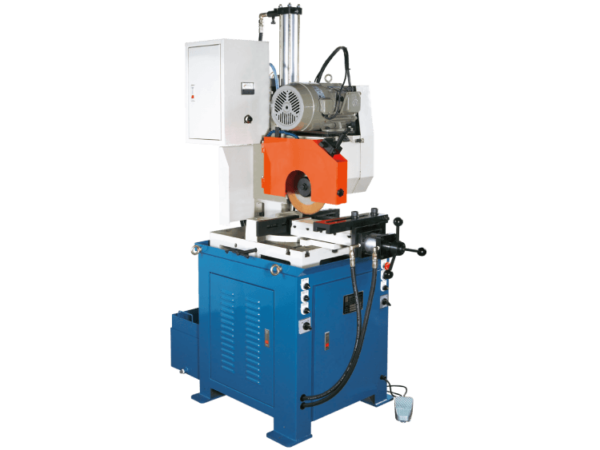

FONG HO – FHC 485 SA – Circular Cold Saw

• Sawblade HSS Ø250 – Ø425mm, Ø350mm. (standard)
• Hydraulically operated type.
• Semi-automatic operation for clamping and cutting off.
• Tool gap compensation device. ( hydraulic )
• Movable guard. (optional)
• Frequency Inverter.

Standard Equipment:

• Motor, switch, complete cooling system, adjustable stop, service tools.

Optional Equipment:

• Saw blade, movable safety guard, cutting fluid.

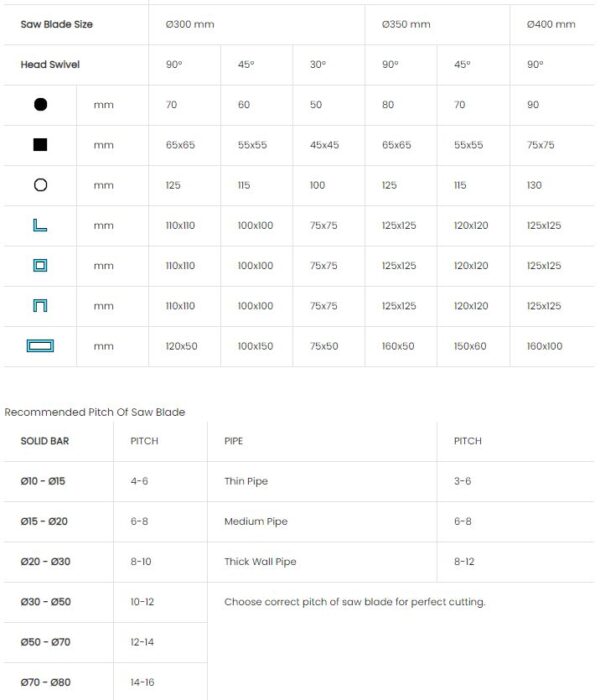

MODEL		FHC-425SA, FHC-485SA Series
Saw Blade Size		Ø300 mm			Ø350 mm		Ø400 mm

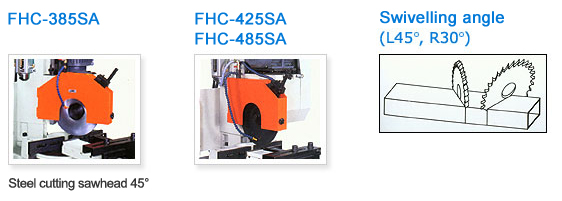

Head Swivel		90°	45°	30°	90°	45°	90°
	mm	70	60	50	80	70	90
	mm	65×65	55×55	45×45	65×65	55×55	75×75
	mm	125	115	100	125	115	130
	mm	110×110	100×100	75×75	125×125	120×120	125×125
	mm	110×110	100×100	75×75	125×125	120×120	125×125
	mm	110×110	100×100	75×75	125×125	120×120	125×125
	mm	120×50	100×150	75×50	160×50	150×60	160×100
