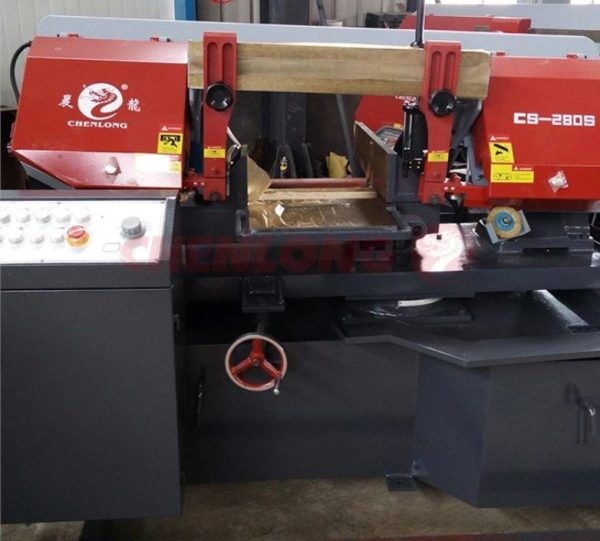

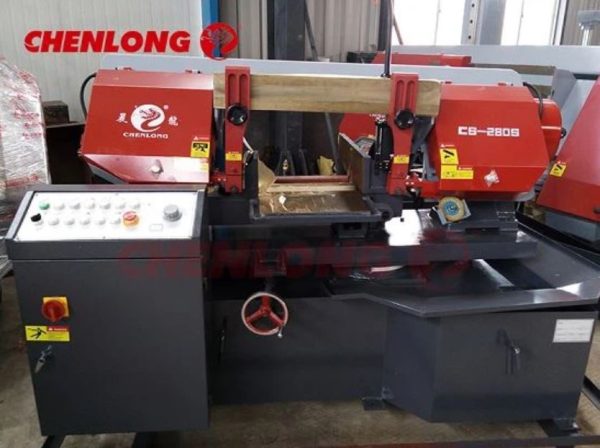

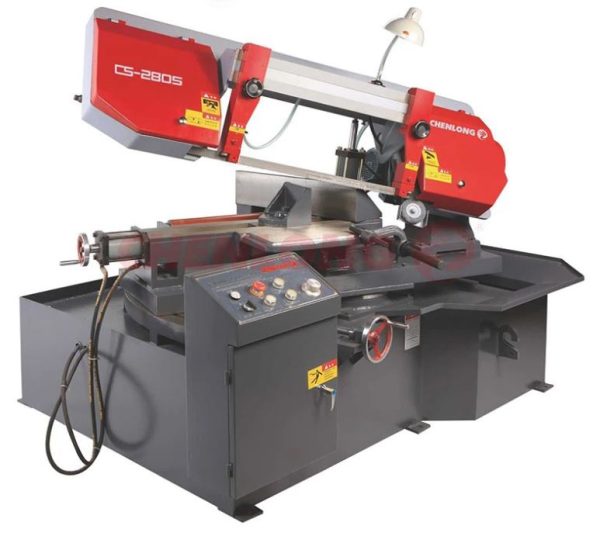

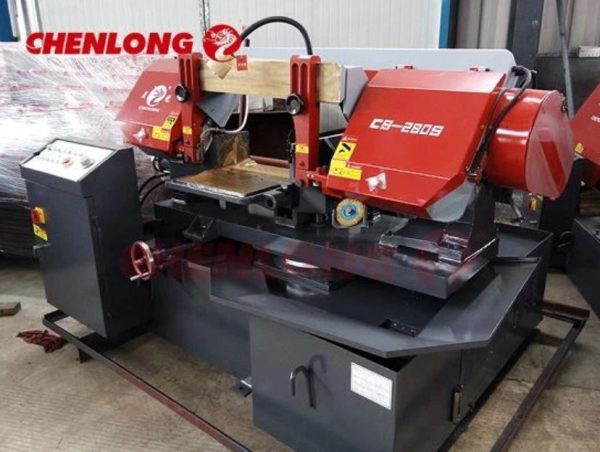

CHENLONG – CS-280S – Semi Automatic Miter Cutting Band Saw Machine
Specifications
| Make | CHENLONG |
|---|---|
| Model | CS-280S |
Description
CHENLONG – CS-280S – Semi Automatic Miter Cutting Band Saw Machine
This band sawing machine is a semi automatic band sawing machine, which is mainly used for sawing small and medium-sized profiles. The angle rotation is manual controlled.
- Miter Cutting Band Sawing Machine CS-280S Is A Semi-Automatic Angle Cutting Machine, Cutting Range Is 0~45 Degree.
- 5 Shifts Of Blade Line Speed.
- It Is Mainly Used For Angle Processing Of Profiles
Specifications
| Product Name | Miter Cutting Band Sawing Machine | |
| Brand | CHENLONG | |
| Model | CS-280S | |
| Maximum Cutting Size (0°Round) | 280mm | |
| Maximum Cutting Size (0°Quadrate) | 400×200mm | |
| Maximum Cutting Size (45°Round) | 280mm | |
| Maximum Cutting Size (45°Quadrate) | 220×200mm | |
| Blade Line Speed | 25/35/45/60/80 m/min | |
| Blade Size | 34×1.1×3860 mm | |
| Blade Guides | Carbide And Bearing Blade Guides | |
| Blade Cleaning | Wire Brush & Flood Coolant | |
| Blade Tension | Manual | |
| Motors | Main Motor | 3kw |
| Hydraulic Motor | 0.75kw | |
| Water pump Motor | 60w | |
| Work Vise Control | Hydraulic | |
| Machine Size(L×W×H)mm | 2020×1520×1300 | |
| Standard Equipment: | ||
| 1. Blade Cleaning Brush. | ||
| 2. Working Light. | ||
| 3. Roller Table 1pc(about 80cm) | ||
| 4. One Piece Of Bi-metal Saw Blade. | ||
| 5. One Set Of Tools With Tool Box | ||
| Optional Equipment: | ||
| Extra Common Roller Table | ||

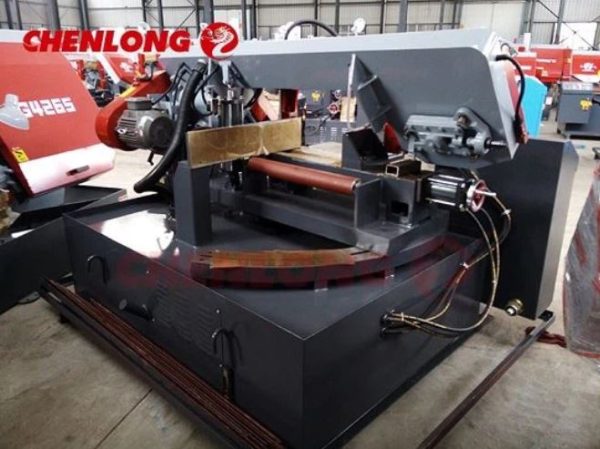

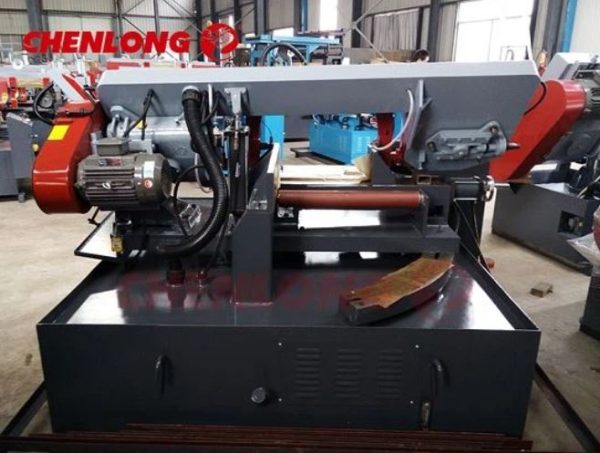

* The base of the miter cutting band sawing machine is a steel plate structure, and a rotating shaft is installed on the base. When the sawing angle is required, the saw frame can be rotated around the rotating shaft within the range of 0 to 45º. The rotation of the angle is driven by a manual screw, and the scale is manually aligned.
* Saw fame lifting is pivot type, the saw frame moves up and down around the rotating shaft driven by the oil cylinder, and the bottom of the oil cylinder adopts a hinge type to avoid over-positioning and affect the stability of the saw frame lifting and lowering.
* This miter cutting band sawing machine is designed with a separate electrical control cabinet. all electrical components are installed in the electrical cabinet. To ensure safety, interlocks are provided between each action. Specifically: If the vise is not clamped, and the main drive cannot work; During the sawing process,the vise must not be loosened; All actions are controlled by relay lines and button operation.
