CHENLONG – CH-500 – Semi-Automatic Band Saw Machine
Specifications
| Make | CHENLONG |
|---|---|
| Model | CH-500 |
Description

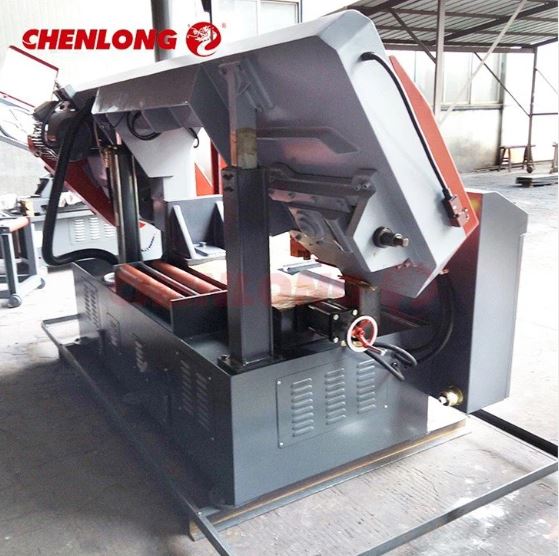

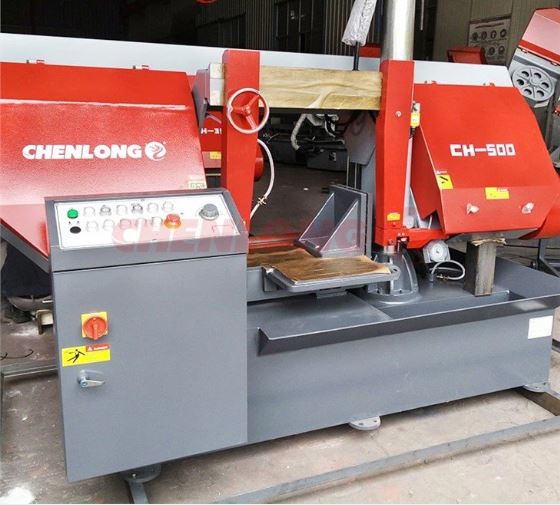

CHENLONG – CH-500 – Semi-Automatic Band Saw Machine
1. Semi Automatic Horizontal Band Saw Machine With Power Roller Table Feeding.
2. Double Column Type
3. Cutting Diameter Of 500mm
The Chenlong Bandsaw CH500 HA is a highly regarded choice for metalworking due to its high-speed cutting capabilities, double column design, and semi-automatic operation.
It is designed to handle a variety of materials, including iron, steel, aluminum alloy, stainless steel, and bearing steel.
The machine features an adjustable hydraulic downfeed rate, which allows for quick approach to the workpiece and slow downfeed rate before the blade touches the workpiece, ensuring precision and efficiency during the cutting process.
The use of roller bearings and carbide blocks guides the blades, extending the blade life.
Additionally, the machine is equipped with a control panel that is easy to understand and use, making it suitable for both professional and industrial settings.
The Chenlong Bandsaw CH500 HA offers a reliable and cost-effective solution for metal cutting needs.
Specifications
| Product Name | Semi Automatic Horizontal Band Saw Machine | |
| Brand | CHENLONG | |
| Model | CH-500 | |
| Maximum Cutting Size (Round) | 500mm | |
| Maximum Cutting Size (Quadrate) | 500×500mm | |
| Blade Line Speed | 18/30/50/70 m/min | |
| Blade Size | 41×1.3×5450 mm | |
| Blade Guides | Carbide And Bearing Blade Guides | |
| Blade Cleaning | Wire Brush & Flood Coolant | |
| Blade Tension | Manual | |

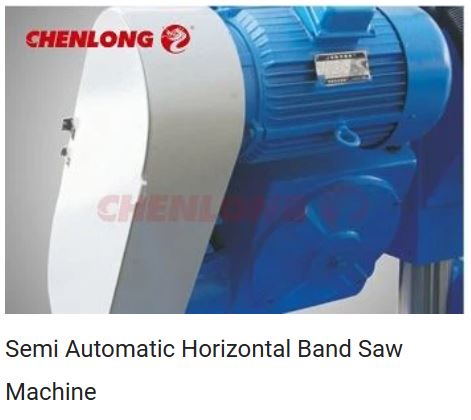

| Motors | Main Motor | 4kw |
| Hydraulic Motor | 0.75kw | |
| Water pump Motor | 60w | |

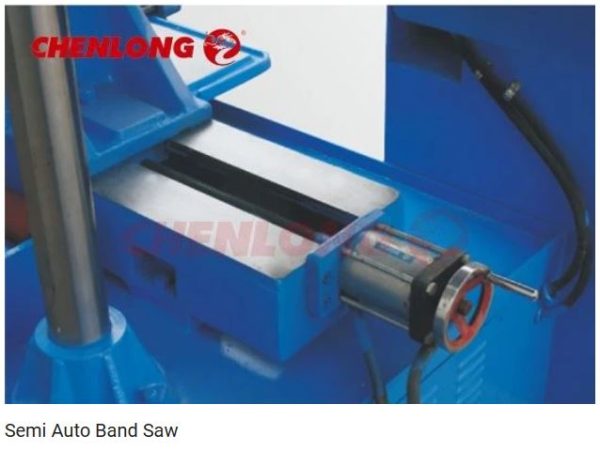

| Work Vise Control | Hydraulic | |
| Machine Size(L×W×H)mm | 2700×1250×1850 | |
| Standard Equipment: | ||
| 1. Blade Cleaning Brush. | ||
| 2. Working Light. | ||

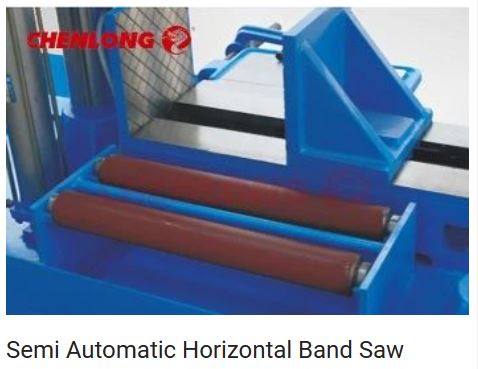

| 3. Power Roller Table 1.5m | ||
| 4. One Piece Of Bi-metal Saw Blade. | ||
| 5. One Set Of Tools With Tool Box | ||
| Optional Equipment: | ||
| 1. Extra Common Roller Table | ||
| 2. Automatic Chip Conveyor | ||
| 3. Inverter | ||
| 4. Laser Projector | ||
| 5. Hydraulic Blade Tension | ||
