YLM – Right & Left Tube Bender – CNC16-RLDAE

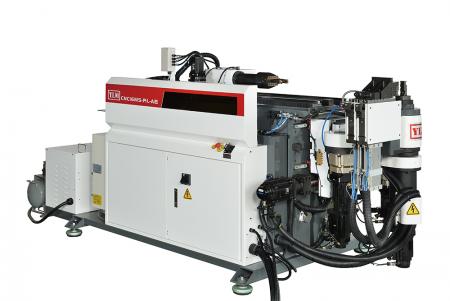

The YLM CNC16-RLDAE is a fully electric CNC tube bender with both left-hand and right-hand bending functions. Let’s explore its features and benefits:

1. Bending Flexibility:
   • This model offers both left-hand and right-hand bending capabilities, making it versatile for various applications.
   • Ideal for symmetrical tubes used in furniture production, hydraulic-oil tubing lines, HVAC systems, and automobile fluid systems.
2. Integrated Clamping Die and Pressure Die:

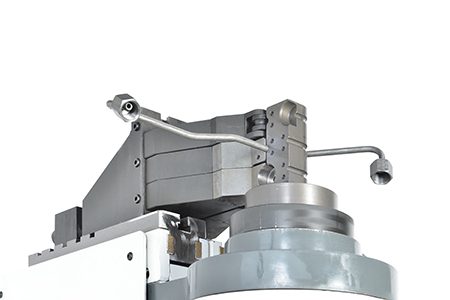

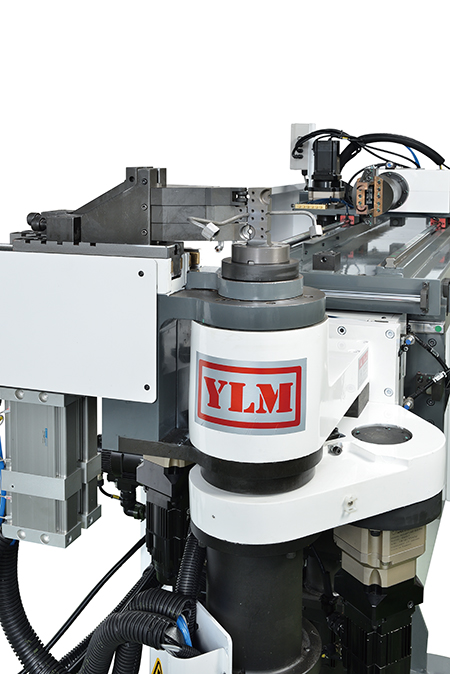

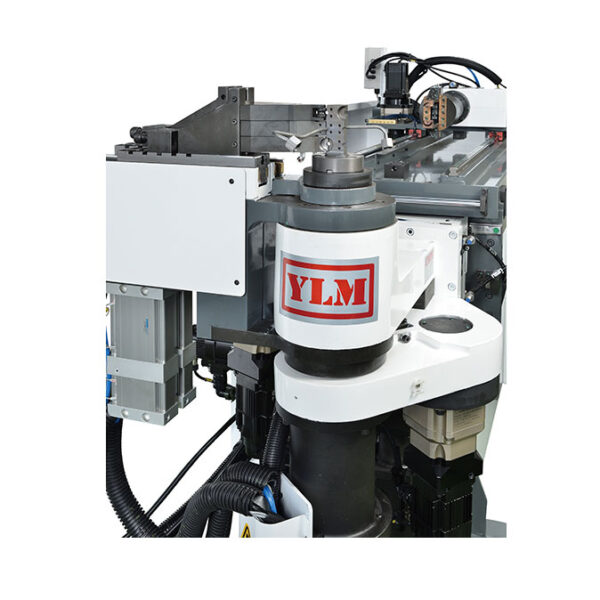

   • The clamping die and pressure die are integrated, allowing for fast and efficient bending direction changes.
3. Precision and Repeatability:
   • High precision with tube feeding, rotation, and bending (±0.05 mm).
   • Repeatability ensures consistent results.
4. Max. Tube O.D. Bending Capacity:
   • Mild steel: 16 mm (CLR 1.5D).
   • Range of CLR: 0-70 mm.
   • Max. bending radius difference: 35 mm.
   • Max. bending angle: 185°.
5. Fast Processing Speed:
   • Max. tube feeding speed: 3,298 mm/sec.
   • Max. tube rotation speed: 900°/sec.
   • Max. tube bending speed: 600°/sec.
6. Compact Design:
   • Overall weight: 1,400 kg.
   • Machine dimensions (LxWxH): 2,885 mm x 1,350 mm x 1,500 mm.
   • Operating height: 1,280 mm.

The YLM CNC16-RLDAE is an efficient solution for precision tube bending.
