Specifications

Make

YLM

Model

CNC80-RLRAE

Description

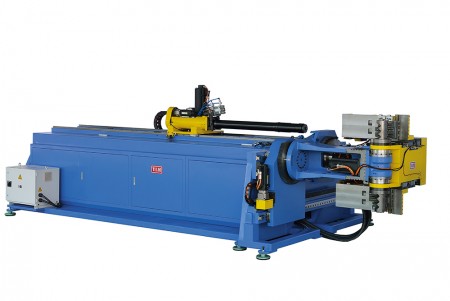

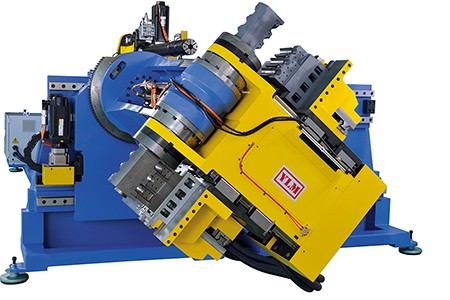

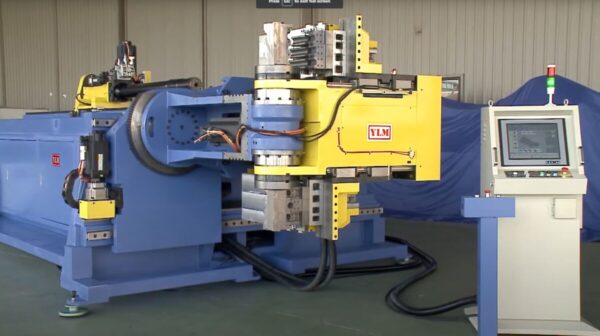

YLM – Right & Left Tube Bender – CNC80-RLRAE

Fully electric CNC L&R tube bender is in both left-hand & right-hand bending function.

A very practical model to meet various bending demands, suitable for symmetrical tube such as furniture production, hydraulic-oil tubing lines, and HVAC tubing & fluid system of automobiles.

All electric L&R smart turn tube bender, Right and Left Fully Electric CNC Tube Bender, Fully Electric CNC pipe Bender rotative head

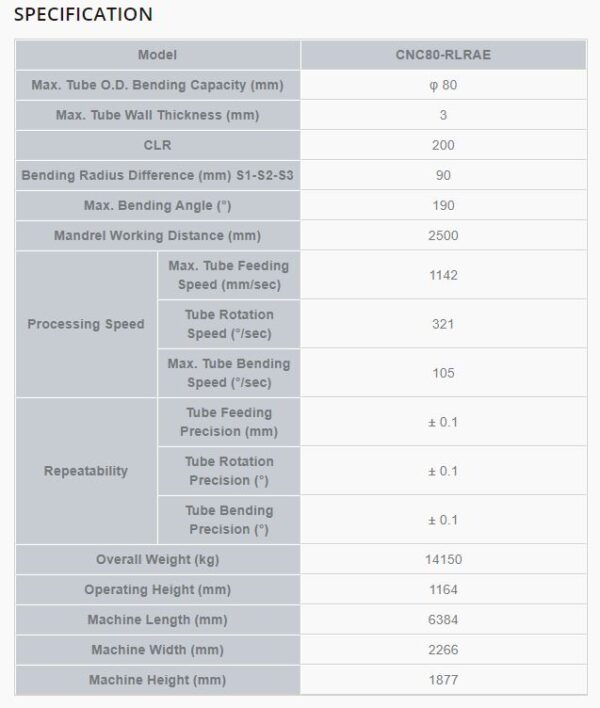

Specifications:

Model CNC80-RLRAE

  • Max. Tube O.D. Bending Capacity (mm) 80
  • Max. Tube Wall Thickness (mm) 3
  • CLR 200
  • Bending Radius Difference (mm) S1-S2-S3 90
  • Max. Bending Angle (°) 190
  • Mandrel Working Distance (mm) 2500
  • Processing Speed Max. Tube Feeding Speed (mm/sec) 1142
  • Tube Rotation Speed (°/sec) 321
  • Max. Tube Bending Speed (°/sec) 105
  • Repeatability Tube Feeding Precision (mm) ± 0.1
  • Tube Rotation Precision (°) ± 0.1
  • Tube Bending Precision (°) ± 0.1
  • Overall Weight (kg) 14150
  • Operating Height (mm) 1164
  • Machine Length (mm) 6384
  • Machine Width (mm) 2266
  • Machine Height (mm) 1877
