YLM – Right & Left Tube Bender – CNC51-RLRAE

YLM - Right & Left Tube Bender - CNC51-RLRAEYLM - Right & Left Tube Bender - CNC51-RLRAE
YLM - Right & Left Tube Bender - CNC51-RLRAEYLM - Right & Left Tube Bender - CNC51-RLRAE
YLM - Right & Left Tube Bender - CNC51-RLRAEYLM - Right & Left Tube Bender - CNC51-RLRAE
YLM - Right & Left Tube Bender - CNC51-RLRAEYLM - Right & Left Tube Bender - CNC51-RLRAE

Specifications

Make

YLM

Model

CNC51-RLRAE

Description

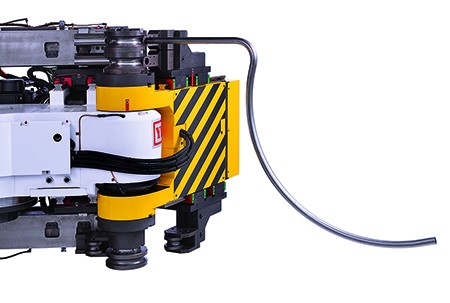

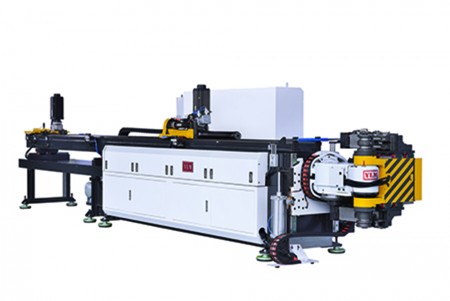

Fully electric CNC L&R tube bender is in both left-hand & right-hand bending function.

A very practical model to meet various bending demands, suitable for symmetrical tube such as furniture production, hydraulic-oil tubing lines, and HVAC tubing & fluid system of automobiles.

Fully electric CNC L&R tube bender is in both left-hand & right-hand bending function.

A very practical model to meet various bending demands, suitable for symmetrical tube such as furniture production, hydraulic-oil tubing lines, and HVAC tubing & fluid system of automobiles.

All electric L&R smart turn tube bender, Right and Left Fully Electric CNC Tube Bender, Fully Electric CNC pipe Bender rotative head

SPECIFICATION
Model CNC51-RLRAE
Max. Tube O.D. Bending Capacity (mm) 50
Max. Tube Wall Thickness (mm) 2.5
CLR 180
Bending Radius Difference (mm) S1-S2-S3 80
Max. Bending Angle (°) 190
Mandrel Working Distance (mm) 2500
Processing Speed Max. Tube Feeding Speed (mm/sec) 850
Tube Rotation Speed (°/sec) 487
Max. Tube Bending Speed (°/sec) 164.5
Repeatability Tube Feeding Precision (mm) ± 0.1
Tube Rotation Precision (°) ± 0.1
Tube Bending Precision (°) ± 0.1
Overall Weight (kg) 5600
Operating Height (mm) 1245
Machine Length (mm) 5050
Machine Width (mm) 1750
Machine Height (mm) 1650
