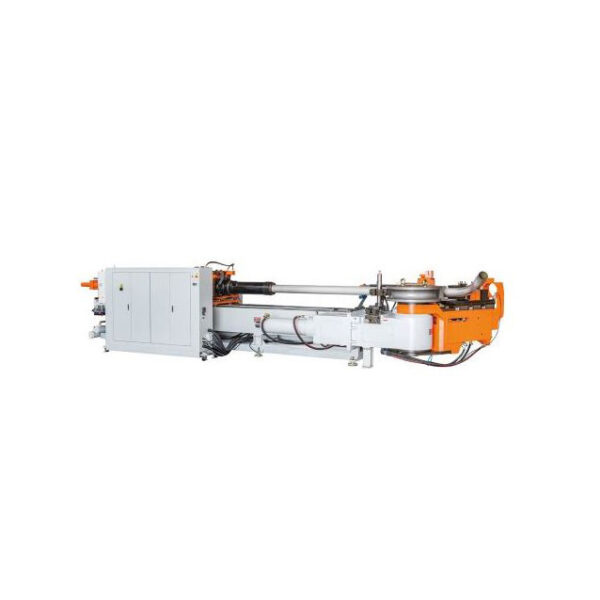

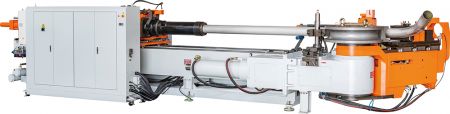

YLM – CNC Hybrid Tube Bending Machine – CNC-180S1

YLM – CNC Hybrid Tube Bending Machine – CNC-180S1
YLM – CNC Hybrid Tube Bending Machine – CNC-180S1
YLM – CNC Hybrid Tube Bending Machine – CNC-180S1

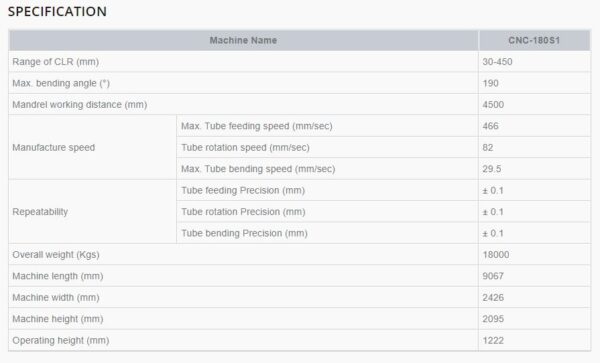

Specifications

Make

YLM

Model

CNC-180S1

Description

YLM – CNC Hybrid Tube Bending Machine – CNC-180S1

Features of Hybrid Tube Bender

  1. The series of machine employs hydraulic valves and integrated circuits ti control bending motion individually, which will extend the service life of he hydraulic parts.
  2. Large bending machine is equipped with a manually adjusted digital flow regulation valve to control the speed of bending motion.
  3. Servo drive provides high accuracy in bending positioning, that ensures high quality bending.

CNC pipe bender, Hydraulic Pipe Bending Machine, tube bender with hydraulic tube bending machine, CNC Automatic Tube Bending Machine

  • Draw +Rollers -Bending
  • 4/5 Axes Servo-Motor controlled
  • 3D Simulation of Bending Process and application

Suitable industries:

Boiler, Shipbuilding, Heavy Transportation, Chemical Engineering, Power Plant.
