YLM – CNC Electric Tube Bender CNC25 MS-AE
Specifications
| Make | YLM |
|---|---|
| Model | CNC25 MS-AE |
Description

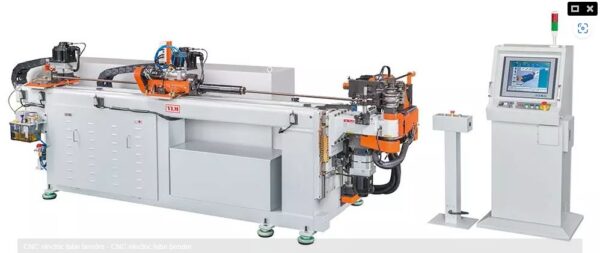

YLM – CNC Electric Tube Bender CNC25 MS-AE

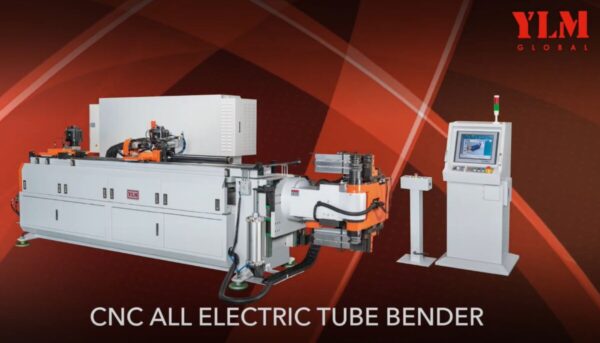

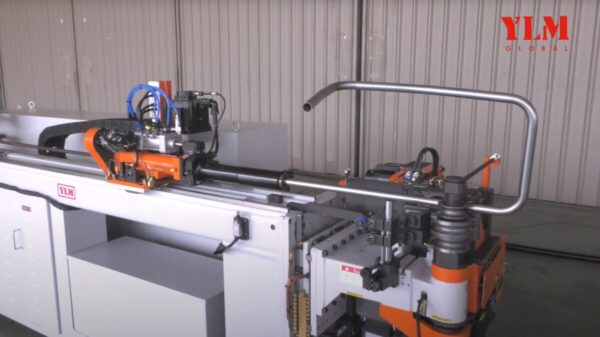

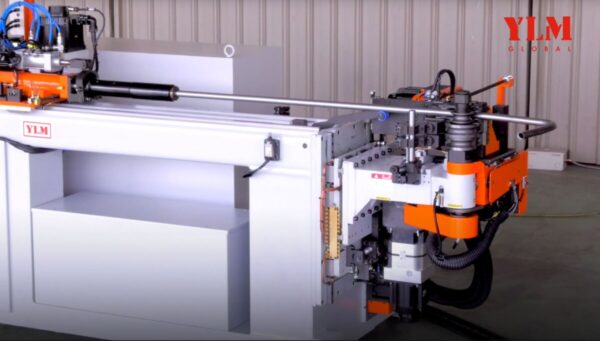

Fully Electric Multi-Stack CNC Tube Bending Machine
The YLM CNC25 MS-AE is a fully electric CNC tube bender designed for high-precision and energy-efficient operation.

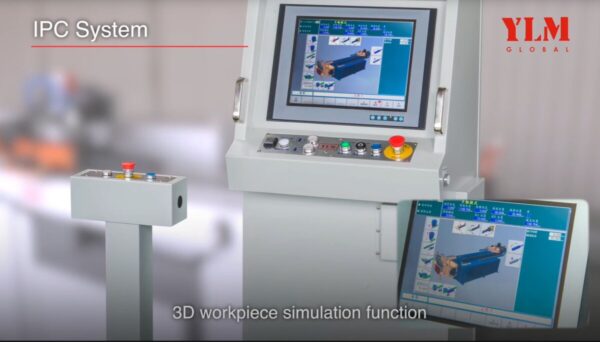

This advanced machine features a powerful CNC controller that runs on a Windows-based operating system, integrated with YLM’s proprietary Ying Han control software.
Key features include:
User-friendly interface for easy input of bending parameters
3D workpiece simulation
Step-by-step operation simulation for enhanced safety and control
These capabilities ensure an intuitive and efficient user experience, offering high levels of precision and automation.

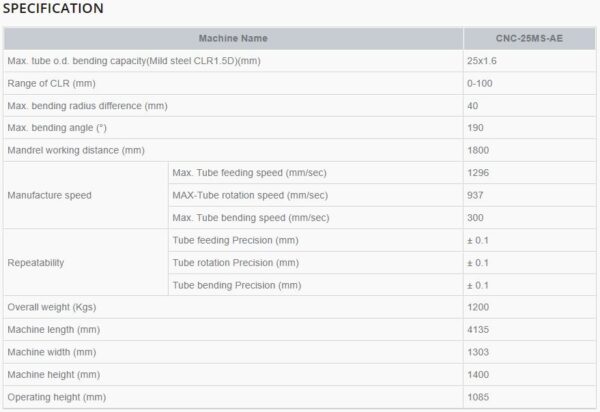

Standard
| Model | CNC-25MS-AE | |
|---|---|---|
| Maximum pipe diameter bending capacity (maximum pipe diameter * thickness) (iron pipe CLR1.5D) (mm) | 25×1.6 | |

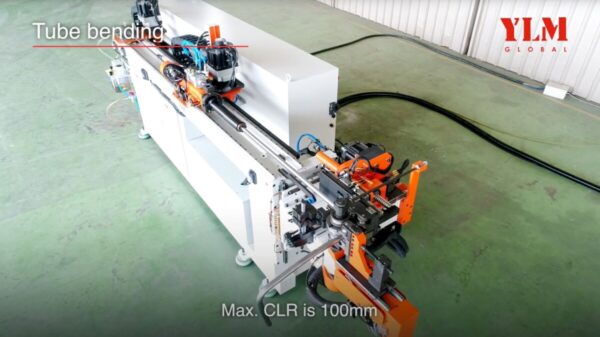

| Centerline radius range (extendable) (mm) | 0-100 | |

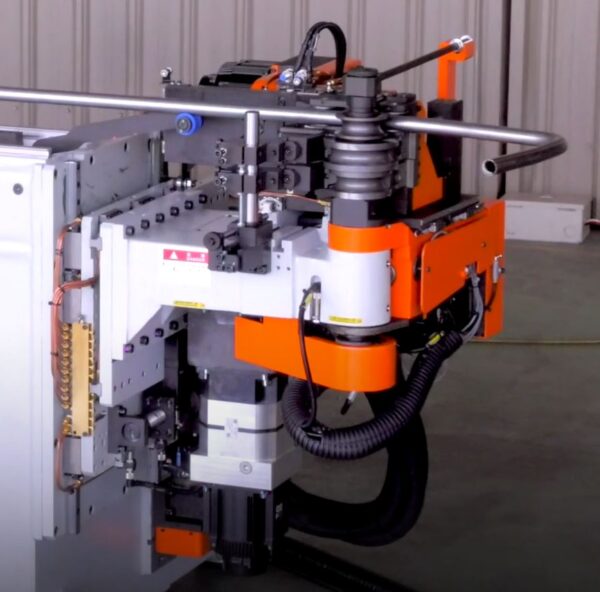

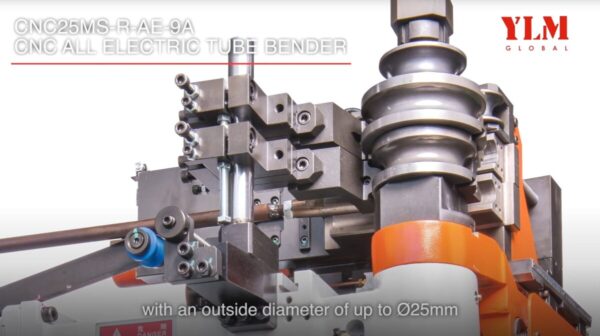

| Multilayer Die Radius Difference S1-S2-S3 (mm) | 40 | |
| Maximum Bending Angle (°) | 190 | |
| Maximum Effective Distance (Extendable) (mm) | 1800 | |
| Machining speed | MAX. Feed Speed (mm/sec) | 1296 |
| MAX. Transfer Speed (mm/sec) | 937 | |
| MAX. Bending Speed (mm/sec) | 300 | |
| Reproducible accuracy | Feeding accuracy (mm) | ± 0.05 |
| Tube Accuracy (mm) | ± 0.05 | |
| Bending Accuracy (mm) | ± 0.05 | |
| Machine weight (kgs) | 1200 | |
| Machine Length (mm) | 4135 | |
| Machine Width (mm) | 1303 | |
| Machine Altitude (mm) | 1400 | |
| Operating height (mm) | 1085 | |

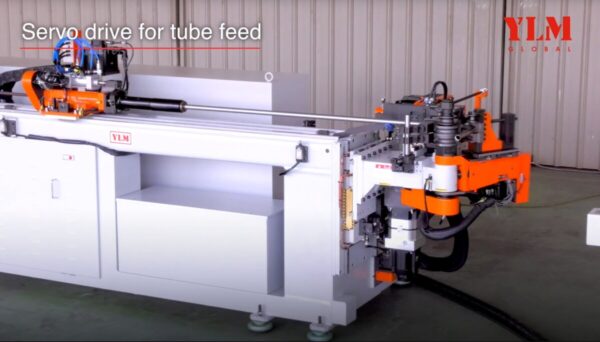

- Servo motor : YASKAWA.
- YLM machines are constantly developing and innovating, and there are no changes in the design of the machines without prior notice.

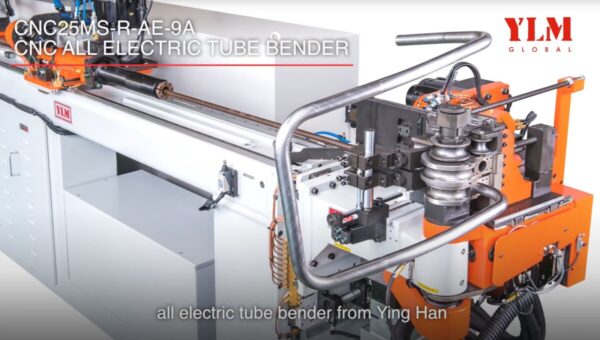

YLM’s range of all-electric CNC benders combines the energy savings and quiet operation of electric servo motors with innovative design and intelligent software. The software includes a teaching mode for simplified programming and accurate positioning of every movement.

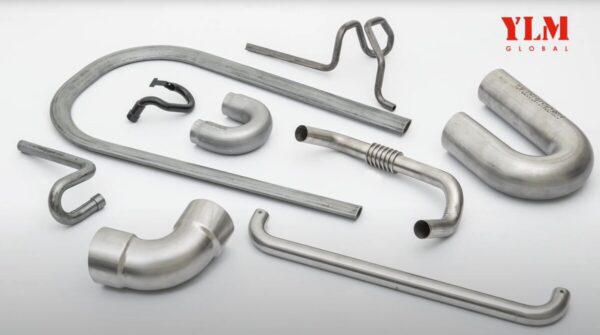

With a bending capacity ranging from 2″ to 6″ stainless steel, the YLM CNC electric benders are especially popular in the truck and automotive exhaust manufacturing sectors.
