Specifications

Make

OnRobot

Description

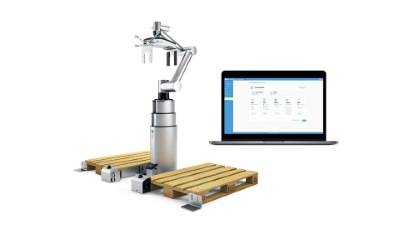

ONROBOT – Palletising with Lift100 + Pallet Station

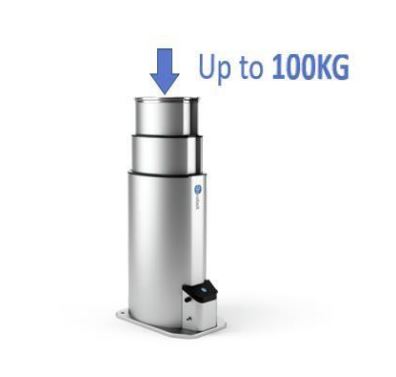

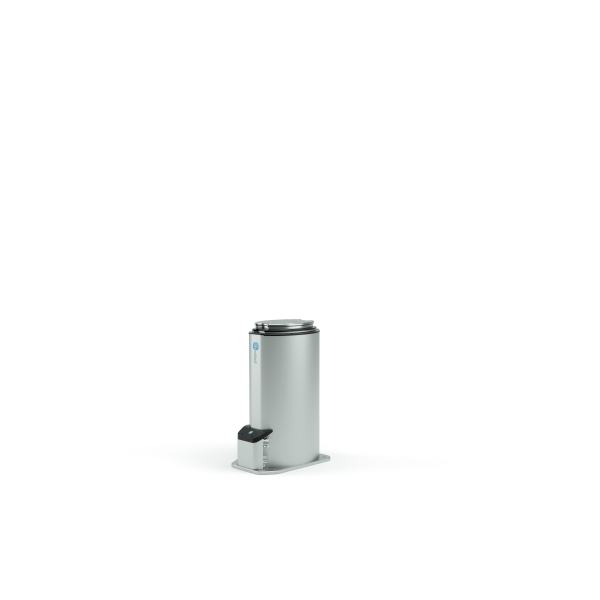

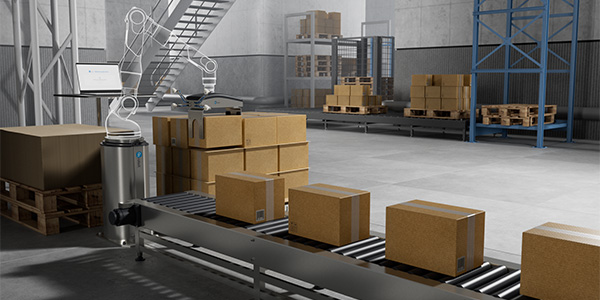

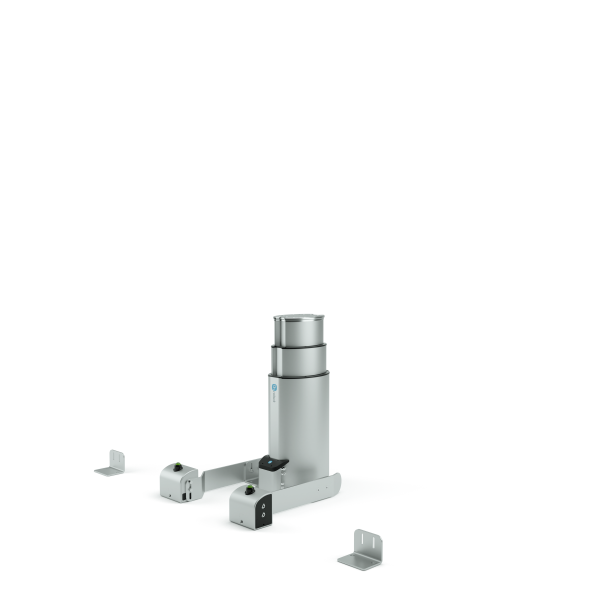

The OnRobot Lift100 is a 7th axis with a payload capacity of 100 kg, ideal for palletising applications and other tasks requiring extended range. It can be complemented with the OnRobot Pallet Station which helps the operator placing the pallet in correct position.

  • High-payload 7th axis / vertical rail supporting wide range of robot models.

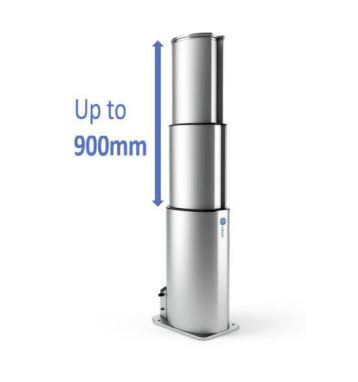

  • Extra-large stroke for demanding palletizing tasks and other use cases
  • Integrated safety features with TÜV (certification pending) certified stop functionality to facilitate collaborative deployment
  • The Lift100 comes with robot specific adapter plate between the Lift100 and the robot base.

All common pallet sizes supported:

  • Australia (1165 x 1165 x 150mm)
  • North America (1016 x 1219 x 127mm)
  • EUR 1 (1200 x 800 x 144mm)
  • EUR 6 (600 x 800 x 144mm)
  • UK (1200 x 1000 x 145mm)
  • Asia (1100 x 1100 x 135mm)
  • Custom (from 600 x 800 to 1250 x 1250)

Value propositions

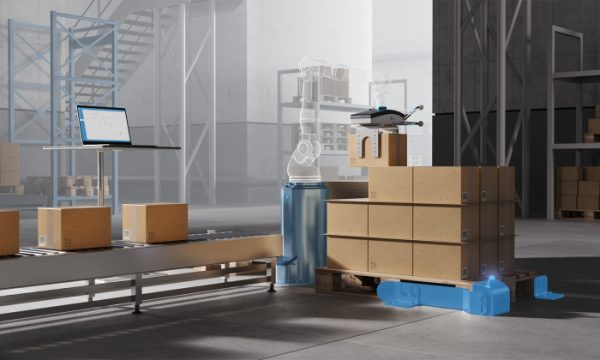

  • Long-stroke robot lift creates 7th axis for leading robot arms to enable a wide range of future-proofed palletising tasks
  • High-payload elevator with minimal deflection ensures precise positioning of boxes – even at high speeds
  • Robust design for reliable, long product life under all typical manufacturing conditions
  • Integrated safety features with TÜV (certification pending) certified stop functionality to facilitate collaborative deployment
