OFMER – Rebar Combined Machines Evo Series [Made in Italy]

Specifications
Description

Specifications

Make	OFMER
Model	Machines Evo Series

Description

OFMER – Rebar Combined Machines Evo Series

The possibility to cut and bend concrete reinforcing steel rods with one only product is given by the combined machines: cheap and not bulky solutions, ideal for construction sites with a rather limited volume of work.

On the market for the past ten years, the line of rebar processing machines Evo by OF.ME.R. is the result of the latest building technologies applied to the experience achieved over time.

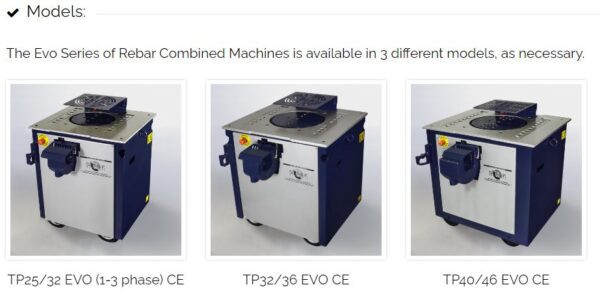

The Evo Series of Rebar Combined Machines is available in 3 different models, as necessary.

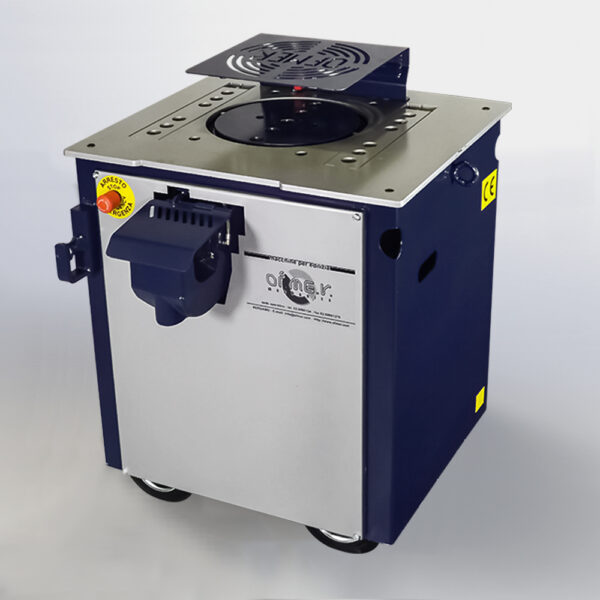

- TP25/32 EVO (1-3 phase)

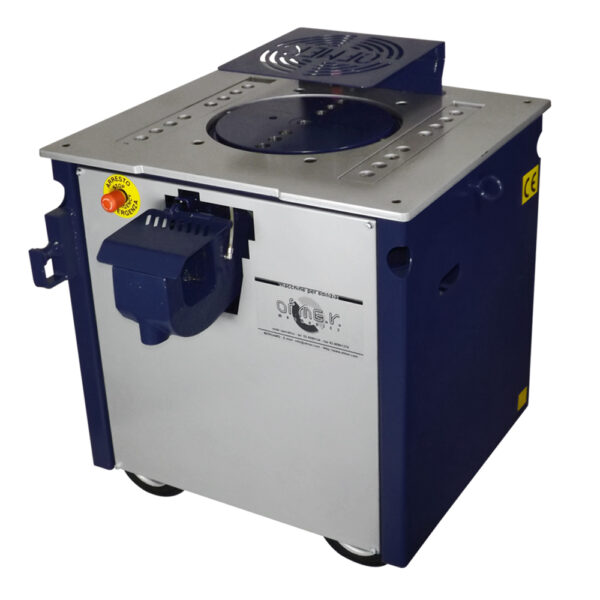

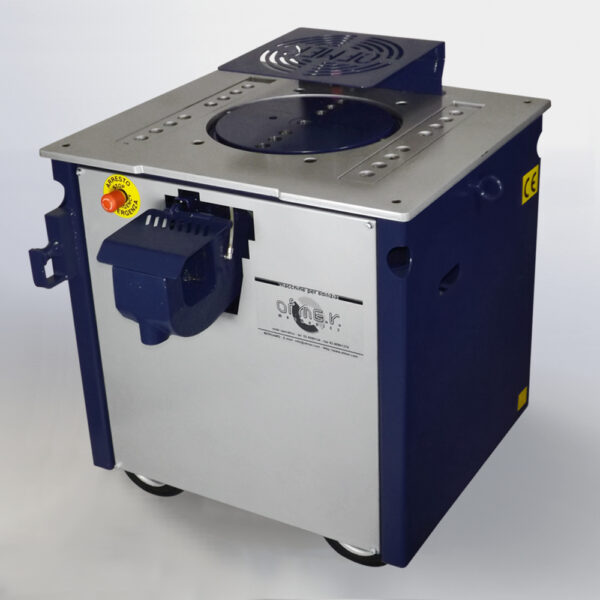

- TP32/36 EVO CE (1-3 phase)
- TP40/46 EVO CE (3 phase)

Key features:

The combined cutting and bending machine is the ideal solution for construction sites with low working volumes, allowing iron to be cut and bent with a single machine.

This product line is the result of the combination of the most modern construction technologies with our many years of experience in the sector.

Reduction box and cutting arm that form a single block of spheroidal cast iron, guaranteeing maximum solidity and resistance without welding.
Gears and pinions made of special hardened steel that work constantly in an oil bath in the gearbox, ensuring maximum durability.

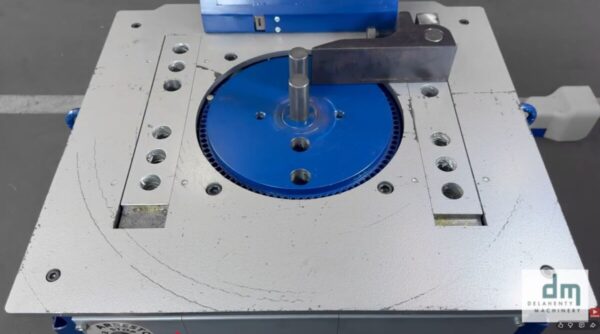

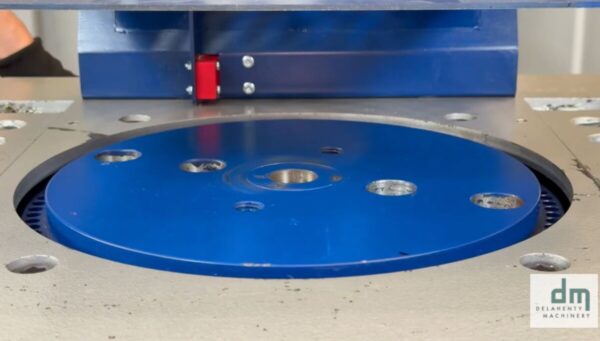

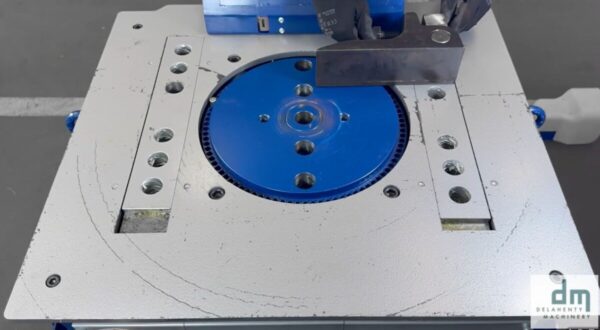

Enlarged turntable allows for larger bending radii.
Long trolleys to perform the “double fold”.
Self-braking motors made in Italy to maximise the working capacities of each unit.
Easy maintenance: formidable, high-performance and easy-to-maintain machines, to which we give a two-year warranty on all mechanical parts.

Each component used in the production of the combined products is subject to rigorous quality controls during the production process, guaranteeing maximum reliability and safety. Our team of designers is always available to customise the base model and meet all specific requirements.

MODEL	OPERATIONS / MINUTE	HP/KW	65 KG/MM² CUTS	85 KG/MM² CUTS
TP 25/32 1-PH 3-PH	10	3/2.2	1Ø 24 mm 2Ø 18 mm 3Ø 14 mm	1Ø 22 mm 2Ø 16 mm 3Ø 12 mm
TP 32/36 1-PH 3-PH	8	4/3	1Ø 28 mm 2Ø 20 mm 3Ø 16 mm	1Ø 25 mm 2Ø 16 mm 3Ø 14 mm
TP 40/46 3-PH	6	5.5/4	1Ø 32 mm 2Ø 22 mm 3Ø 18 mm	1Ø 30 mm 2Ø 20 mm 3Ø 16 mm

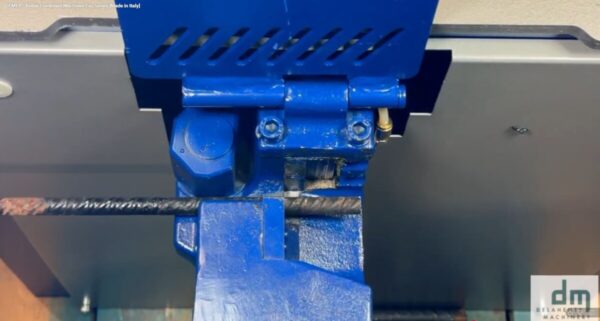

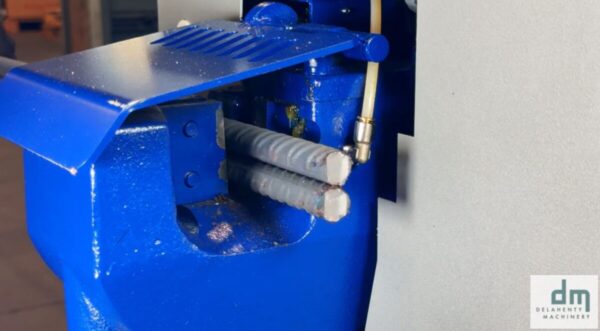

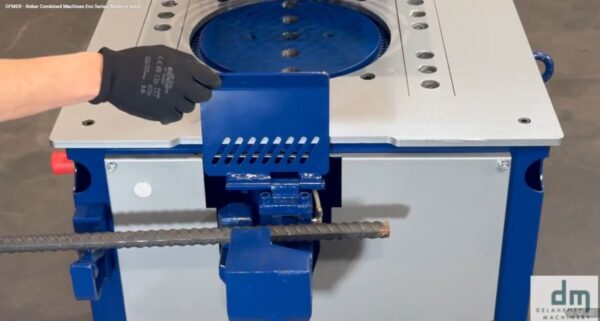

Two special steel blades already mounted on the machine.

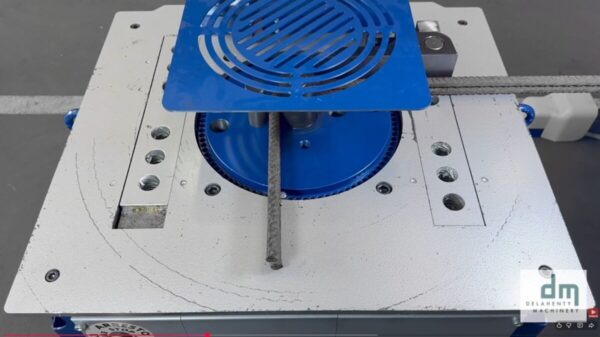

Stop, essential for fixing the bar on the work surface, which reduces the stress exerted on the bar before bending, thus avoiding possible deformations of the bar. Usable with diameters up to 20mm.
Square sprocket, to be used with the stop, to counteract and nullify the force exerted on the stop by bending.
Bending shaft made of special cemented and tempered steel, to be placed on the turntable, for the production of stirrups, allowing to obtain narrow bending radii. For use with bars up to Ø 12mm.

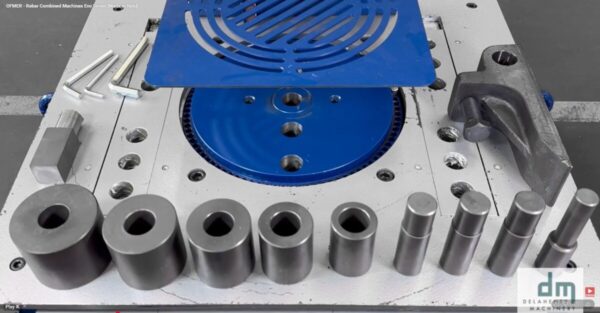

Three support shafts made of special case-hardened and hardened steel bushings, to be placed on the work surface and completed with the bushings. Together with the bushings, they withstand the stress of the bending phase.

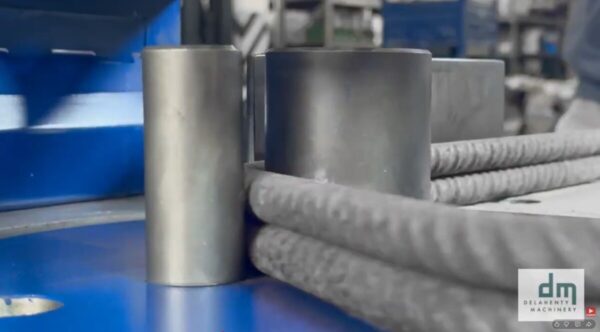

Set of bushings, designed in detail for each of the bending machine models. The radius of the bushing placed in the central hole of the chainring is equal to the radius of curvature. For the use of bars from Ø 15mm, it is important that the diameter of the bushing is at least three times that of the bar to be bent. The bushings are also used as shims for the bending bushing support shaft, in cases where the alignment of the bar is not effective. The bar locks in this way, but the rotation of the bushing on the shaft allows the bar to slide during bending, avoiding possible friction.
Two pegs, to place on the plate and determine the angle of curvature.
Allen wrench set, useful for ordinary maintenance.
Electric pedalboard, to facilitate the operator allowing him to have his hands free and work from all sides of the machine.
Set of wheels for moving the machine.
Power socket, which guarantees the electrical connection.
Two emergency stop buttons, to instantly stop the machine in case of emergency. They are placed on two opposite sides of the machine.
Long carriages, supplied with all bending machines with a maximum of 10 holes, essential if you want to make the double fold.
