HANNSA – Heavy Duty CNC Lathe [Box Ways on 2 Axes – YTH 10E]

Specifications

Description

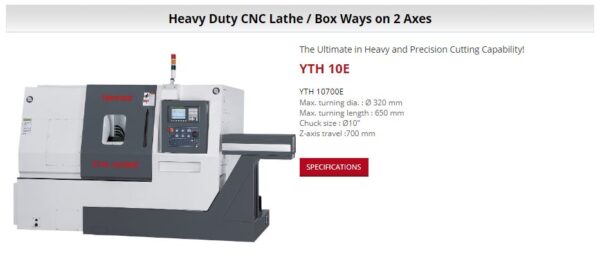

HANNSA – YTH 10E – CNC Lathes

The Ultimate in Heavy and Precision Cutting Capability!

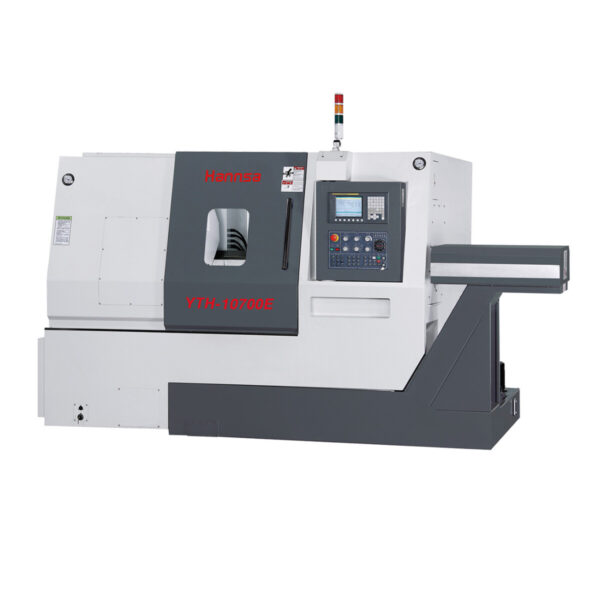

YTH 10700E

• Max. turning dia.: Ø 320 mm
• Max. turning length: 650 mm
• Chuck size: Ø10”
• Z-axis travel:700 mm

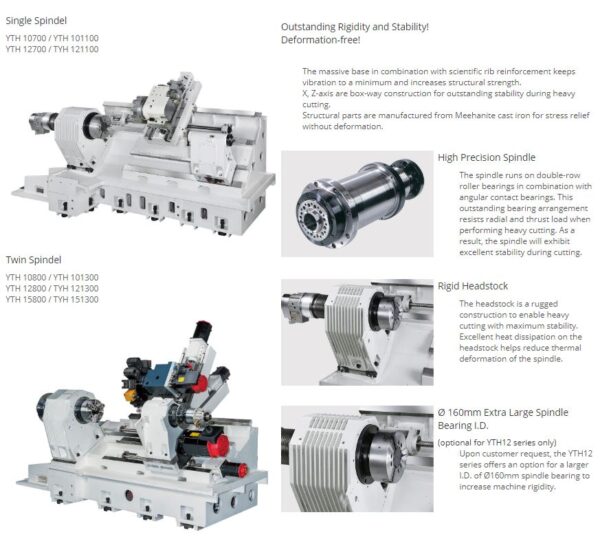

Deformation-free!

The massive base, in combination with scientific rib reinforcement, keeps vibration to a minimum and increases structural strength.
X, Z-axis are box-way construction for outstanding stability during heavy cutting.
Structural parts are manufactured from Melanite cast iron for stress relief without deformation.

High Precision Spindle

The spindle runs on double-row roller bearings in combination with angular contact bearings. This outstanding bearing arrangement resists radial and thrust loads when performing heavy cutting. As a result, the spindle will exhibit excellent stability during cutting.

Rigid Headstock

The headstock is a rugged construction to enable heavy cutting with maximum stability.
Excellent heat dissipation on the headstock helps reduce thermal deformation of the spindle.

Ø 160mm Extra Large Spindle Bearing I.D. (optional for YTH12 series only)
Upon customer request, the YTH12 series offers an option for a larger I.D. of Ø160mm spindle bearing to increase machine rigidity.
