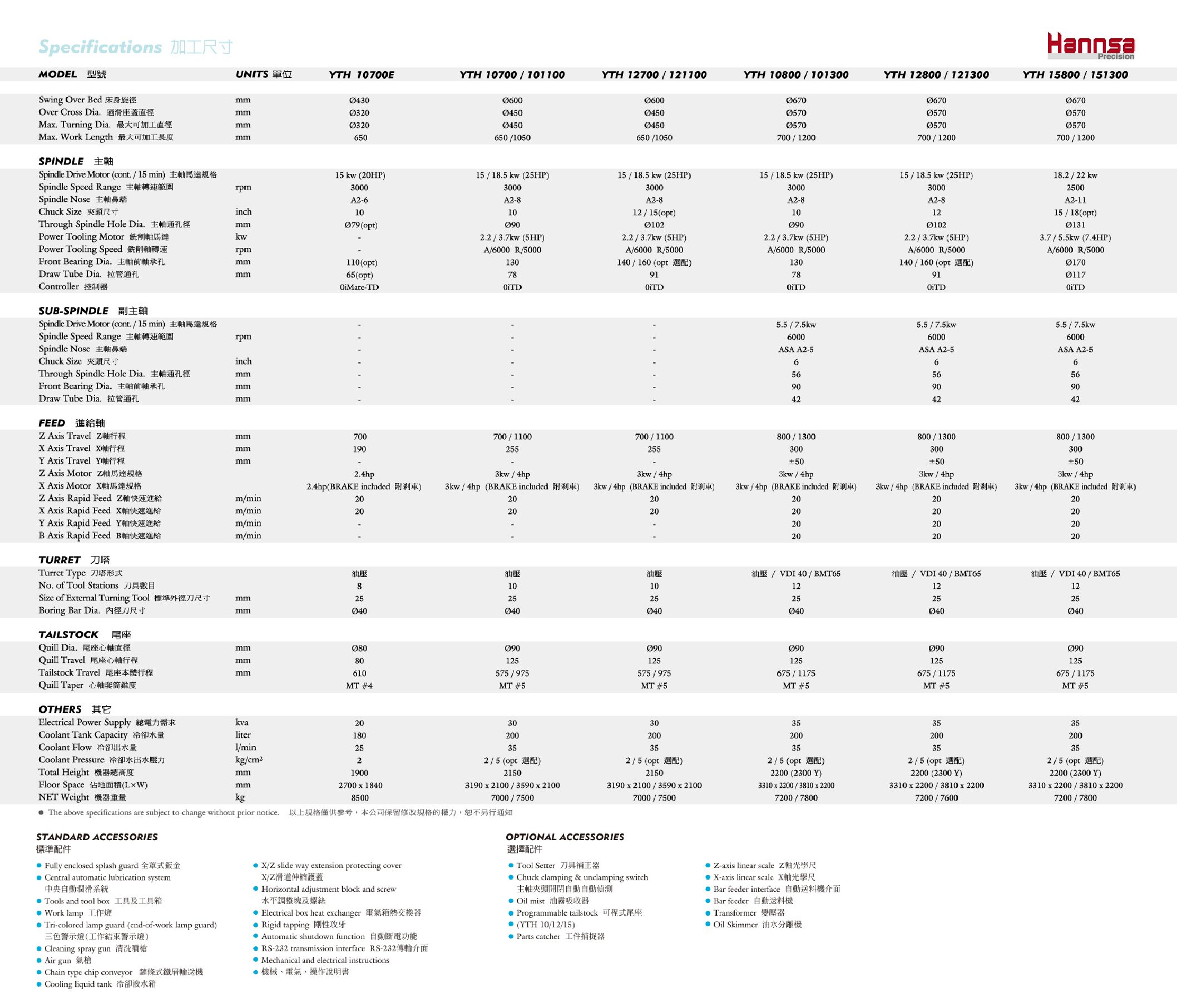

Specifications
| Make | HANNSA |
|---|
Description

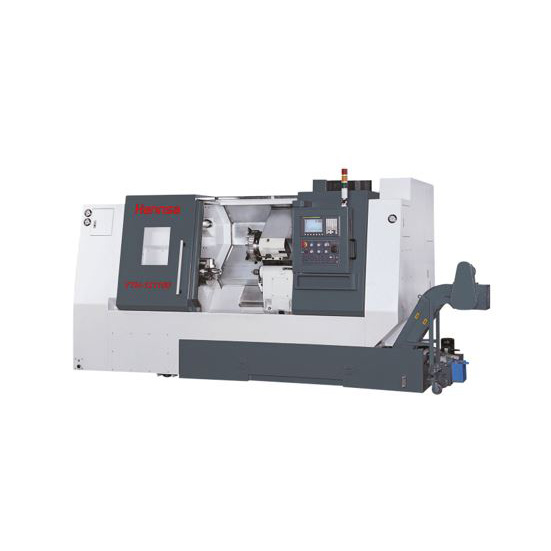

HANNSA – Heavy Duty CNC Lathe [Box Ways On 2 Axes]
Outstanding Rigidity and Stability!
Deformation-free!
- The massive base, in combination with scientific rib reinforcement, keeps vibration to a minimum and increases structural strength.
- X, Z-axis are box-way construction for outstanding stability during heavy cutting.
- Structural parts are manufactured from Meehanite cast iron for stress relief without deformation.

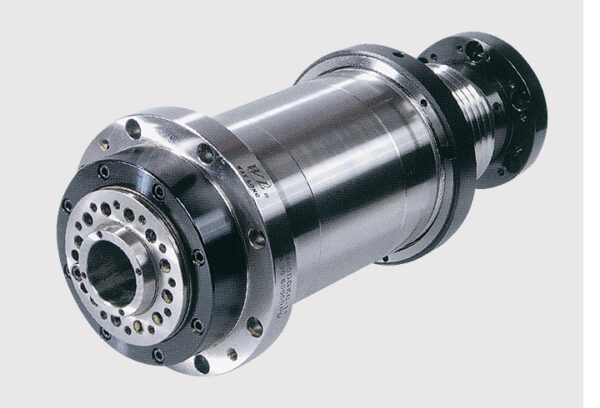

High Precision Spindle
- The spindle runs on double-row roller bearings in combination with angular contact bearings. This outstanding bearing arrangement resists radial and thrust load when performing heavy cutting. As a result, the spindle will exhibit excellent stability during cutting.

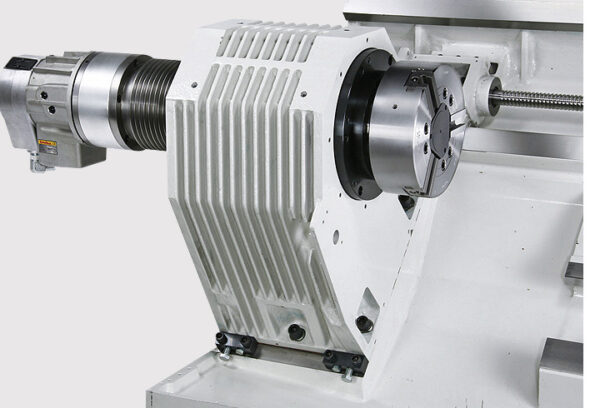

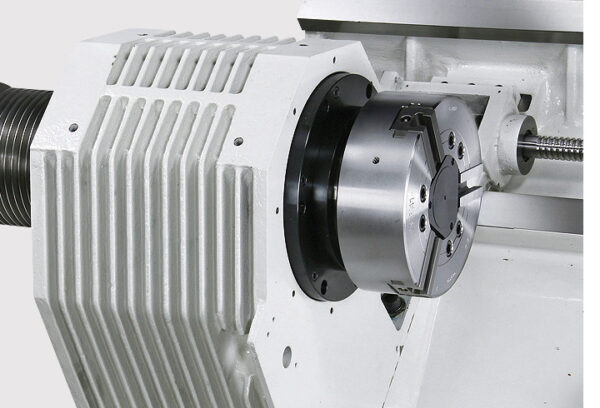

Rigid Headstock
- The headstock is a rugged construction to enable heavy cutting with maximum stability.
- Excellent heat dissipation on the headstock helps reduce thermal deformation of the spindle.
Ø 160mm Extra Large Spindle Bearing I.D. (optional for YTH12 series only)
- Upon customer request, the YTH12 series offers an option for a larger I.D. of Ø160mm spindle bearing to increase machine rigidity.

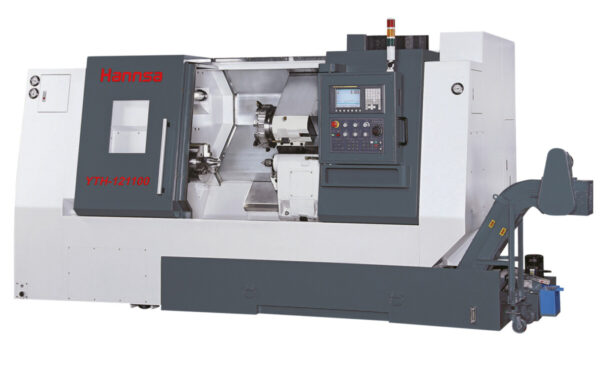

YTH 10/ 12/15

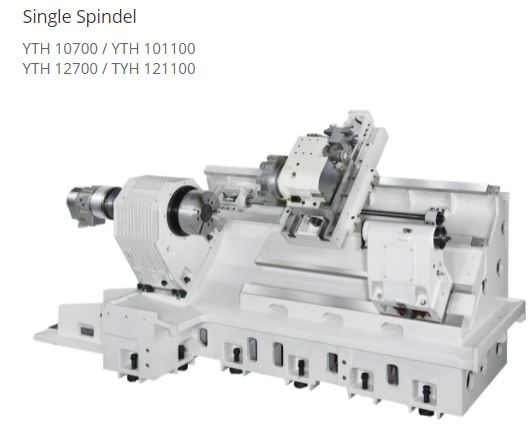

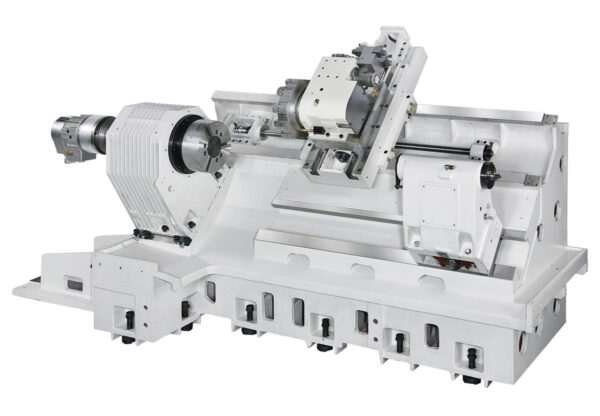

Single Spindel
YTH 10700
Max. turning dia. : Ø 450 mm
Max. turning length : 650 mm
Chuck size : Ø10”
Z-axis travel : 700 mm
YTH 101100
Max. turning dia. : Ø 450 mmMax. turning length : 1050 mmChuck size : Ø10”Z-axis travel : 1100 mm
YTH 12700
Max. turning dia. : Ø 450 mmMax. turning length : 650 mmChuck size : Ø12″ / O15″ (opt)Z-axis travel : 700 mm
YTH 121100
Max. turning dia. : Ø 450 mm
Max. turning length : 1050 mm
Chuck size : Ø12″ / O15″ (opt)
Z-axis travel : 1100 mm

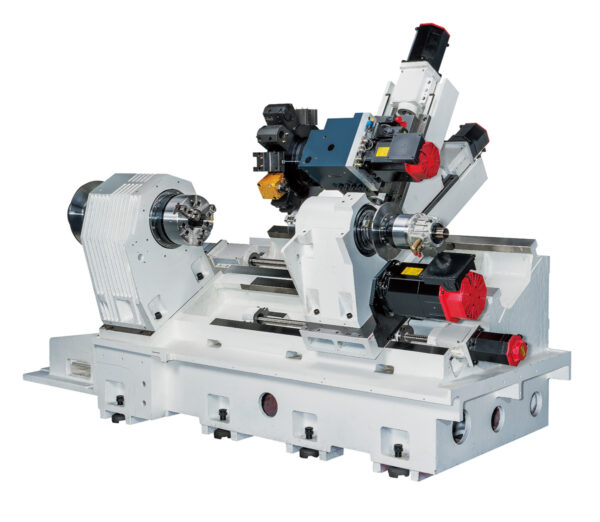

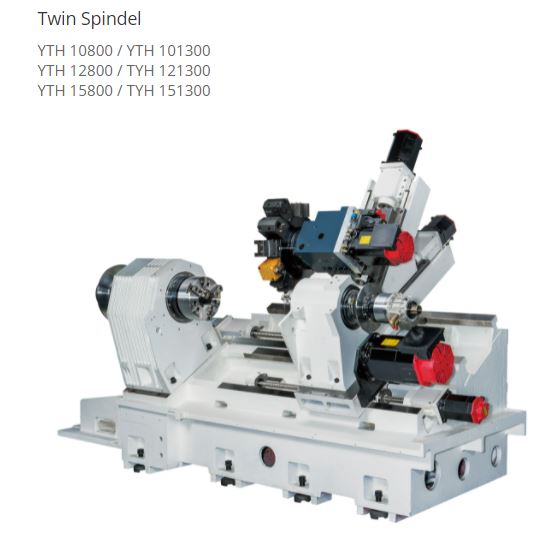

■ Twin Spindel
YTH 10800
Max. turning dia. : Ø 570 mm
Max. turning length : 800 / 1300 mm
Chuck size : Ø10”
Z-axis travel : 800 mm
YTH 101300
Max. turning dia. : Ø 570 mm
Max. turning length : 800 / 1300 mm
Chuck size : Ø10”
Z-axis travel : 1300 mm
YTH 12800
Max. turning dia. : Ø 570 mm
Max. turning length : 800 / 1300 mm
Chuck size : Ø12”
Z-axis travel : 800 mm
YTH 121300
Max. turning dia. : Ø 570 mm
Max. turning length : 800 / 1300 mm
Chuck size : Ø12”
Z-axis travel : 1300 mm
YTH 15800
Max. turning dia. : Ø 570 mm
Max. turning length : 800 mm
Chuck size : Ø15″ / O18″ (opt)
Z-axis travel : 800 mm
YTH 151300
Max. turning dia. : Ø 570 mm
Max. turning length : 1300 mm
Chuck size : Ø15″ / O18″ (opt)
Z-axis travel : 1300 mm
