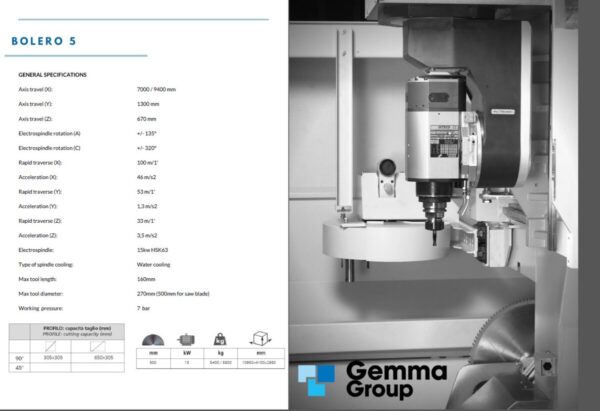

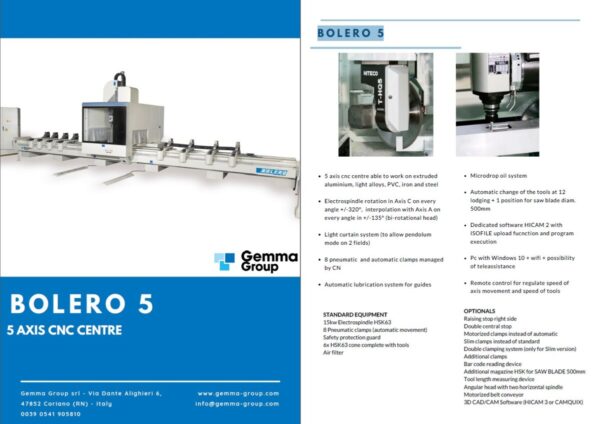

View Brochure

Specifications

Make

GEMMA

Model

Bolero

Description

GEMMA – Bolero 5 – CNC Machining Centre

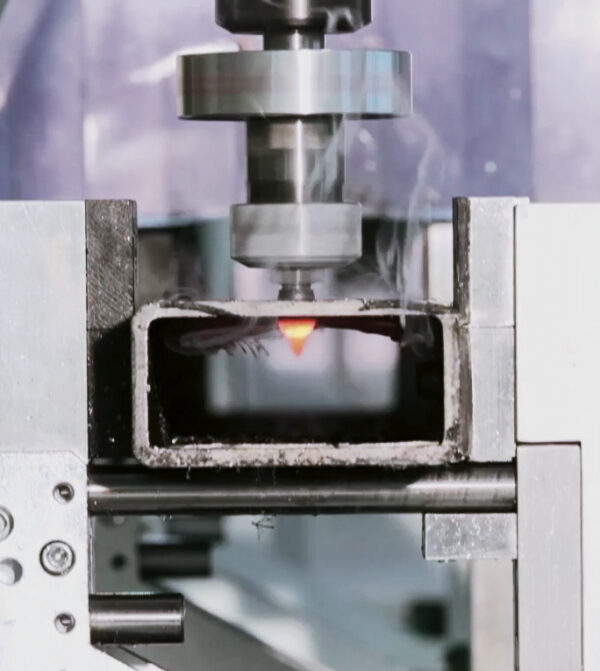

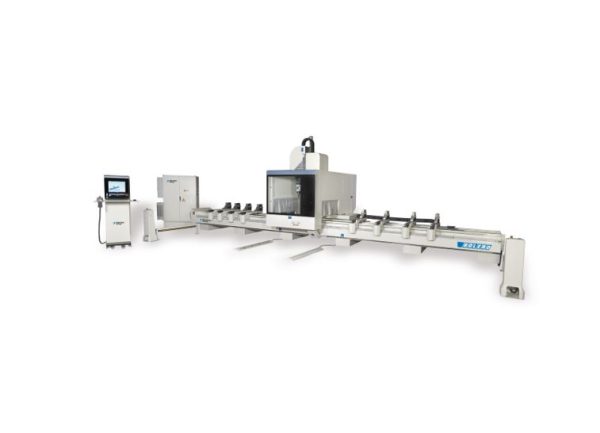

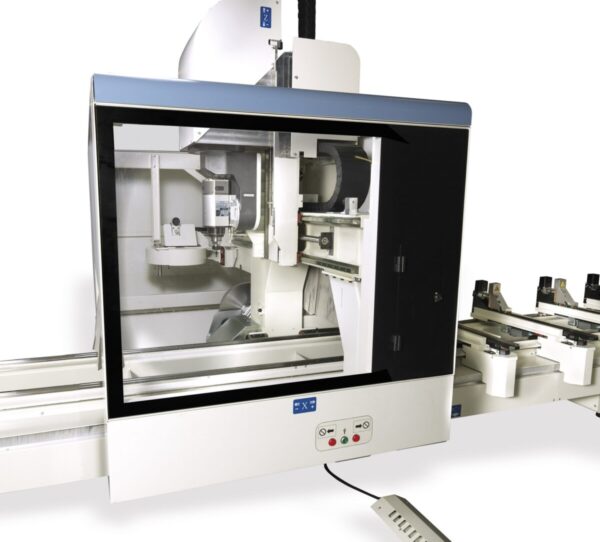

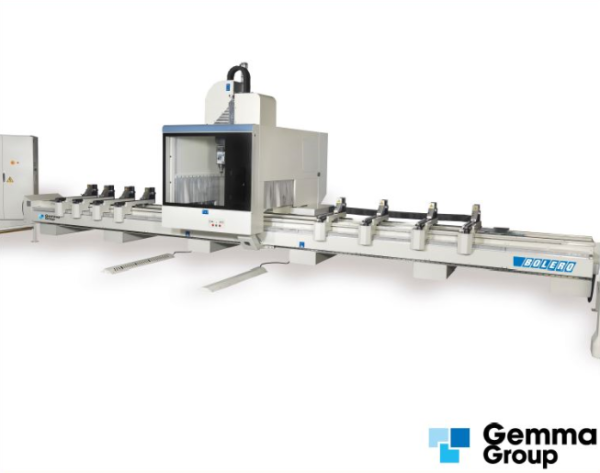

  • Floor-type vertical spindle machining center with bridge type gantry assembly, with 5 axis controlled by CNC, able to work on extruded aluminium, light alloys, PVC and iron.

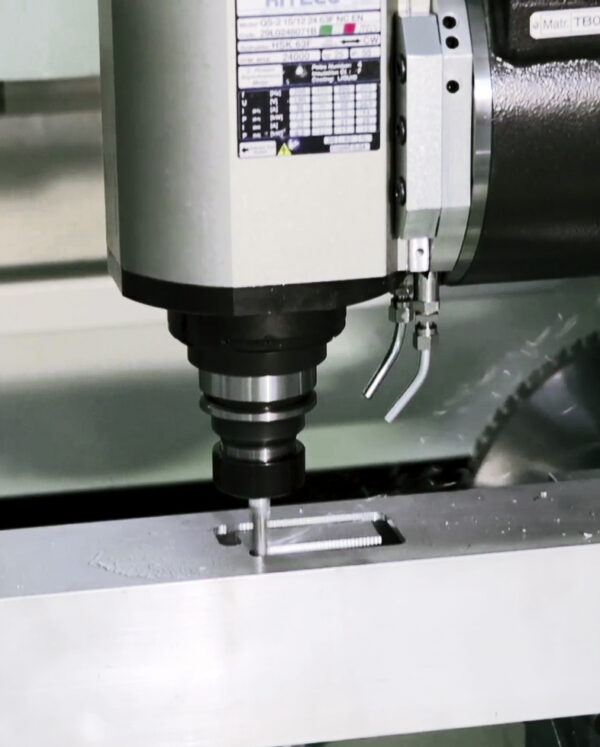

  • The machine is fitted with an electric-spindle (15kw, 24.000 rpm) with shank according with HSK63 rule, preset for an automatic tool change.

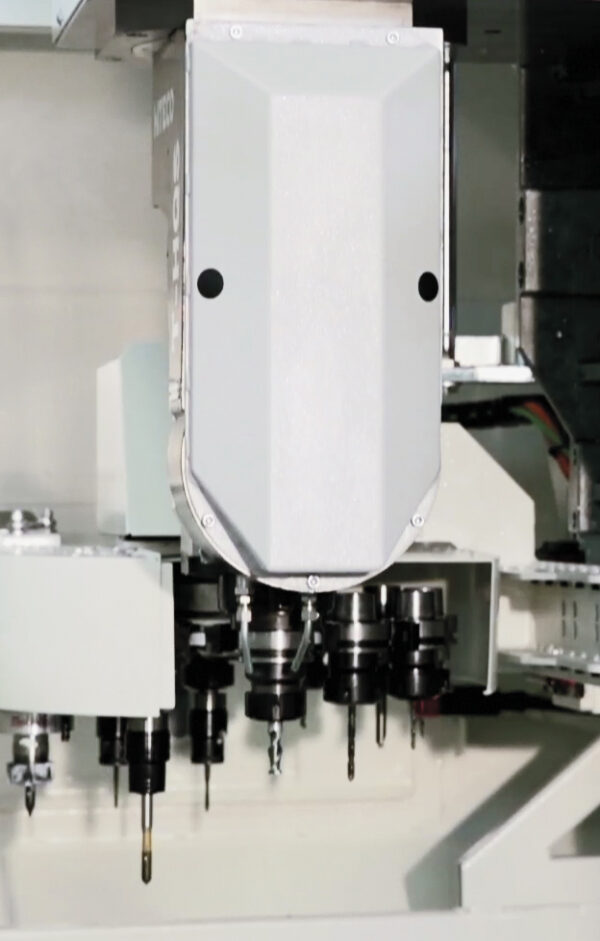

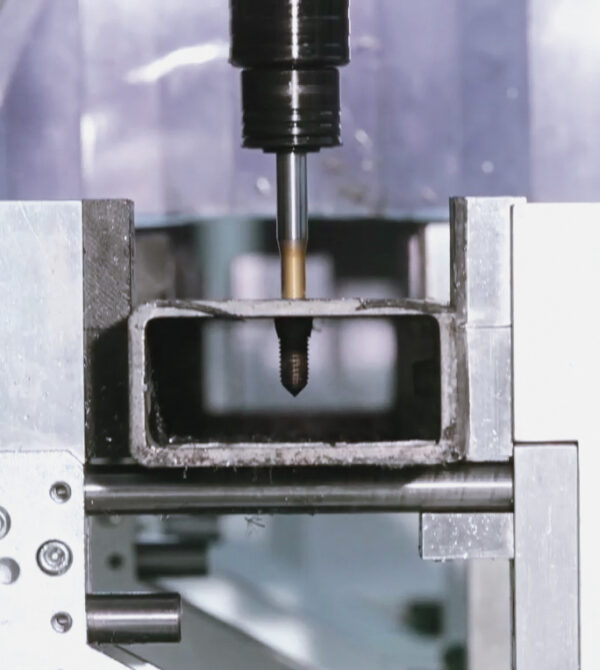

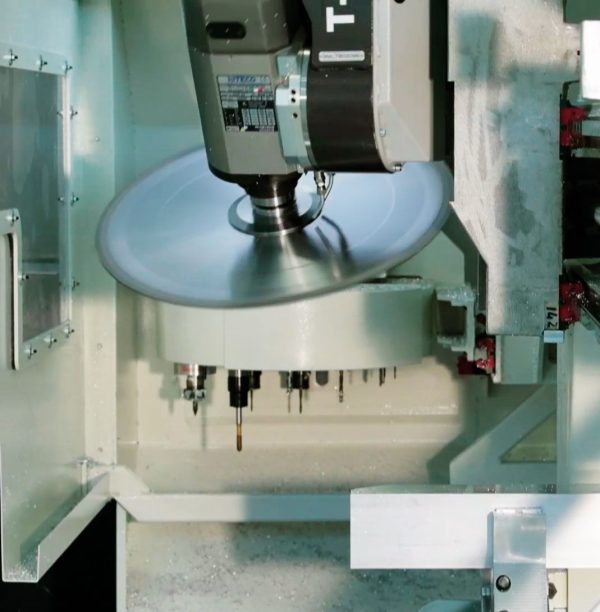

  • The tool magazine, fixed on the mobile upright, can store till 12 tools to drill, to mill, to thread and to endmilling (milling cutter max Ø300mm).

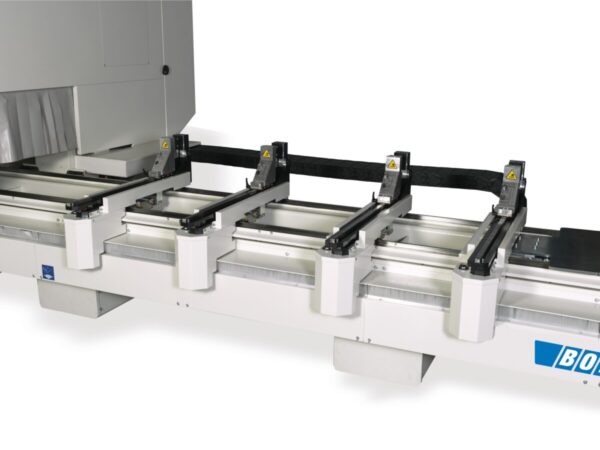

  • Equipped with 8x standard automatic clamps. Kit lubrifications by micro drop with pure oil. Light curtain system.

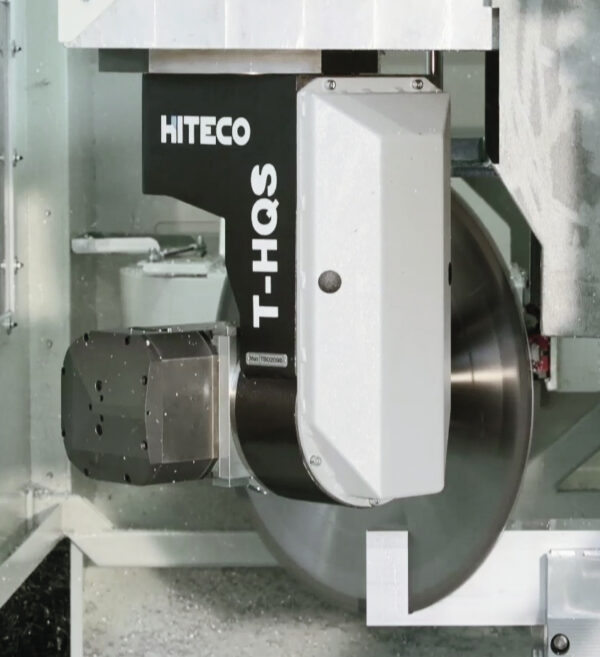

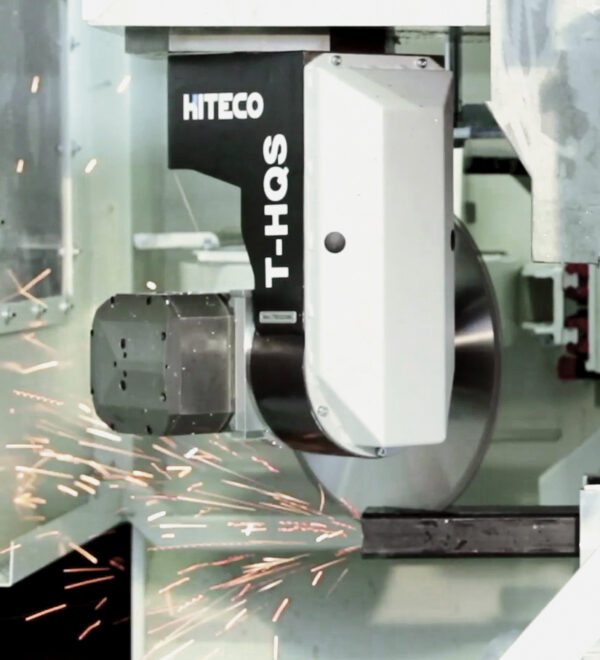

  • SPINDLE’S AXIS (A) CAN BE POSITIONED ELECTRONICALLY AT EVERY DEGREE INCLUDED IN 270° ±135° AT THE SAME TIME CAN BE TURNED (C) ON 320°.
