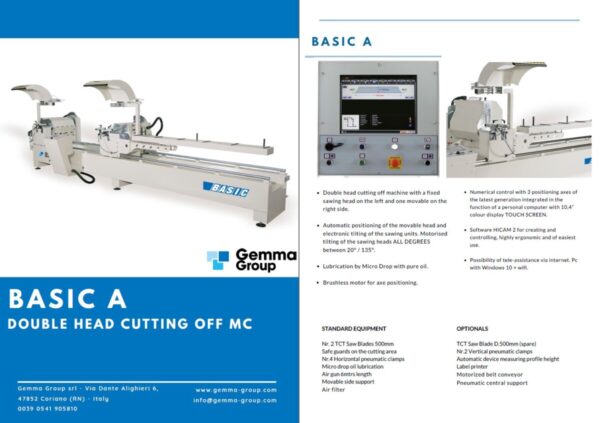

GEMMA – Basic A – Double Head Cutting Machine
Specifications
| Make | GEMMA |
|---|---|
| Model | Basic A |
Description

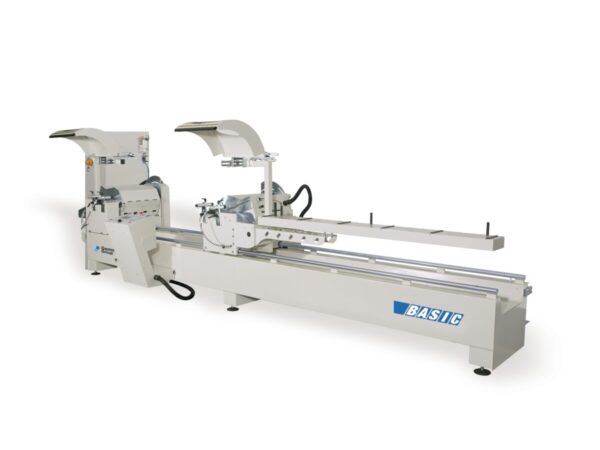

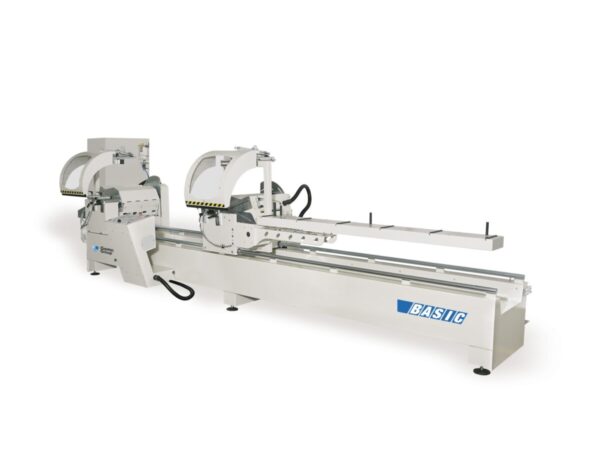

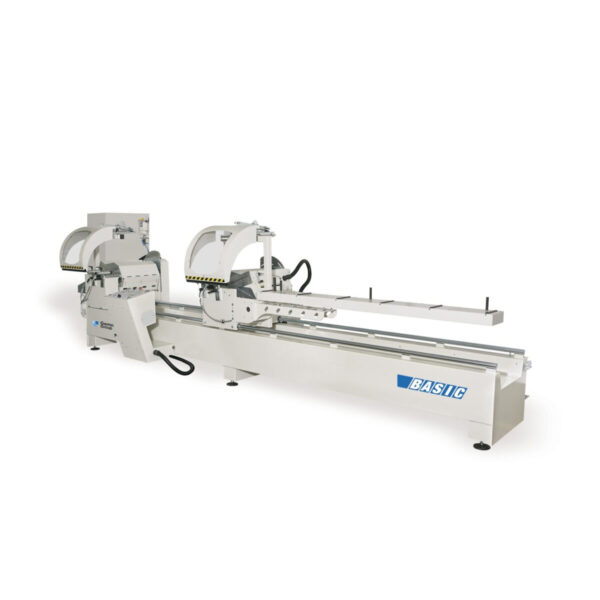

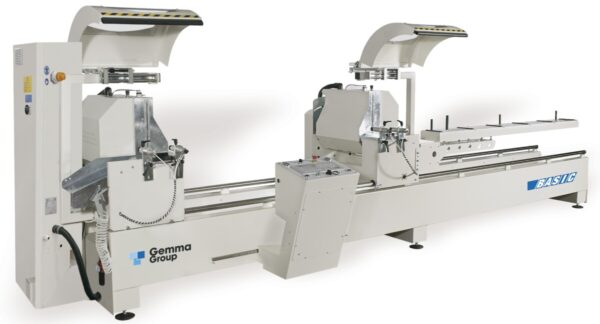

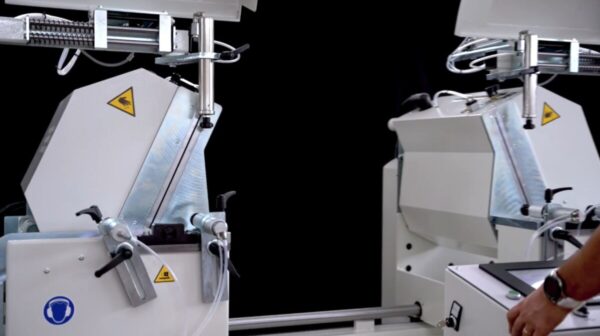

Double-head cutting machine with 500 mm front blades. Electro-welded steel base.
Fixed left cutting unit, mobile right unit with automatic movement controlled by software.
Feed roller conveyor combined with the moving head.

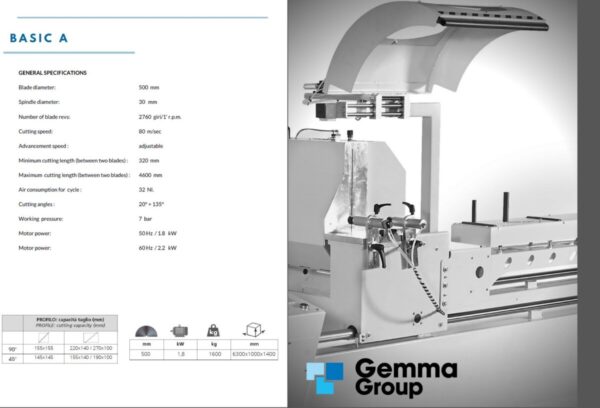

Technical Data

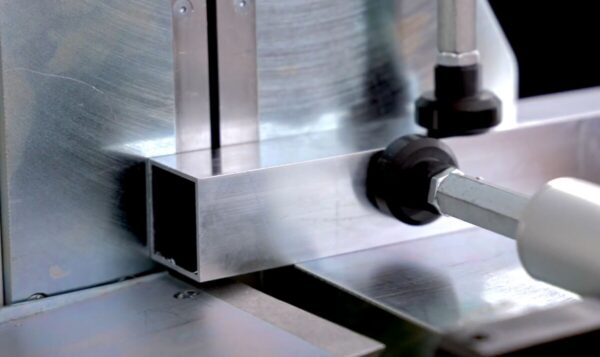

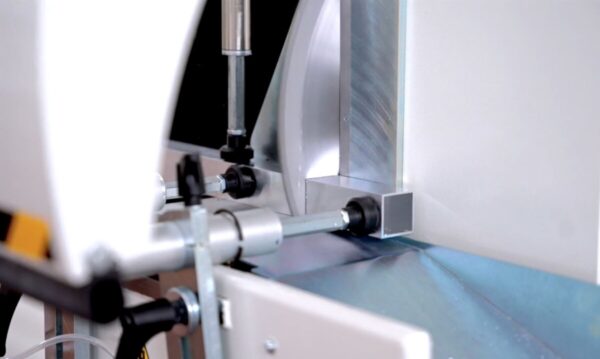

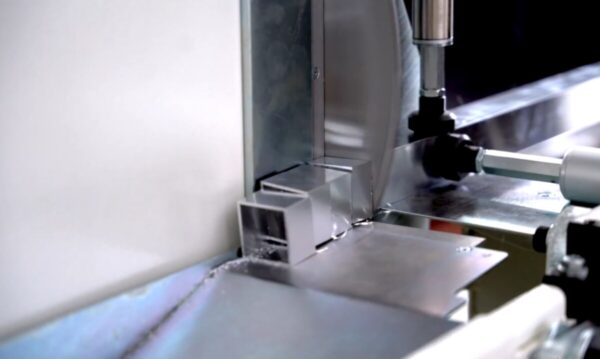

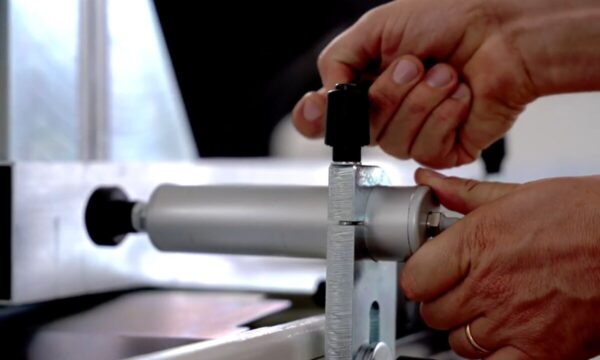

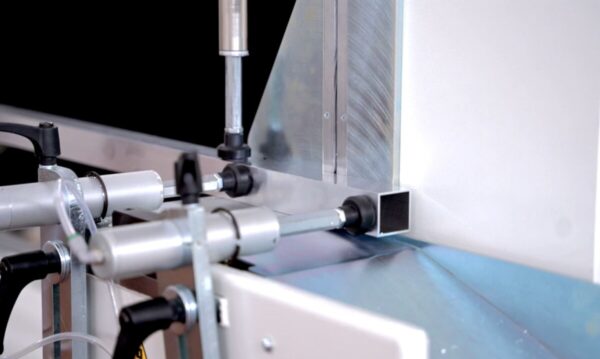

- 4 horizontal pneumatic clamps.

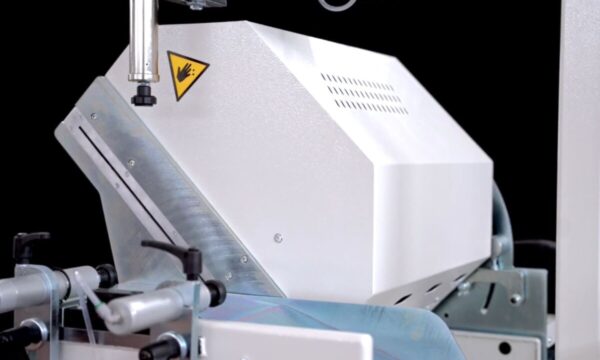

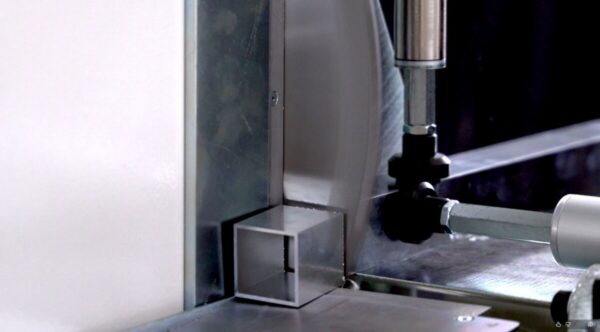

- Cutting units driven by 1.8 kW motors at 2,800 rpm and equipped with 2 500 mm blades.
- Micro-drop cutting lubrication.
- X-axis travel: 4,600 m. Axis movement on ground guides.
- Cutting angle inclinations at 20°/45°/90°/135° with electronic adjustment.

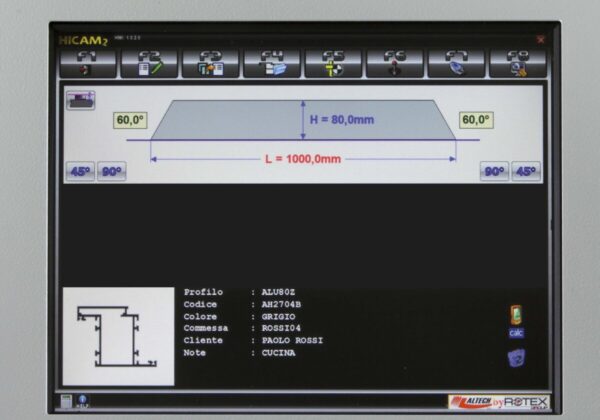

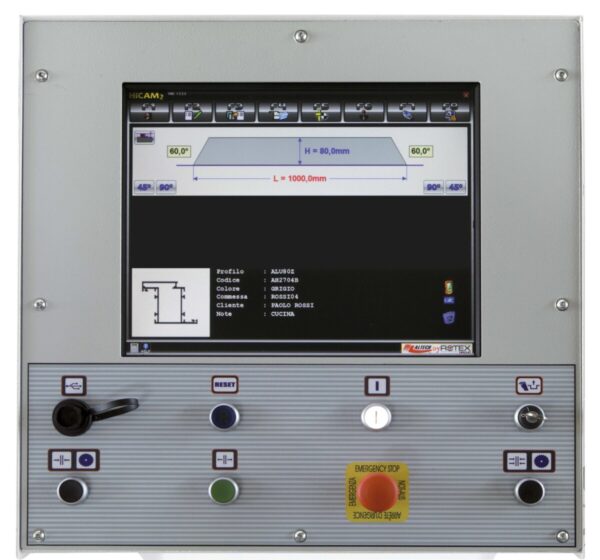

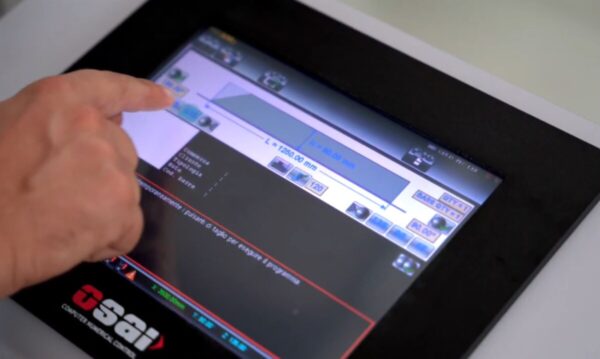

- Operator interface on PC-Windows equipped with 10.4” color touch-screen.

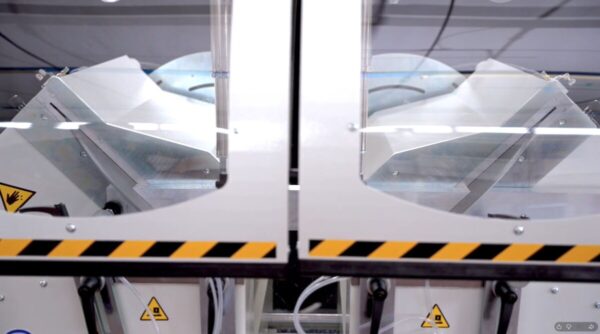

- The machine is equipped as standard with safety and protection devices in compliance with CE regulations.
