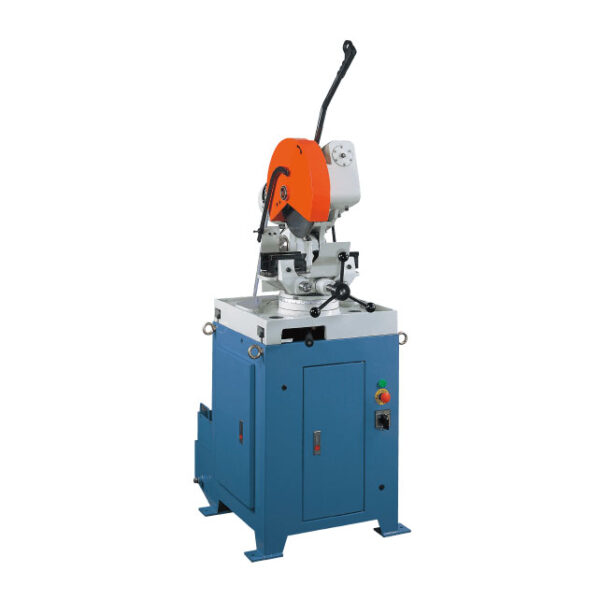

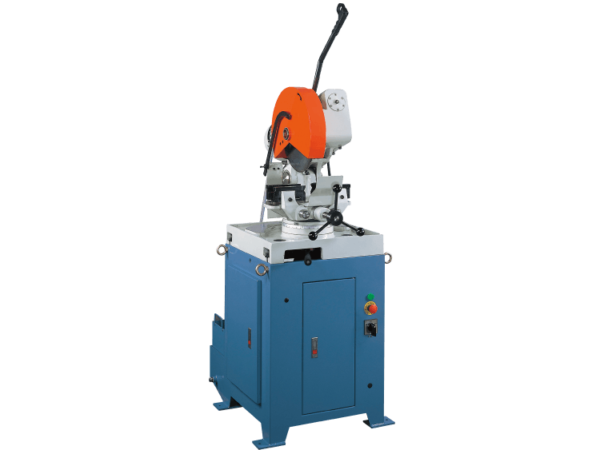

FONG HO – FHC-350D – Manual Circular Cold Saw

Specifications

Description

FONG HO – FHC-350D – Manual Circular Cold Saw

Features:

• Manual operation.
• Double vises.
• Sawblade HSSØ250 ~ Ø350mm,Ø350mm(standard).
• 2 Speeds.
• Movable guard (optional).

Standard Equipment:

• Motor, switch, complete cooling system, adjustable stop, service tools.

Optional Equipment:
Saw blade, cutting fluid.

3 models available in the FHC-350 Series

• MODEL FHC-350D (manual type)
• MODEL FHC-350P (pneumatic type)
• MODEL FHC-350SA (semi-automatic type)

—–

Main Drive Motor 3HP/2HP (4/8 Pole) 50/60 HZ or
4HP/3HP (2/4 Pole) 50/60 HZ

Blade Speeds
L Type:50HZ 44/22 RPM, 60HZ 52/26 RPM(opt.)
M Type:50HZ 58/29 RPM, 60HZ 70/35 RPM(std.)
H Type:50HZ 86/43 RPM, 60HZ 105/52 RPM(opt.)

Head Swivel 90°/45°
Clamping Vise Double
Coolant Pump Motor 40W

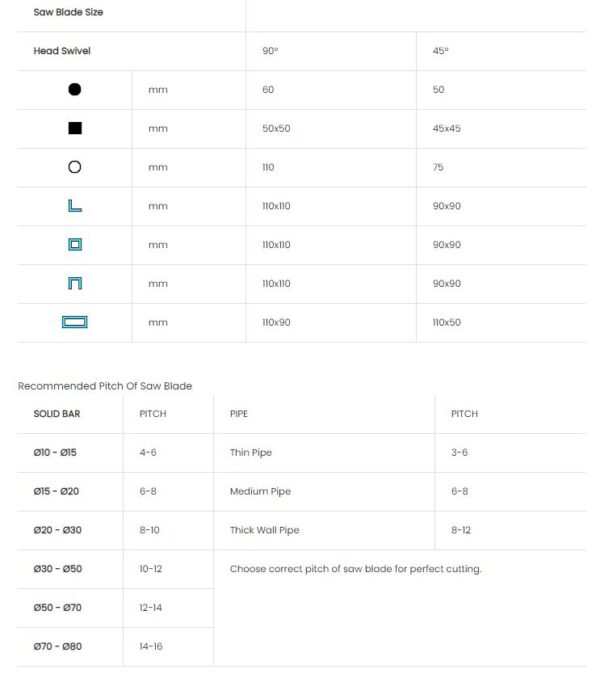

Saw Blade Size
Diameter (mm) HSS Ø250-Ø350(10″-14″) std. Ø350
Bore (mm) Ø32
Pin Holes (mm) 2xØ11xPCD 63

Air Pressure (Consumption) —
Hydraulic Pump Motor —
Operation Pressure —
Machine Dimensions (LxWxH) (mm) 1400x1050x1900
Packing Dimensions (LxWxH) (mm) 750x1060x1510
Packing Dimensions (LxWxH) (inch) 30″x42″x60″
Net Weight 300 kgs (660 lbs)
Gross Weight 360 kgs (792 lbs)
