This product is currently out of stock and unavailable.

Specifications

Model

Articulated Robot

Description

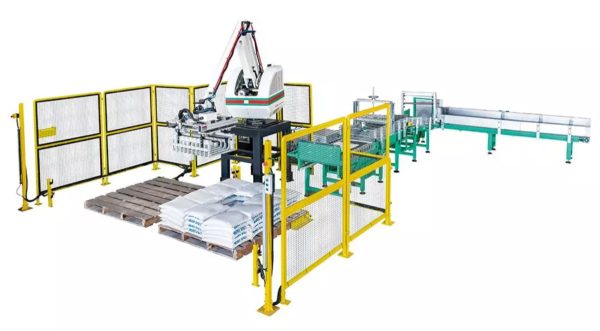

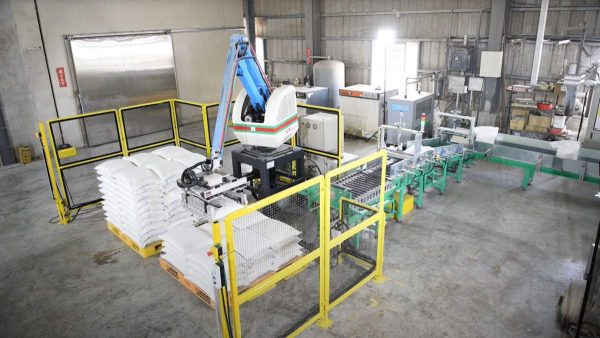

Articulated Robot, Robotic Palletizer, Bag stacking line

  • Stacking types and layers can be set as drsired.
  • Maximum weight of clamping : 9-50 kgs

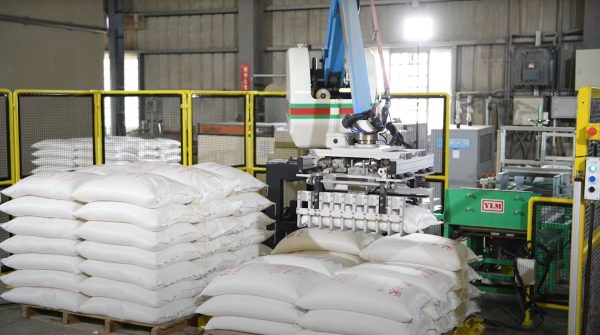

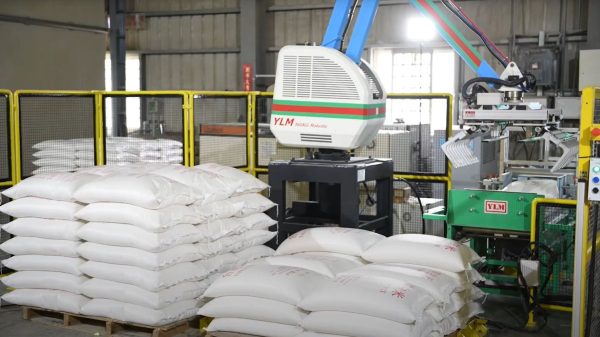

  • Designed for automatic stacking operations for various bagged products.
  • Stable clamping motion, smooth and fast stacking, reducing manpower requirements.

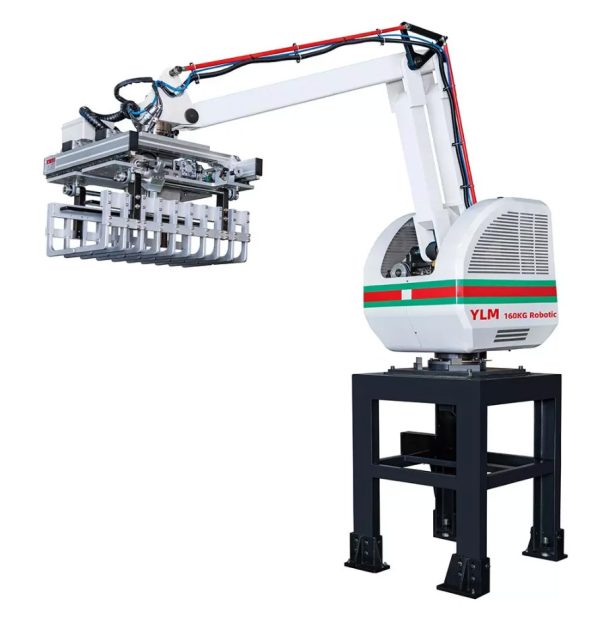

  • A robotic palletizer with 4-axis control
  • Robot arm rotating angle : 330 (°)

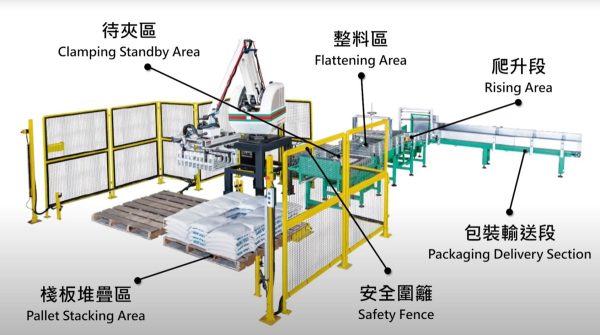

  • Equipped with automatic flattening device to ensure the stability of product stacking.
  • Designed for automatic handling ad stacking for various bagged products, such as rice, flour, cement, feed, fertilizer, and plastic pellets.

SPECIFICATION

ModelRP-160
Loading capacity160kg (350lbs)
Degree of freedom4 axes
Motion rangeZ-axis (vertical)2,400 mm (96”)
R-axis (longitudinal)1,500 mm (59.00”)
θ-axis (rotation)330 (°)
α-axis (robot arm rotation)330 (°)
MemoryProgrammable positions 120~400 MB
Power (without additional load from peripheral equipment)3.5KVA
Weight of robot (clamping jaw not included)700kg (1,544lbs)
